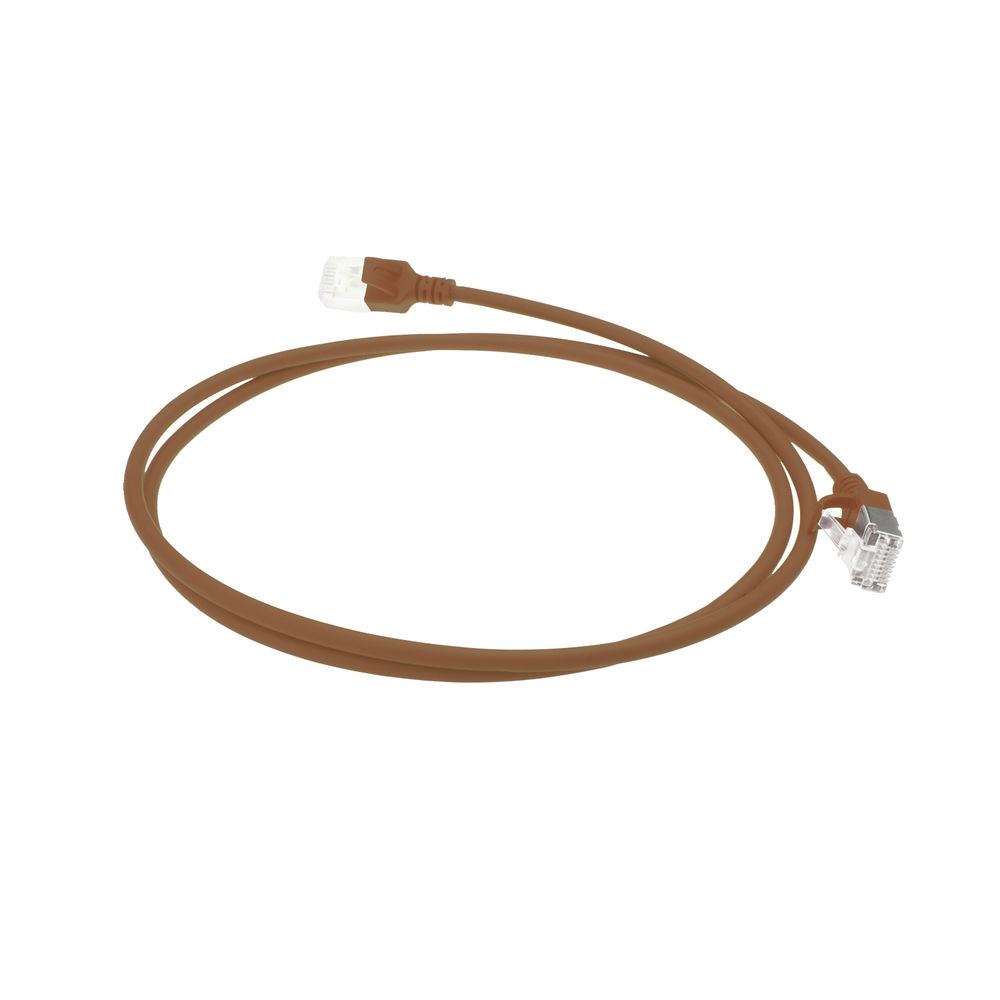

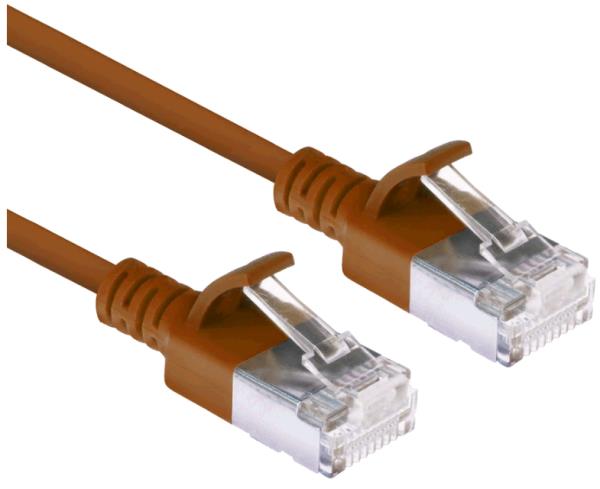

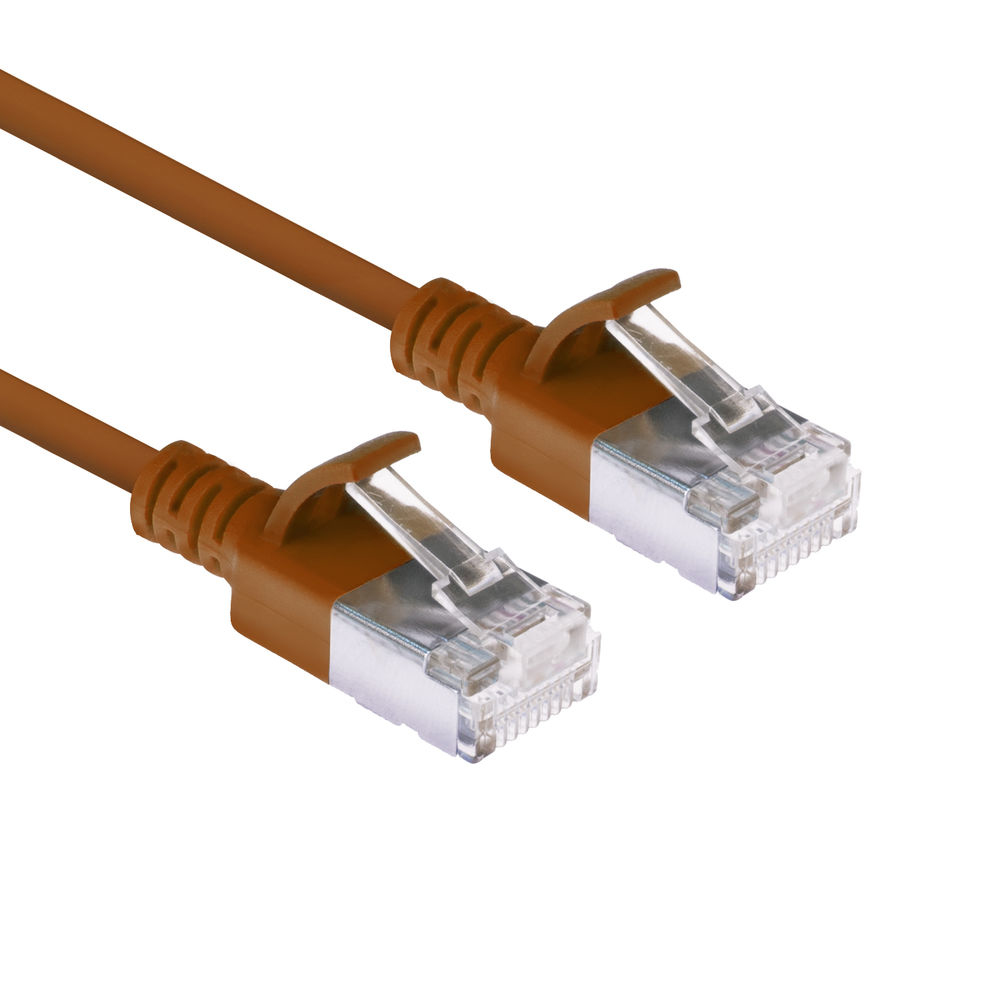

Patch Cable - CAT6A - LSZH U/FTP - 10m - Brown

Introduction

CAT6A U/FTP slimline datacenter ethernet cables are smaller in diameter (3.8mm vs 5.9mm) than regular CAT 6A patch cords. The bending radius is lower in comparison with regular patch cords. This results in a better airflow in the server rack/network cabinet.

Although, ISO/IEC and TIA standards describe the use of patch cords between 22 and 28 AWG, it is possible to use 32 AWG patch cables. This results in a higher attenuation, particularly at higher frequencies.

Features

Product colour

Grey

Cable length

10 m

Cable standard

Cat6a

Cable shielding

U/FTP (STP)

Connector 1

RJ-45

Connector 2

RJ-45

Connector 1 gender

Male

Connector 2 gender

Male

Connector 1 form factor

Straight

Connector 2 form factor

Straight

Connector contacts plating

Gold

Jacket material

Low smoke zero halogen (LSZH)

Conductor material

Copper

AWG wire size

32

Frequency

500 MHz

Snagless cable boot

Yes

Operational conditions

Operating temperature (T-T)

-25 - 75 °C
