Adderlink Dv Receiver Aldv100r

Introduction

TheALDV100Ris aReceiver Unit OnlyAV Digital HDMI Extender. For full system Transmitter and Receiver Units seeALDV100P AV Digital HDMI Extender Pair.

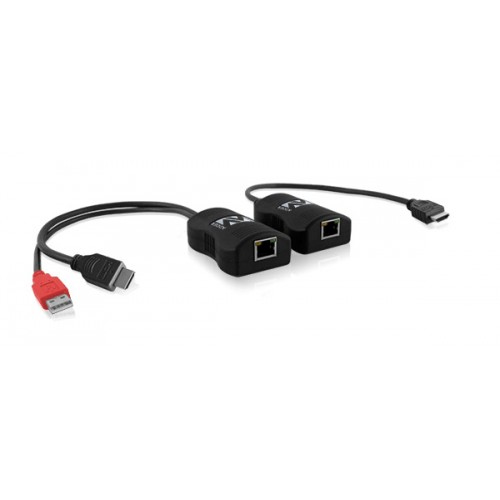

ADDERLink DV100 is an easy to install, highly compact video extender system that can transmit an HD video stream with audio over a single CATx cable. This enables you to locate your media playback hardware in a secure and temperature controlled environment. Thus your valuable systems are kept safely away from the display point environment whilst maintaining precisely the same user experience.
ADDERLink DV100 is ideally suited to the Digital Signage (DOOH - Digital Out-Of-Home) and Audio Visual (AV) industriesFeatures:Pixel Perfect Digital Video
ALDV100 uses an uncompressed communication system whereby the pixels of every frame are sent without loss.  Resolutions up to 1920x1200 @60Hz (WUXGA) are supported.  Additionally, the High-bandwidth Digital Content Protection (HDCP) of the HDMI standard  is supported.Up to 50 Meters over a Single CATx Cable
Video, audio and power all pass along a single cable, providing a maximum of 50 meters extension. The actual achievable extension distance is dependent upon the CATx cable type used and the number of connection breaks for patch panels and wall plates. Please see the table on reverse for details.Highly Energy Efficient - No External Power Supplies are required
The AdderLink DV100 is designed to be highly power efficient, using less than an eighth of the power required by some competing systems. By harvesting power from a standard USB socket, no external PSUs are needed and hence the support infrastructure required is kept to an absolute minimum.Digital AudioSupports eight channels of HDMI audio.Mix-n-Match
The whole AdderLink DV family of extenders share a common advantage of cross connection. The HDMI transmitters (ALDV100T) of the family can seamlessly be connected to the DVI-D receivers (ALDV120R) and vice versa.EDID Management
The system has intelligent EDID management to allow the true characteristics of the display to be passed back to the computer.Plug and Play
AdderLink DV100 extenders are delivered in a zero config state so you can connect their two units and start working with them straight away. There’s no need for drivers or software to be installed.Built to Last
Adder Technology have a well-earned reputation for creating products that perform well and stay the course. AdderLink DV100 is no exception and features tough, yet lightweight ABS enclosures to ensure they can easily withstand everyday treatment. The internal components and external connectors too are selected for their reliability in addition to their performance characteristic.

Technical details

Harmonized System (HS) code

84733080
