ADDER

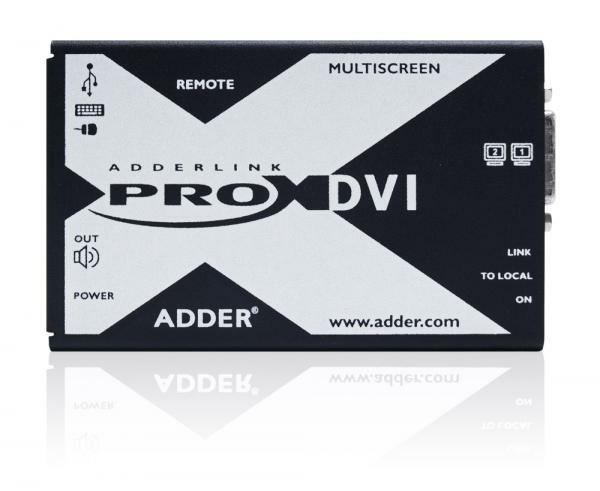

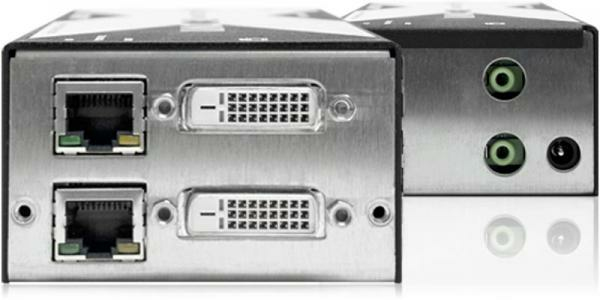

Adderlink X-DVI Pro Ms - Two Single Link DVI Or Two Hdmi 1.3a Video Streams

Adderlink X-DVI Pro Ms - Two Single Link DVI Or Two Hdmi 1.3a Video Streams

Part Number:
X-DVIPRO-MS2
Language:
UK
 Without VATWith VAT
Base Price:€1.589,30€1.923,05
Total:€1.589,30€1.923,05

Introduction

The ADDERLink X-DVI PRO-MS Dual Head extender distributes uncompressed digital video with audio over twin cables to multiple screens up to 50m away, with USB 2.0 connection to interface with a range of devices.

Part of the ADDERLinkฎ X-DVI PRO range, the high-performance X-DVI PRO-MS digital KVM (Keyboard, Video and Mouse) and USB extender enables you to locate your critical computing hardware in a secure and temperature controlled environment. Uncompressed digital video and audio is distributed in real-time and with zero latency to multiple screens, allowing the user to maintain an at-the-PC experience. The USB 2.0 interface ensures compatibility with a wide range of USB devices. It can transmit two Single Link DVI video streams, USB 2.0 and analog audio up to 50m over a twin CATx cables to multiple screens.

Delivers uncompressed digital video with audio
USB 2.0 Low and Full speed connection: to interface with a range of devices
Exact content seen on the local monitor is distributed: up to 50m over a twin CATx cable
Energy efficient design: external power supplies are not needed
X-DVIPRO-MS: enables dual screens at 1920 x 1200 @ 60Hz maximum resolution

Features

Type

Transmitter & receiver

Connectivity technology

Wired

Maximum transfer distance

50 m

Cable types supported

Cat5e,Cat6a,Cat7

Maximum digital resolution

1920 x 1200 pixels

Product colour

Black

Material

Metal

USB 2.0 ports quantity

5

Certification

CE, FCC

Transmitter

Transmitter video port type

DVI-D

Number of displays supported

2

Receiver

Receiver local video port type

DVI-D

Receiver local keyboard/mouse port type

USB

Power

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Input current

0.4 A

AC adapter output voltage

5 V

Operational conditions

Operating temperature (T-T)

0 - 40 ฐC

Weight & dimensions

Transmitter width

12 cm

Transmitter depth

7.5 cm

Transmitter height

4.8 cm

Transmitter weight

500 g

Receiver width

12 cm

Receiver depth

7.5 cm

Receiver height

4.8 cm

Receiver weight

500 g

No options for this product
.
