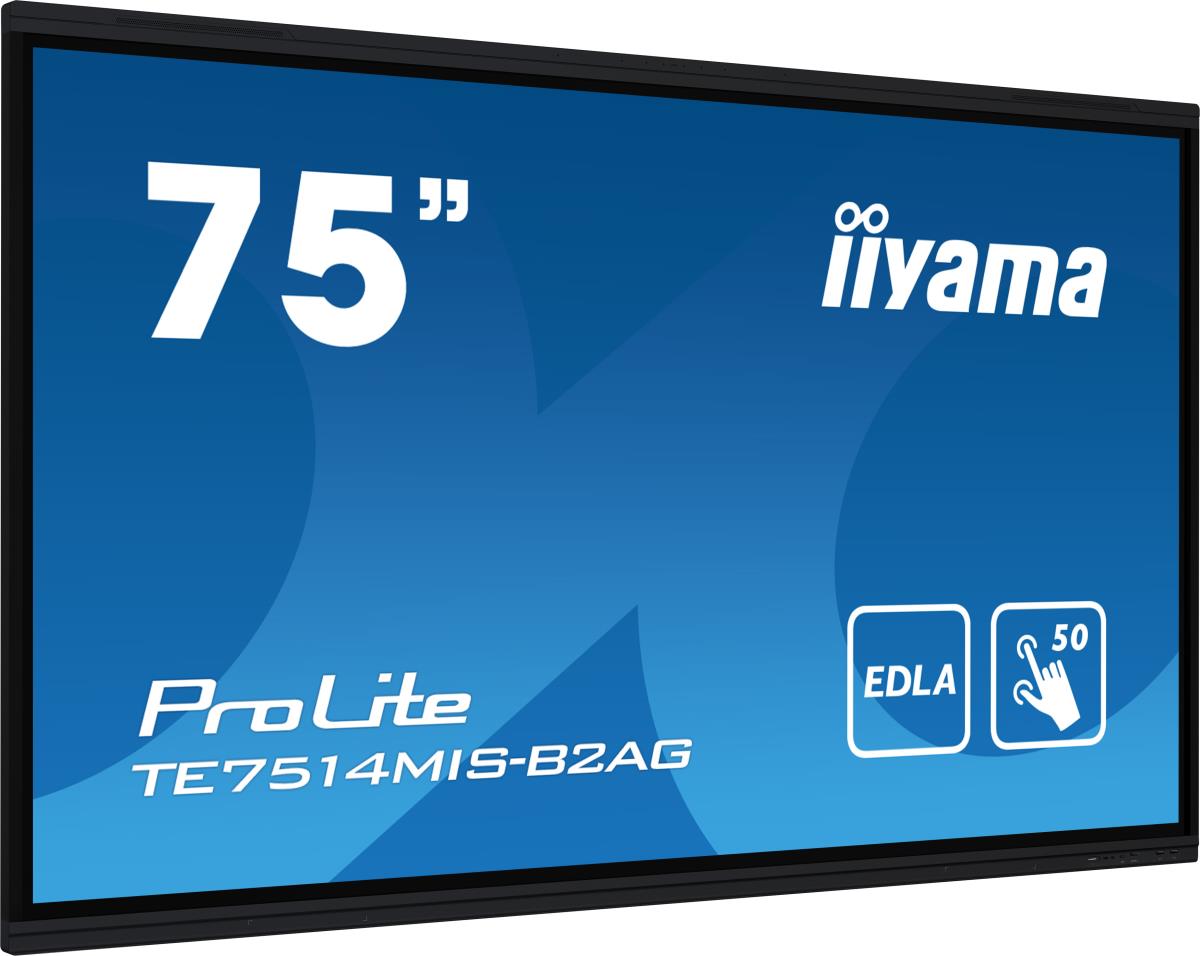

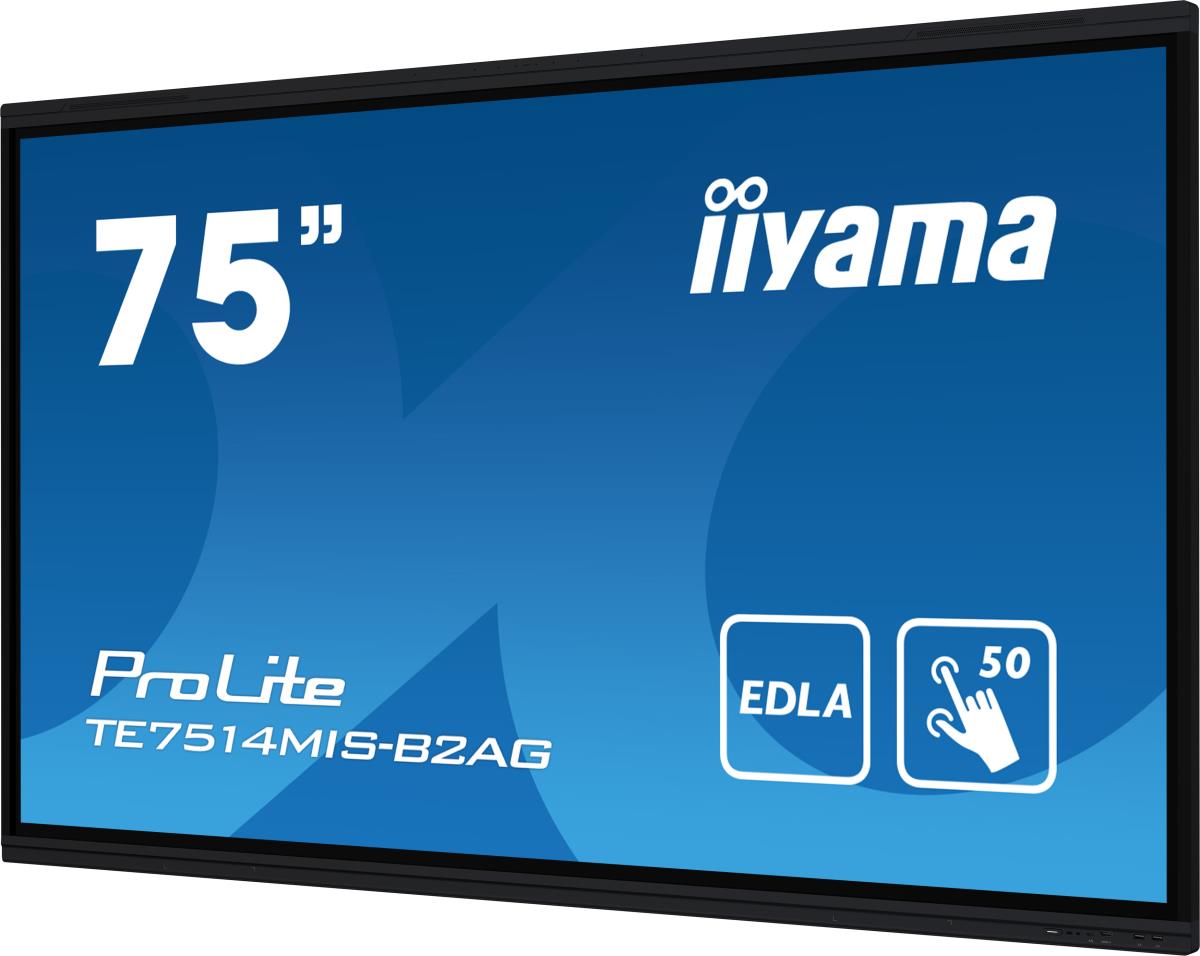

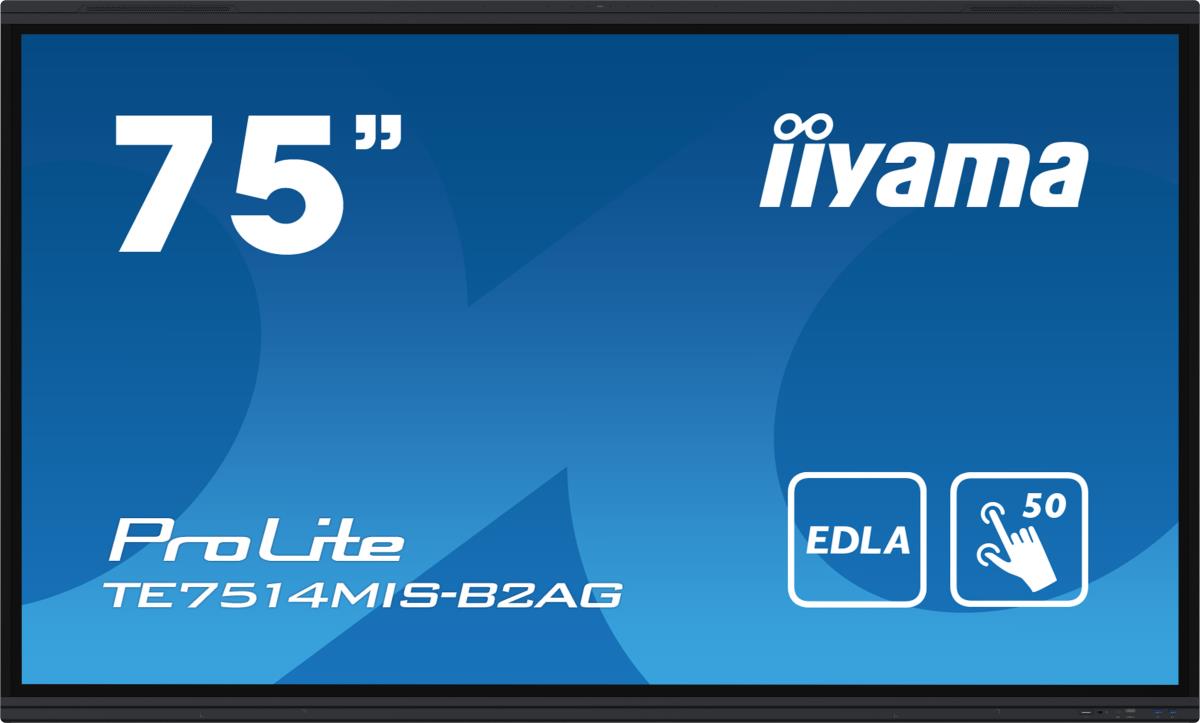

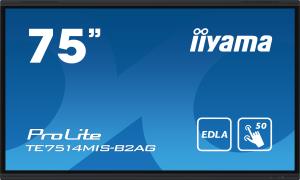

Large Format Display - ProLite TE7514MIS-B2AG - 75in Touch - 3840x2160 (UHD) - Black

Introduction

65" Google EDLA Certified Interactive display for seamless integration and collaboration in education and enterprise
The TE6514MIS-B2AG is a visionary 4K UHD Google EDLA Certified interactive display that sets a new standard for ingenuity and performance. Crafted with precision, it features a Zero Airgap LCD screen that eradicates parallax, alongside the accurate PureTouch-IR+ with Palm Rejection, ensuring seamless interaction. Powered by iiWare 12E with Android 13 and equipped with WiFi connectivity, it effortlessly integrates into your ecosystem, supported by the iiyama (DMS) Device management platform.

Experience unparalleled wireless sharing capabilities with the intuitive iiyama Share and EShare app, facilitating seamless brainstorming and effective collaboration within your enterprise or educational institution.

With its innovative 4K Interface and customizable User Profiles, the TE6514MIS-B2AG offers a personalized experience, granting easy access to bespoke applications and Cloud Drives. Adapted to thrive in bustling hybrid environments, it becomes a tailored solution for diverse user needs, revolutionizing collaboration, communication, and engagement.

Transforming modern workplaces, educational realms, and dynamic meeting spaces, this display emerges as an essential cornerstone, nurturing progress and connectivity beyond boundaries.

Google EDLA Certified
Google Enterprise Device License Agreement allows Google apps, accounts, files, and collaborative tools to be easily accessed directly from the Google EDLA certified iiyama displays, offering seamless integration with the Google ecosystem and the entire Microsoft 365 suite for enhanced user experience, productivity, and collaboration in all environments, especially the education and enterprise sectors alike.

PURETOUCH-IR+
The state-of-the-art PureTouch-IR+ technology ensures accurate and precise touch responses, enabling effortless interaction and annotation.

iiyama DMS
iiyama DMS provides organizations with a convenient and fast unified management solution for terminal equipment, builds an efficient and real-time equipment management system, helps digitize the campus/office estate environment and makes device management ultra convenient. iiyama DMS is committed to maintaining compliance with GDPR.

iiWare 12E
Empower your presentations with iiWare 12E, featuring Note, Browser, Cloud Drive via an intuitive and user-friendly software that allows you to effortlessly manage, customize, and access various applications with ease.

iiyama Share
Connect up to 9 devices and easily share, stream and edit content from your device to your interactive display and vice versa, back to your laptop, tablet or phone. iiyama Share supports AirPlay, Chromecast and Miracast.

Built-in speakers & microphone
The high quality built-in 8 Array Microphone and Dual Directional Speakers support conferencing configurations with ultra clear sound and 8m voice pick-up.

USB-C Connection
Delivers the latest in video, audio and Touch signal, all through one port and even charges your device with 100W power delivery.

Display

Panel type

VA

Display diagonal

190.5 cm (75")

Display technology

LCD

Display resolution

3840 x 2160 pixels

Display brightness

435 cd/m²

HD type

4K Ultra HD

Touchscreen

Yes

Touchscreen technology

PureTouch-IR

Number of simultaneous touchpoints

50

Multi-touch

Yes

Number of simultaneous touchpoints (Android)

40

Native aspect ratio

16:9

Response time

6.5 ms

Contrast ratio (typical)

5000:1

Contrast ratio (dynamic)

5000:1

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Display number of colours

1.07 billion colours

Pixel pitch

0.43 x 0.43 mm

Active display area (W x H)

1650 x 928 mm

Display diagonal (metric)

189.3 cm

Horizontal scan range

30 - 135 kHz

Native refresh rate

60 Hz

Haze rate

25%

Glass thickness

3 mm

Ports & interfaces

HDMI ports quantity

5

HDMI version

2.0

HDMI input ports quantity

4

HDMI output ports quantity

1

DisplayPorts quantity

1

DisplayPorts in

1

DisplayPort version

2.1

USB port

Yes

USB ports quantity

8

USB connector type

USB Type-C

USB Power Delivery

Yes

USB Power Delivery up to

100 W

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

2

Ethernet LAN data rates

10,100,1000 Mbit/s

Wi-Fi

Yes

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Infrared data port

Yes

Audio

Built-in speaker(s)

Yes

Number of built-in speakers

4

RMS rated power

52 W

Design

Product design

Digital signage flat panel

Placement supported

Indoor

Orientation

Horizontal

Product colour

Black

Screen shape

Flat

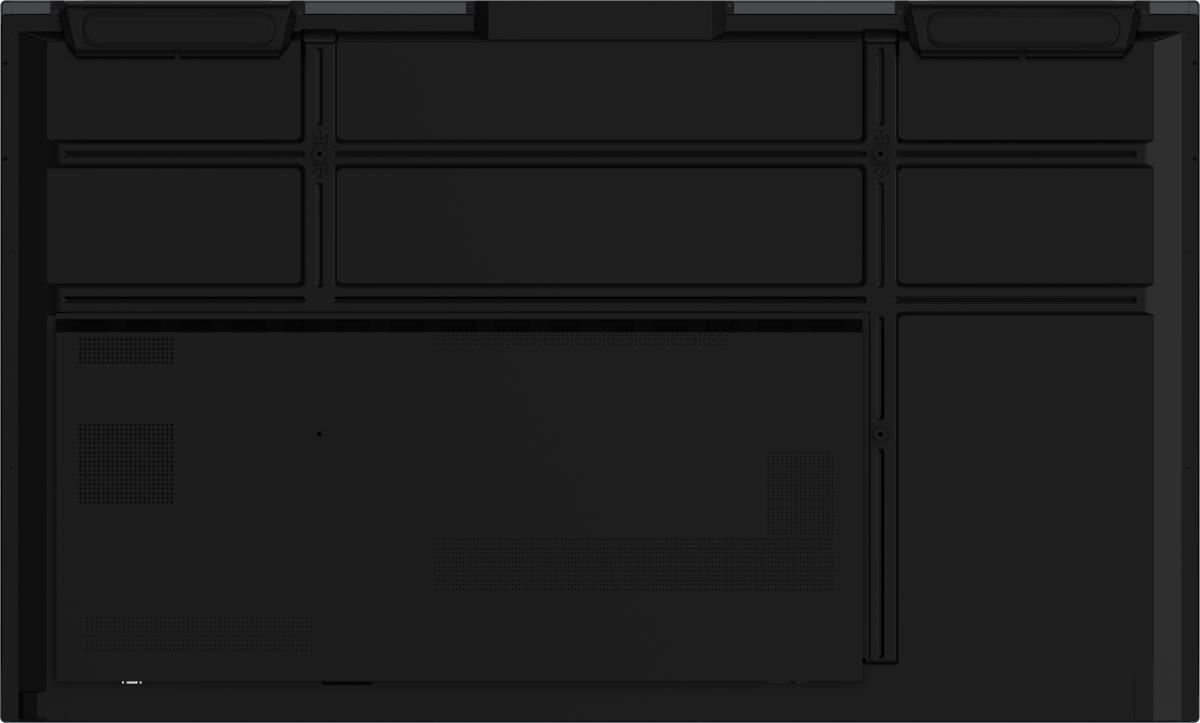

VESA mounting

Yes

Panel mounting interface

800 x 400 mm

Bezel width (bottom)

4.1 cm

Bezel width (side)

1.65 cm

Bezel width (top)

1.65 cm

Performance

Purpose

Universal

On Screen Display (OSD)

Yes

Number of OSD languages

14

On Screen Display (OSD) languages

CAT, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Polish, Russian, Swedish

Operating hours (hours/days)

24/7

HDCP

Yes

Mean time between failures (MTBF)

50000 h

Power

Power consumption (typical)

209 W

Power consumption (standby)

0.5 W

Power consumption (off)

0.3 W

Energy efficiency class (SDR)

G

Energy consumption (SDR) per 1000 hours

197 kWh

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Energy efficiency scale

A to G

Computer system

Computer system

Yes

Built-in processor

Yes

Processor manufacturer

ARM

Processor architecture

ARM Cortex-A76+Cortex-A55

Processor cores

4

Internal memory

8 GB

Operating system installed

Android

Operating system version

13

Weight & dimensions

Display width

1709 mm

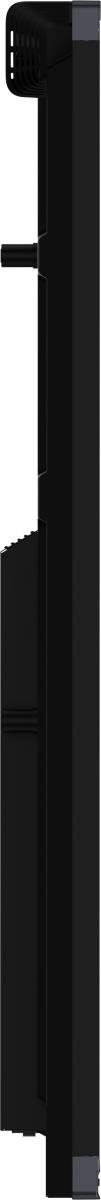

Display depth

86 mm

Display height

1031 mm

Display weight

51.5 kg

Packaging data

Package width

1863 mm

Package depth

225 mm

Package height

1148 mm

Package weight

60.8 kg

Packaging content

Remote control included

Yes

Batteries included

Yes

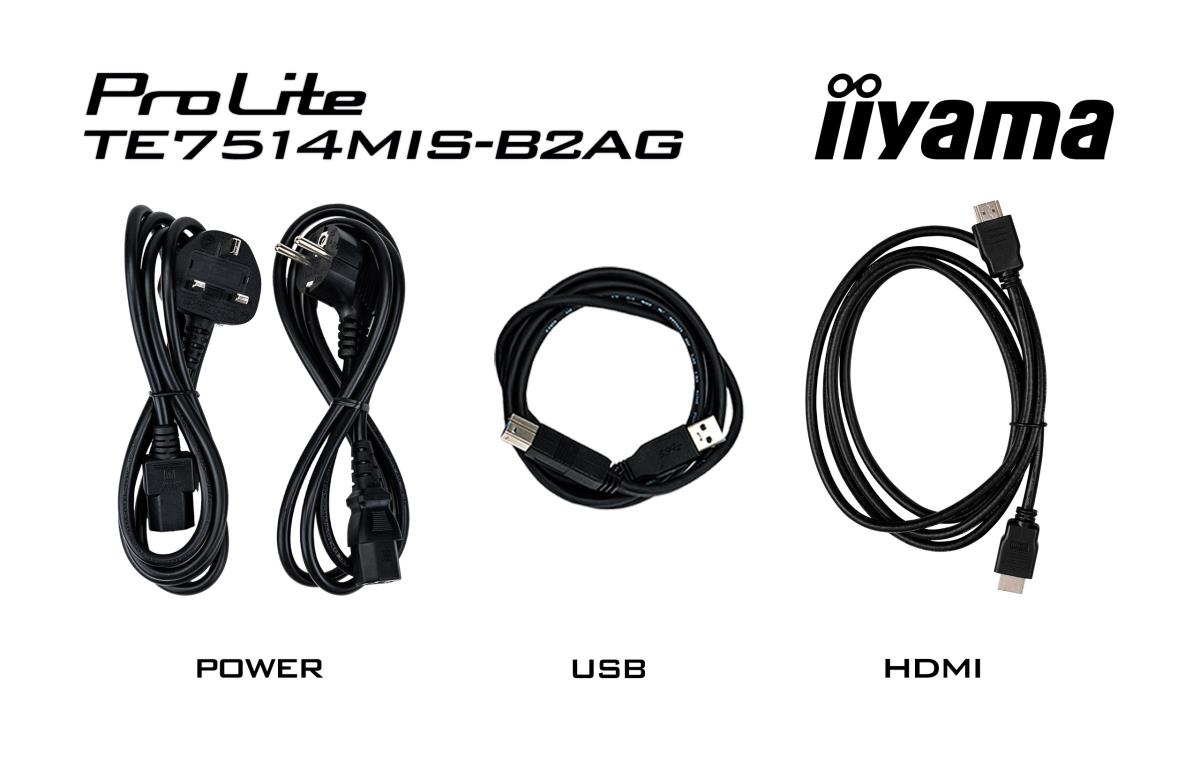

Cables included

AC, HDMI, USB

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Certificates

Certification

CB, CE, TÜV-Bauart, EAC, RoHS, WEEE, REACH
