Docking Station - Hybrid Universal USB 3.0 - USB-c USB-a Dock - Dual Hdmi/dp

Introduction

"Universal Hybrid Dock | USB Type-C & USB Type-A | Dual 4K 60Hz HDMI & DisplayPort

Transition from the legacy USB-A (USB 3.0) to the new USB-C with this universal laptop docking station for USB-C and USB-A laptops. The USB 3.2 Gen 2 (10Gbps) Type-C dock features dual HDMI and/or DisplayPort monitors, fast-charge, six USB Type-A downstream peripheral ports, and headset audio.

Flexible Monitor Connections

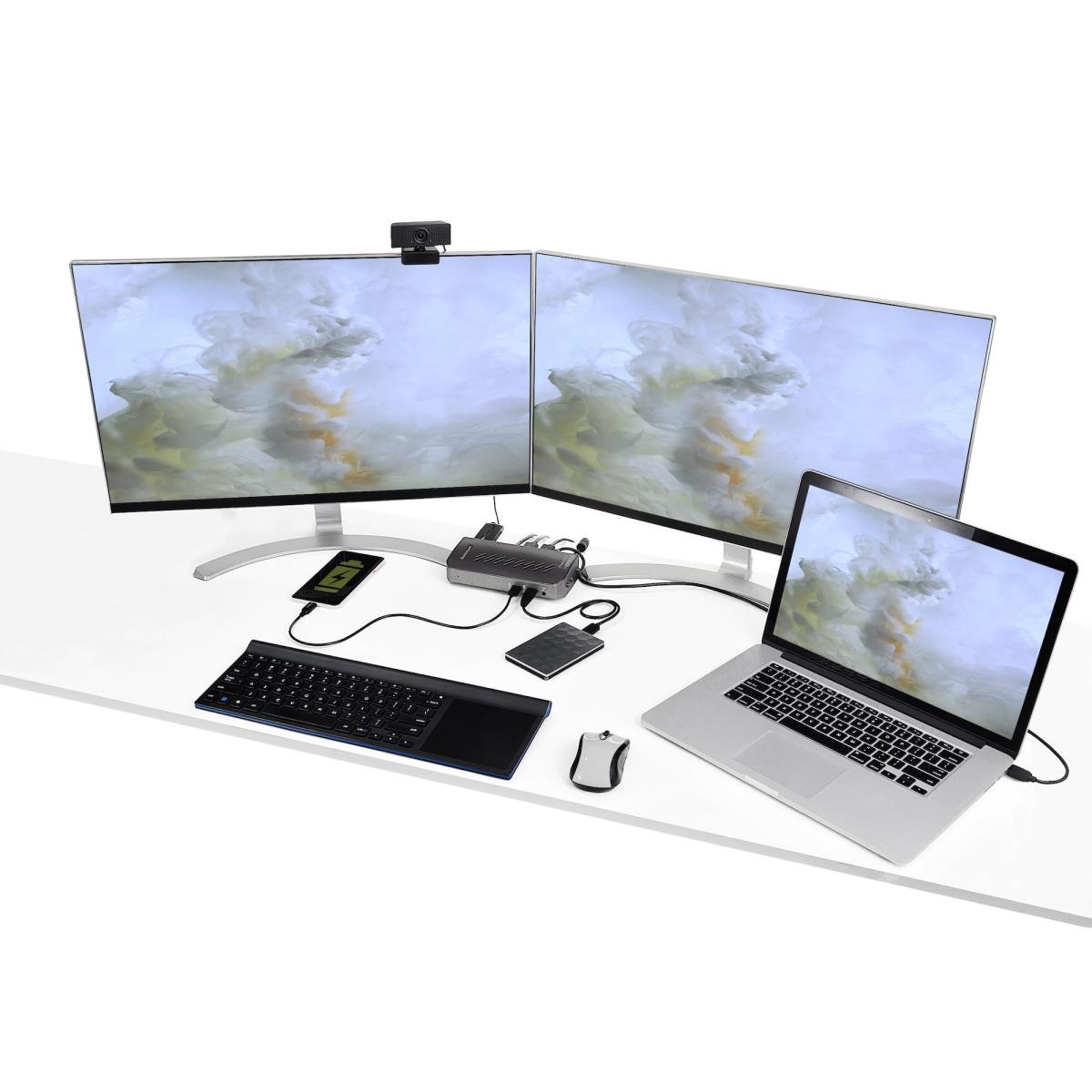

This is a dual 4K60Hz video docking station with support for both Ultra HD DisplayPort and/or HDMI monitors that lets you configure your video connections to best suit your needs.

Dual 4K DisplayPort | Up to 4096 x 2160p @ 60Hz

Dual 4K HDMI | Up to 4096 x 2160p @ 60Hz

Single 4K DisplayPort + Single 4K HDMI | Up to 4096 x 2160p @ 60Hz

Single 5K DisplayPort* | Up to 5120 × 2880

*Requires monitor support for 5K using two DP ports

Certified for Maximum Compatibility & Performance

This docking station is fully certified to meet top industry standards for DisplayLink (video connections) certification to guarantee the highest quality, performance, and compatibility.

Flexible Setup Options

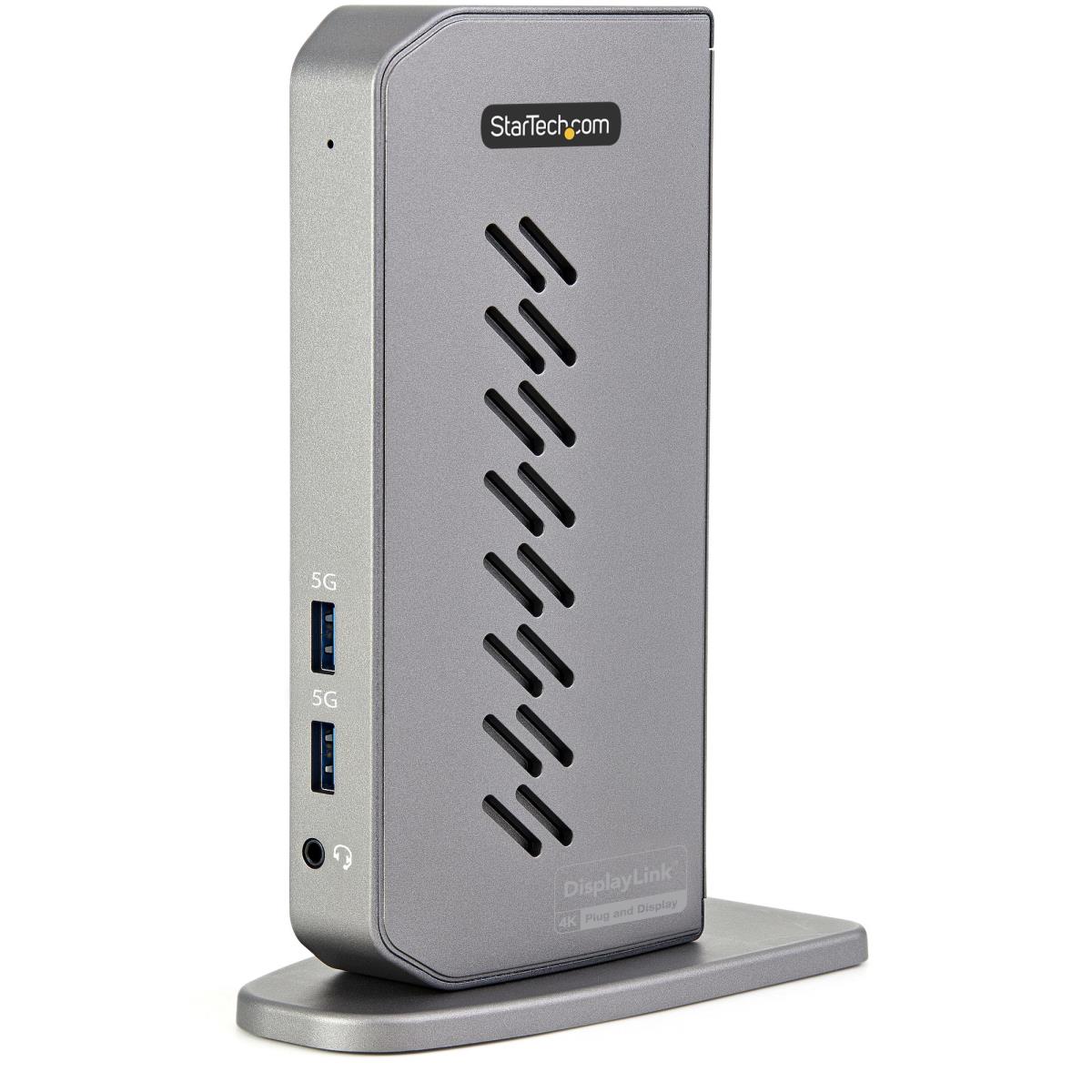

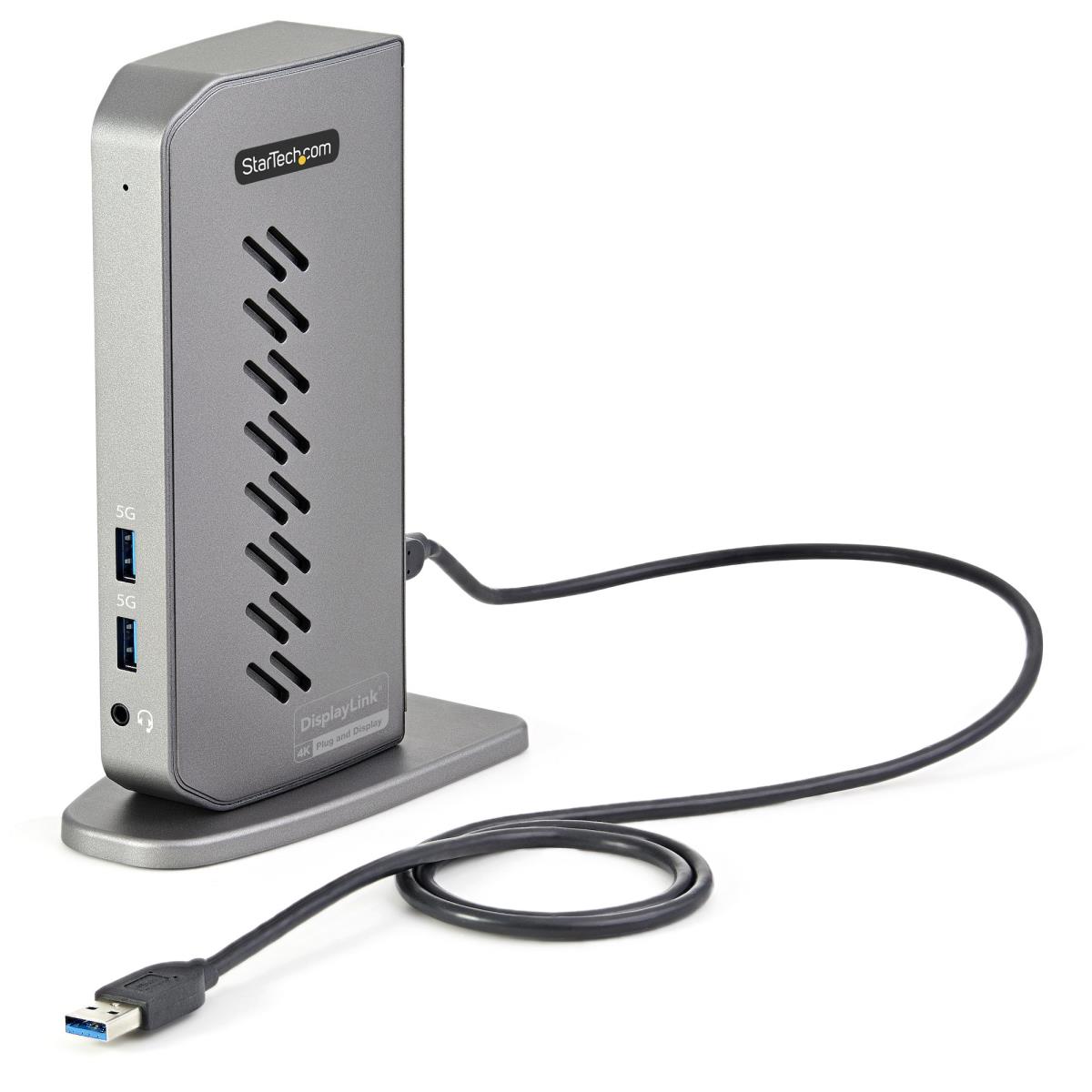

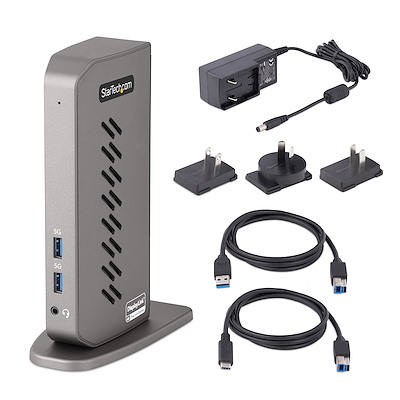

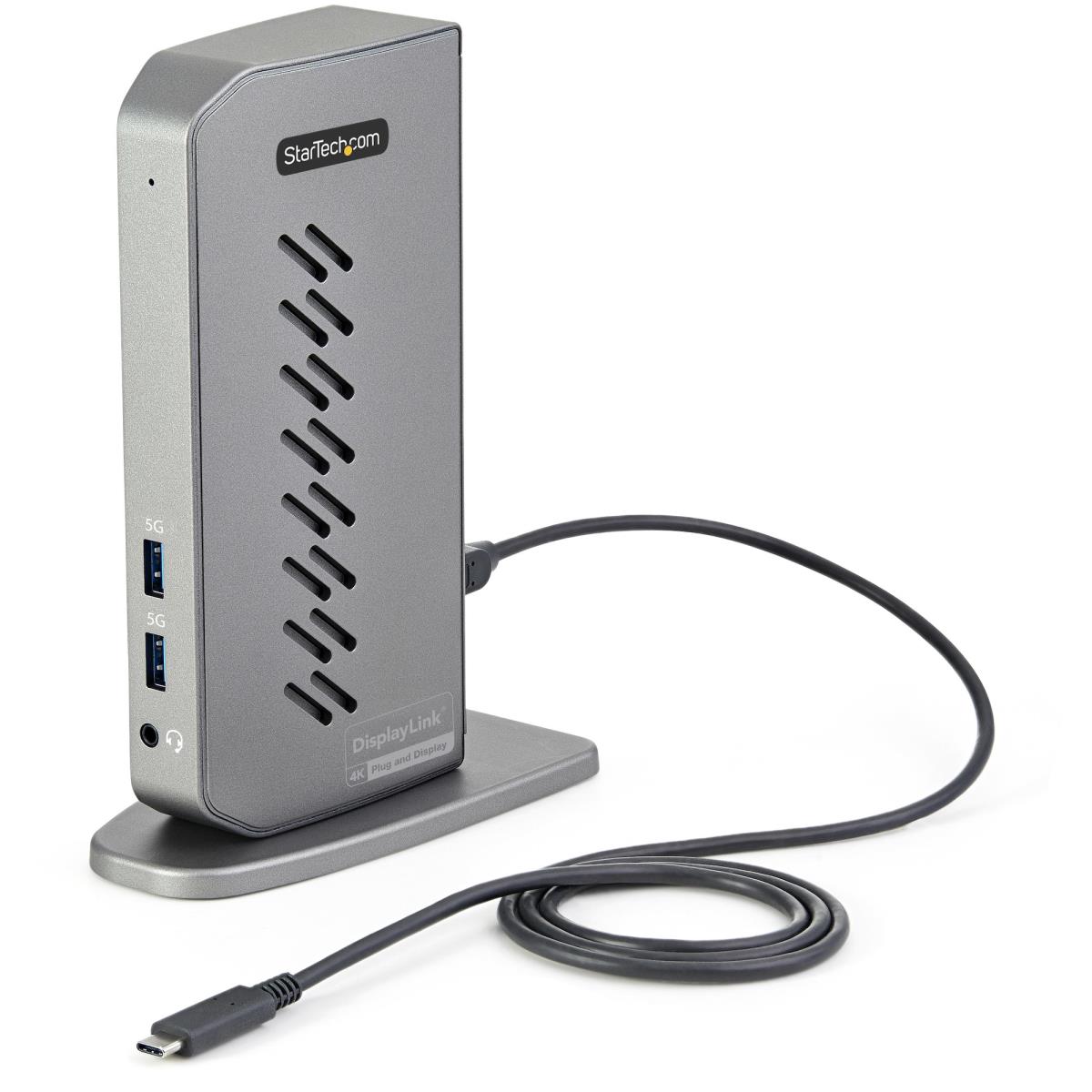

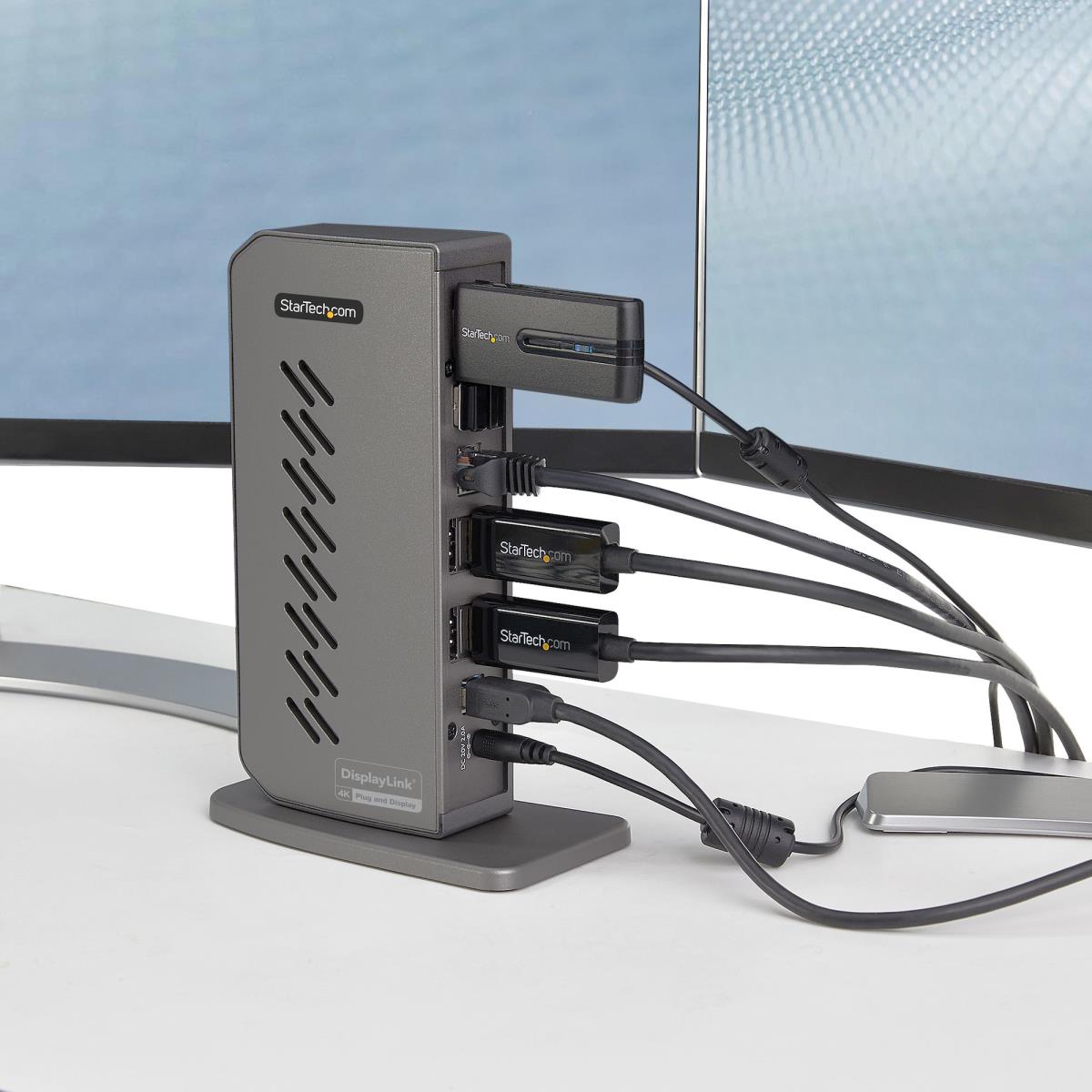

For fast setup right out of the box, the two included host cables (USB-C and USB-A) connect to any laptop. The included dock stand lets you position the dock vertically to save space or lay flat on the desk.

The Connections You Need

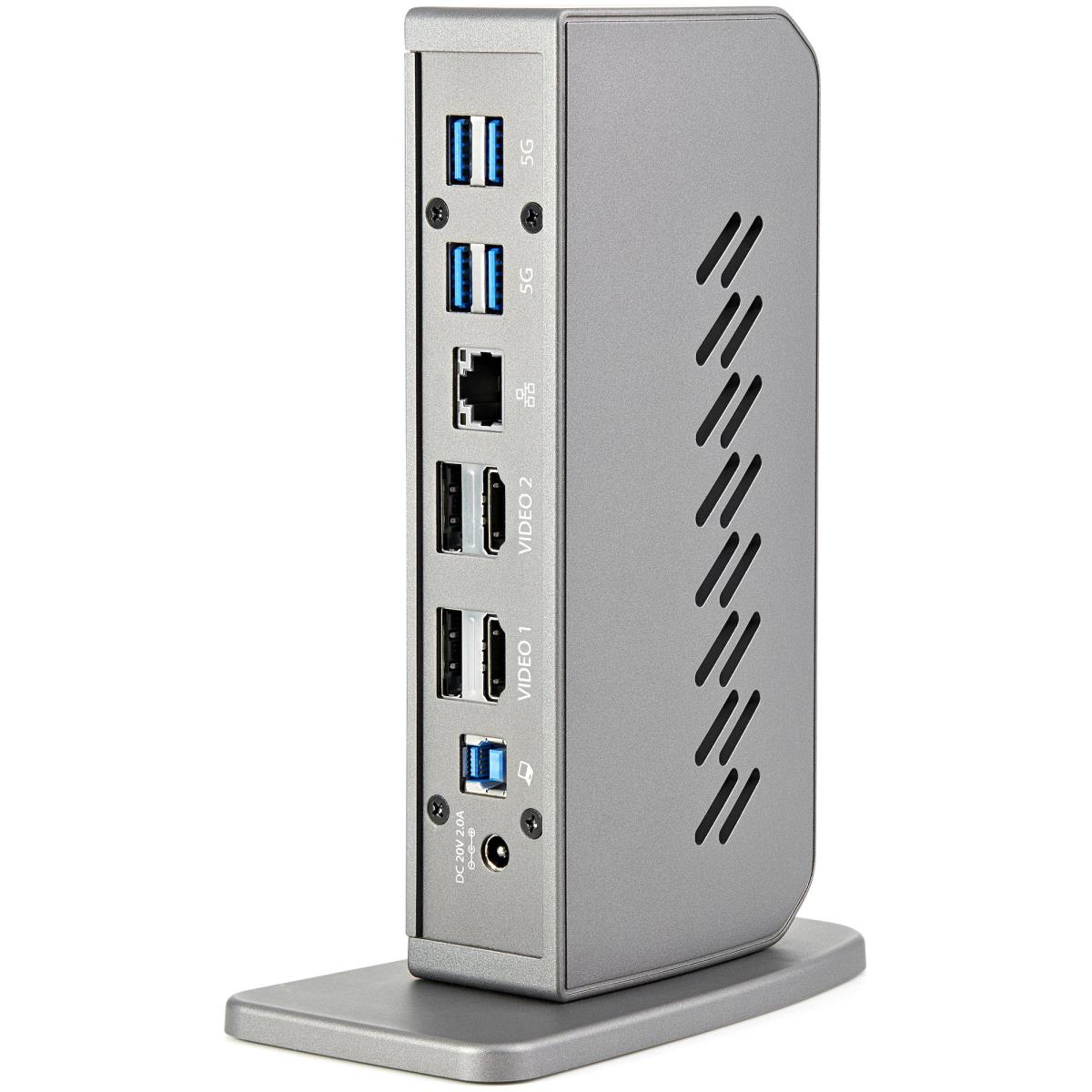

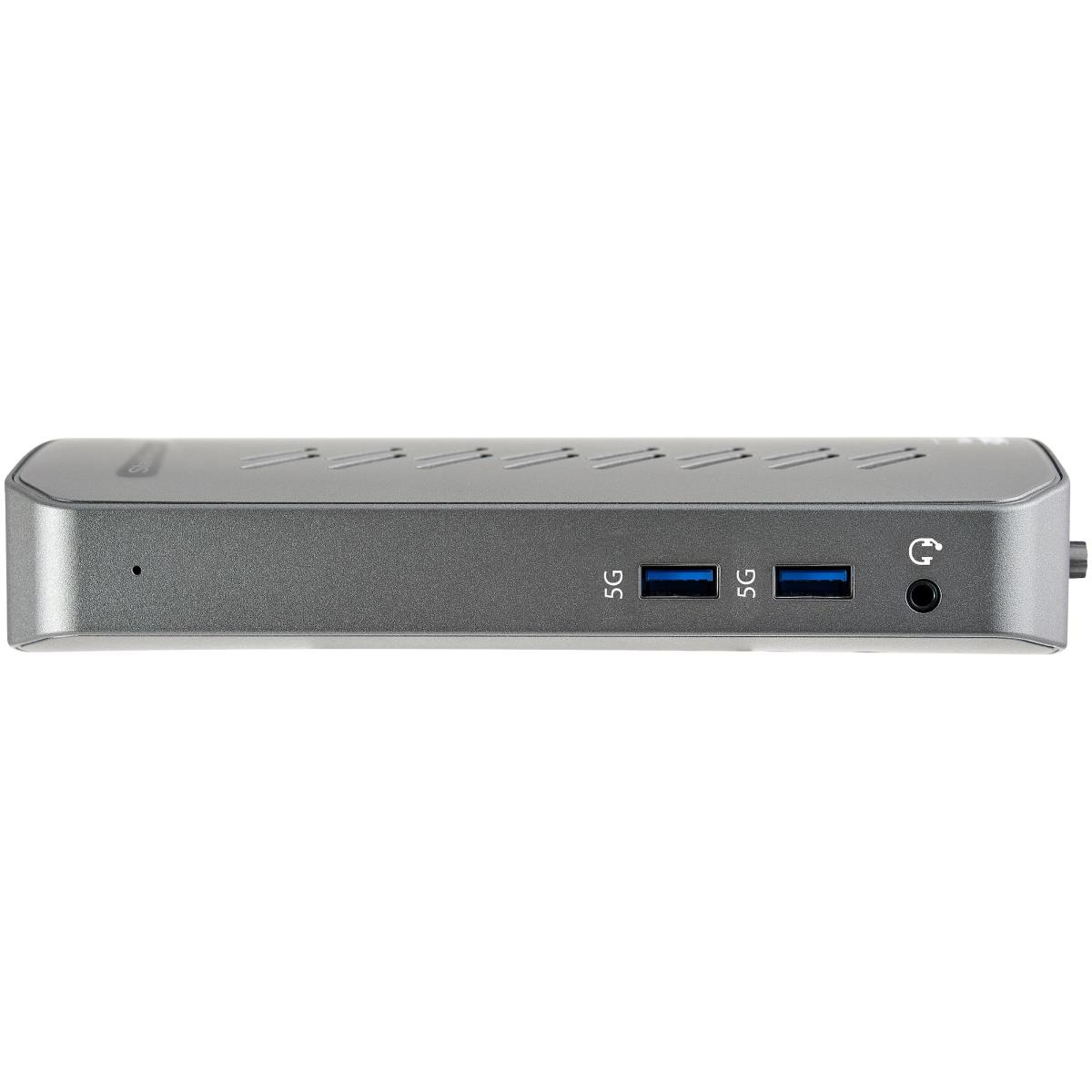

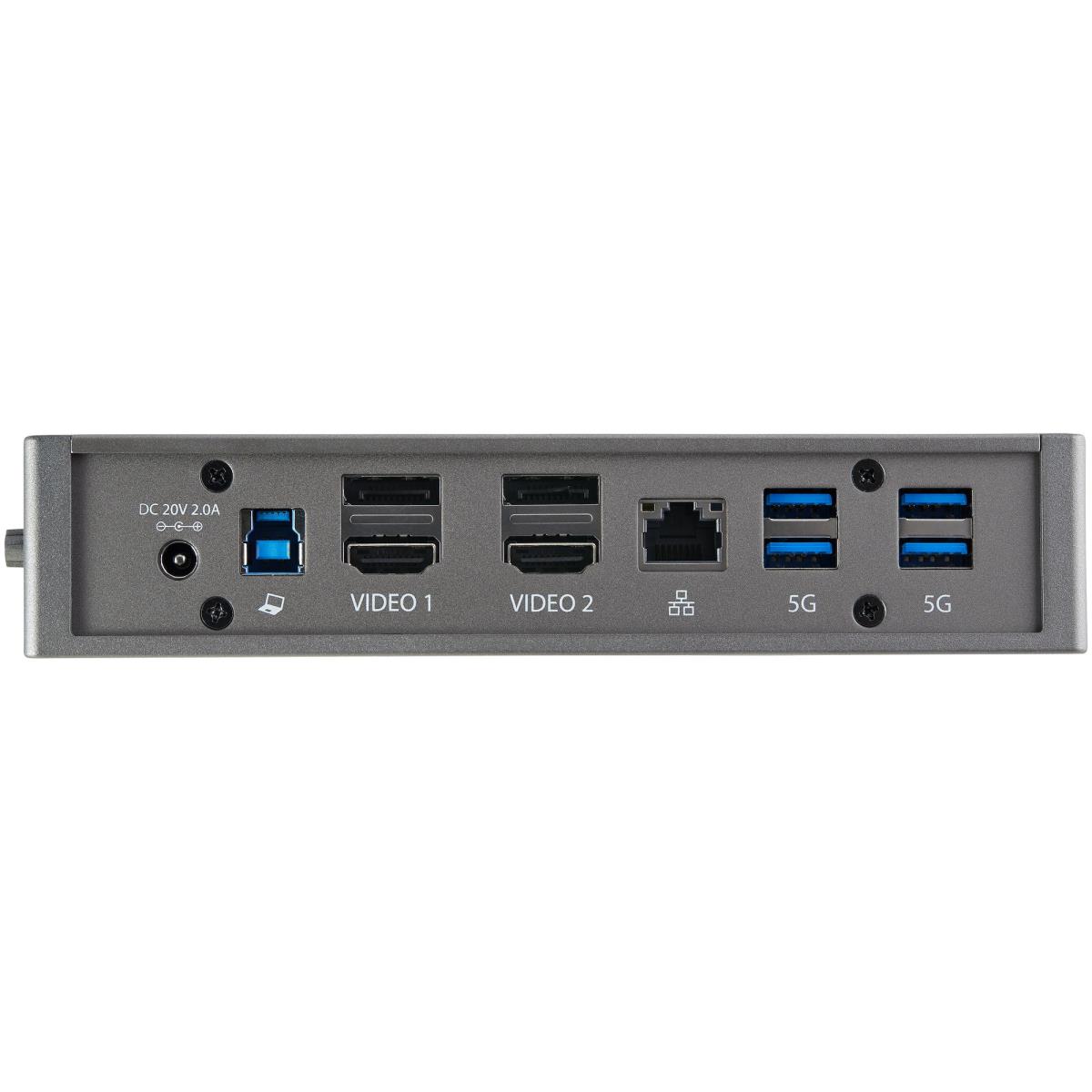

Connect your devices with six downstream USB Type-A (USB 3.0 5 Gbps) ports, two positioned on the front, and four on the back. The dock provides a GbE port and a 3.5 mm 4-position headset audio jack.

The IT Pro's Choice Since 1985

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.

DK30A2DHUUE is backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

- LATEST MODEL: This USB-C USB-A dock offers the same functionality as DK30A2DH, with added flexibility of horizontal or vertical orientation using the included stand to save space at your workstation
- HYBRID DOCK: Universal USB 3.0 docking station works w/ USB-C & USB-A laptops/computers, using 2-in-1 USB-C/USB-A 3.3ft (1m) host cable, 6-Port USB Type-A hub, Gigabit Ethernet & headset audio jack
- FLEXIBLE DUAL MONITOR VIDEO: This 4K 60Hz USB-C or USB-A docking station can connect 2 monitors: Dual DisplayPort or Dual HDMI or DP + HDMI displays for easy deployment of multiple different screens"

Ports & interfaces

Connectivity technology

Wired

Host interface

USB 3.2 Gen 1 (3.1 Gen 1) Type-B

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

6

HDMI ports quantity

2

DisplayPorts quantity

1

Combo headphone/mic port

Y

Headphone outputs

1

Network

Ethernet LAN

Y

Ethernet LAN (RJ-45) ports

1

Performance

Card reader integrated

N

Data transfer rate

10 Gbit/s

Maximum digital resolution

3840 x 2160 pixels

Number of displays supported

2

Product colour

Black, Grey

Housing material

Aluminium, Plastic

Certification

CE, FCC

Power

Compatible power plug types

EU,UK

Software

Windows operating systems supported

Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 IoT Enterprise,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 2000,Windows 2000 Professional,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows Vista x64,Windows XP,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64

Mac operating systems supported

Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks

Linux operating systems supported

Y

Other operating systems supported

Chrome

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 70 °C

Operating relative humidity (H-H)

0 - 95%

Sustainability

Sustainability certificates

RoHS

Weight & dimensions

Width

135 mm

Depth

73 mm

Height

187 mm

Weight

347 g

Packaging data

Package width

210 mm

Package depth

109 mm

Package height

142 mm

Package weight

800 g

Packaging content

Cables included

USB

Quick start guide

Y

Logistics data

Products per master (outer) case

6 pc(s)

Master (outer) case width

220 mm

Master (outer) case length

340 mm

Master (outer) case height

300 mm

Other features

Chipset

DL-6950
