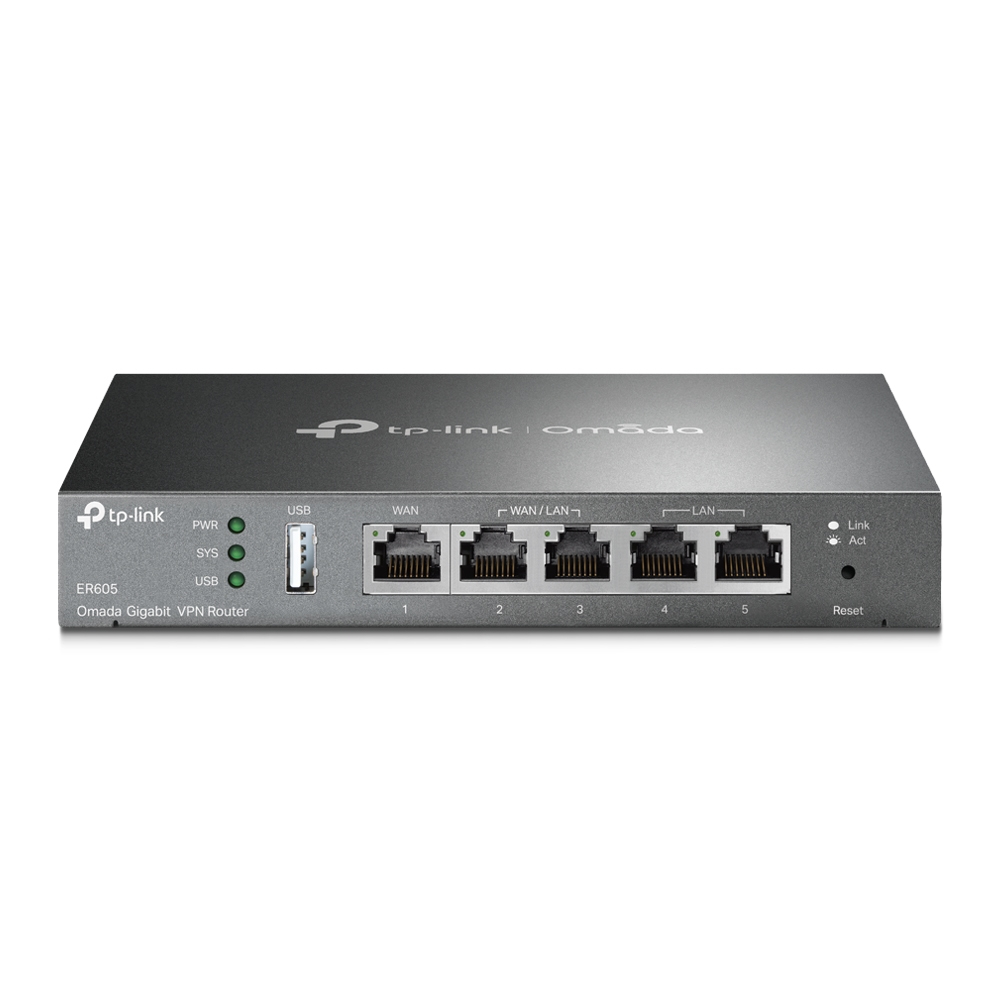

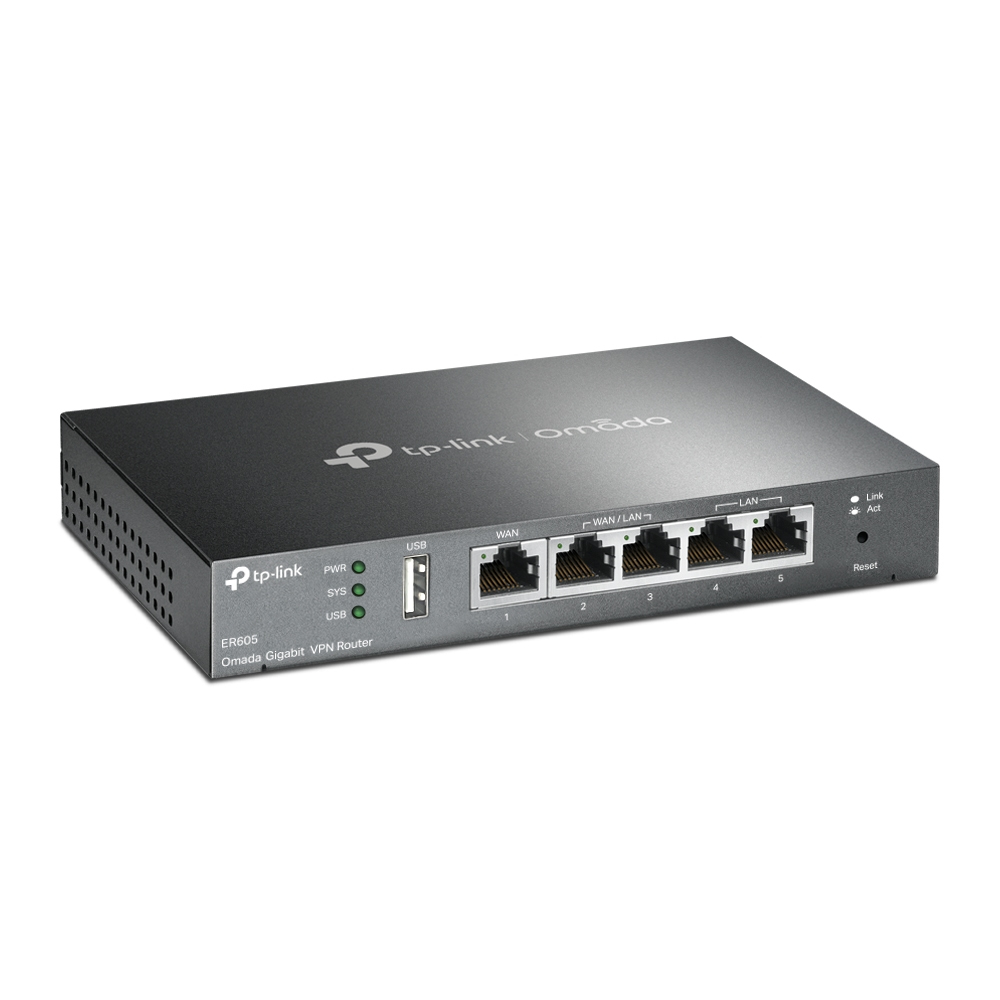

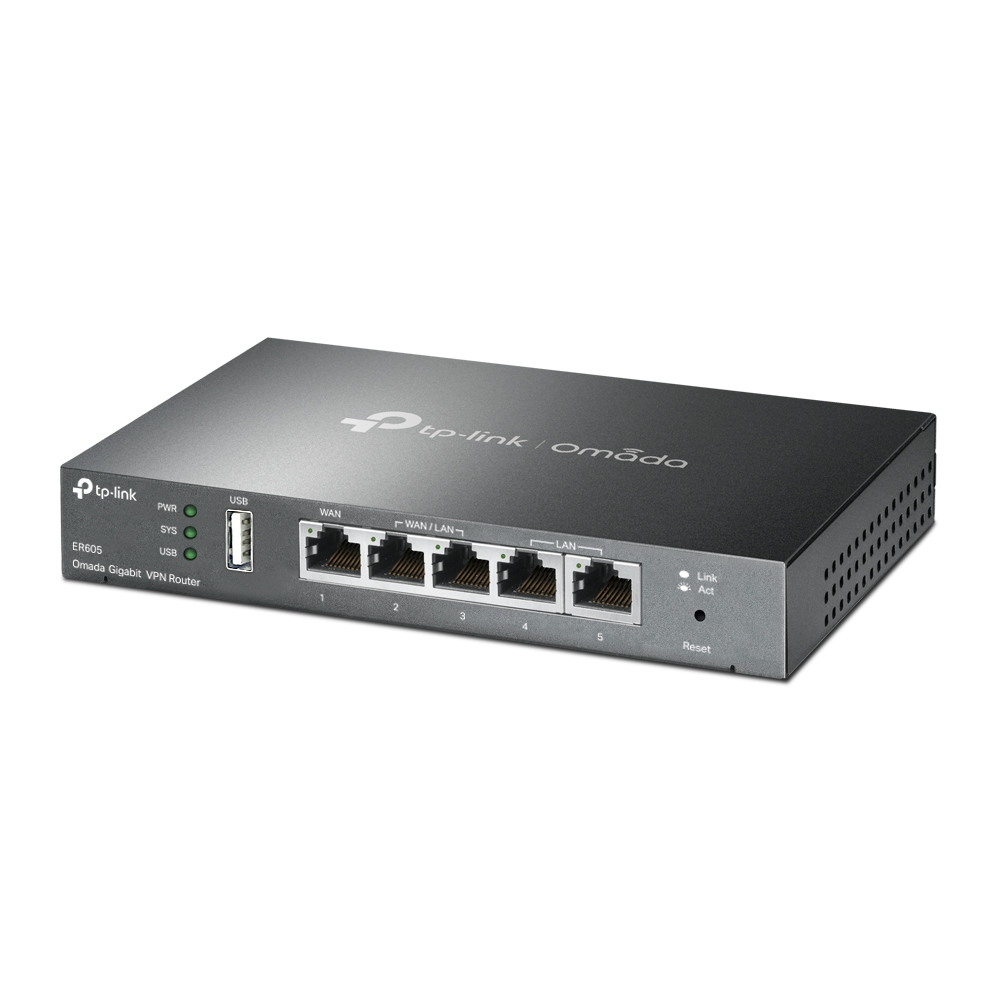

Omada Er605 Gigabit Multi-wan Vpn Router

Introduction

Omada Gigabit VPN Router

Professional, Secure, and Reliable Gigabit VPN Router

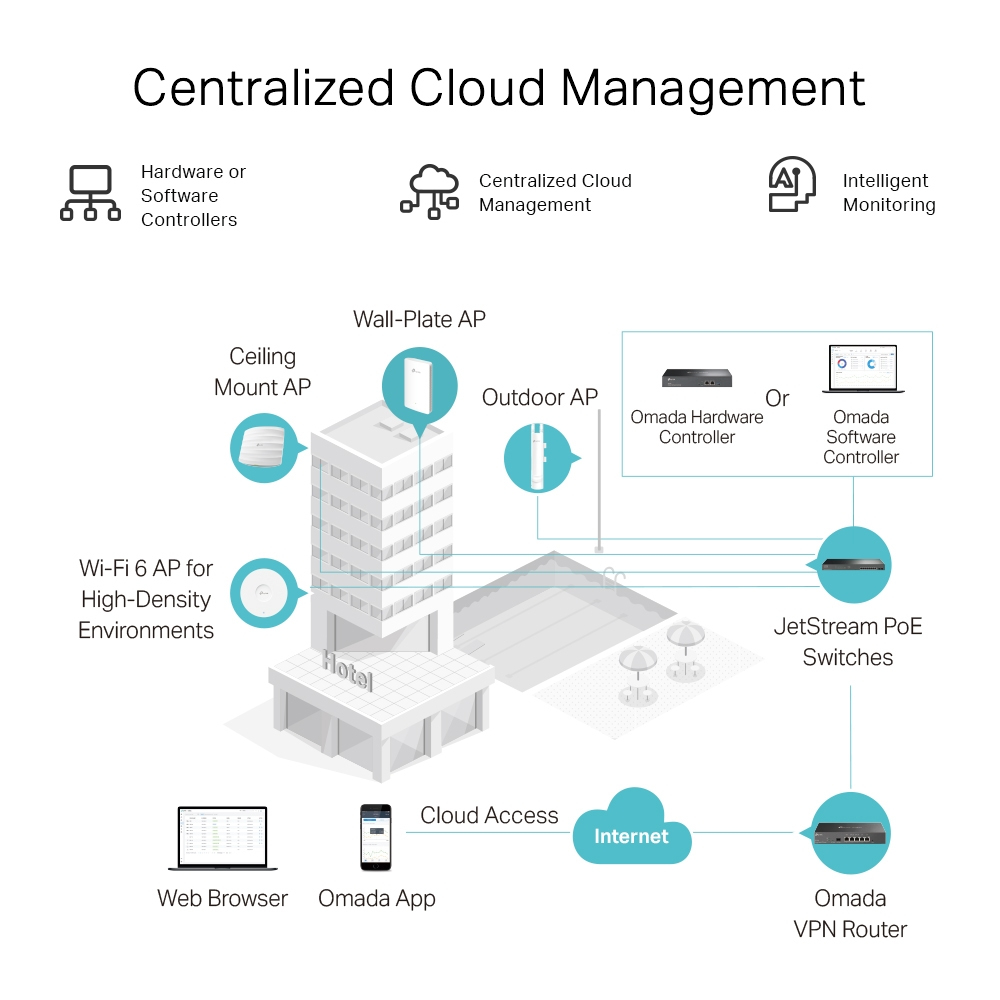

Omada SDN—The Smarter Cloud Solution for Business Networking
As the gateway that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, ER605 allows for remote and centralized management, anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience.

Up to Three WAN Gigabit Ports & One USB WAN for Mobile Broadband
Two freely interchangeable ports allow the router to support up to three WAN ports for various Internet access requirements. The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband.
Mobile broadband via 4G/3G modem by connecting to the USB port is also supported for WAN backup.

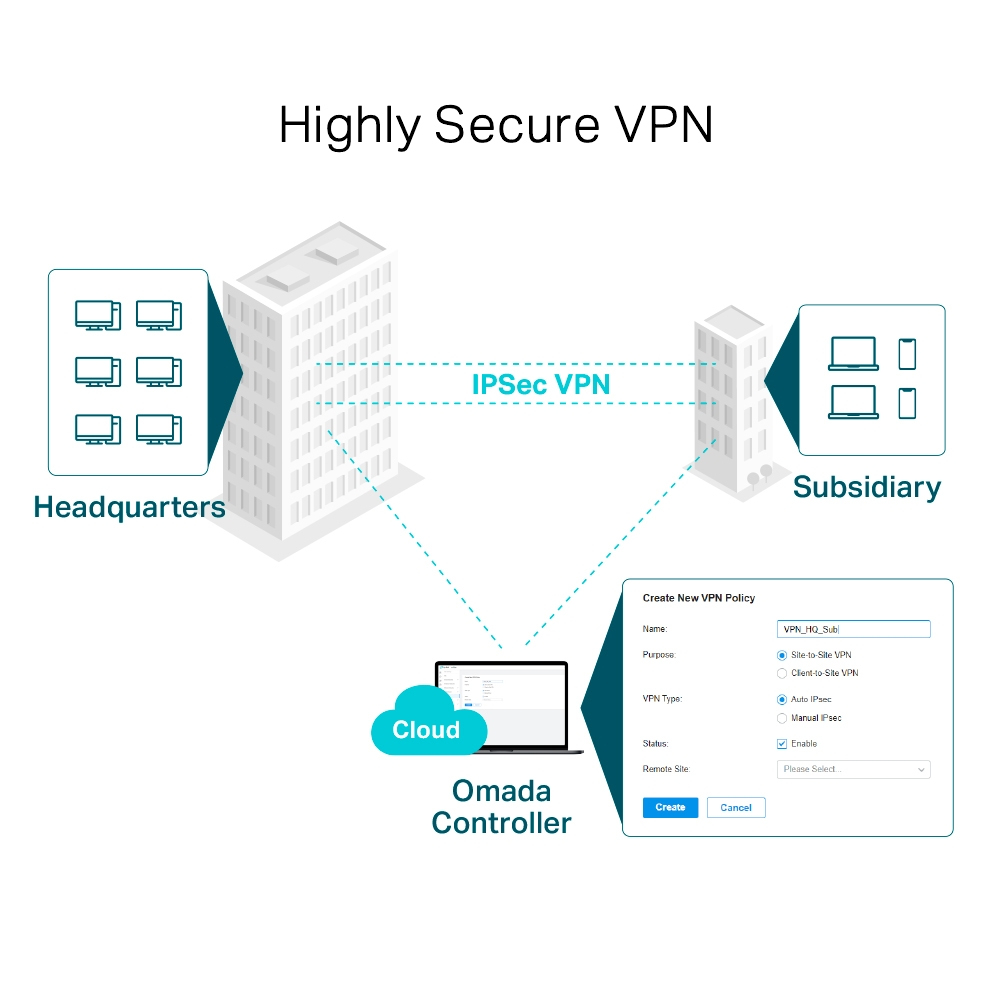

High-Security and High-Performance VPN
ER605 supports IPSec/PPTP/L2TP VPN over IPSec/SSL protocols. One-click auto IPSec VPN* greatly simplifies VPN configuration and facilitates network management and deployment. It also secures and encrypts private site-to-site data communications traveling over the internet. This version improves VPN performance by 4–5 times thanks to the open line of communication with Omada's user base.

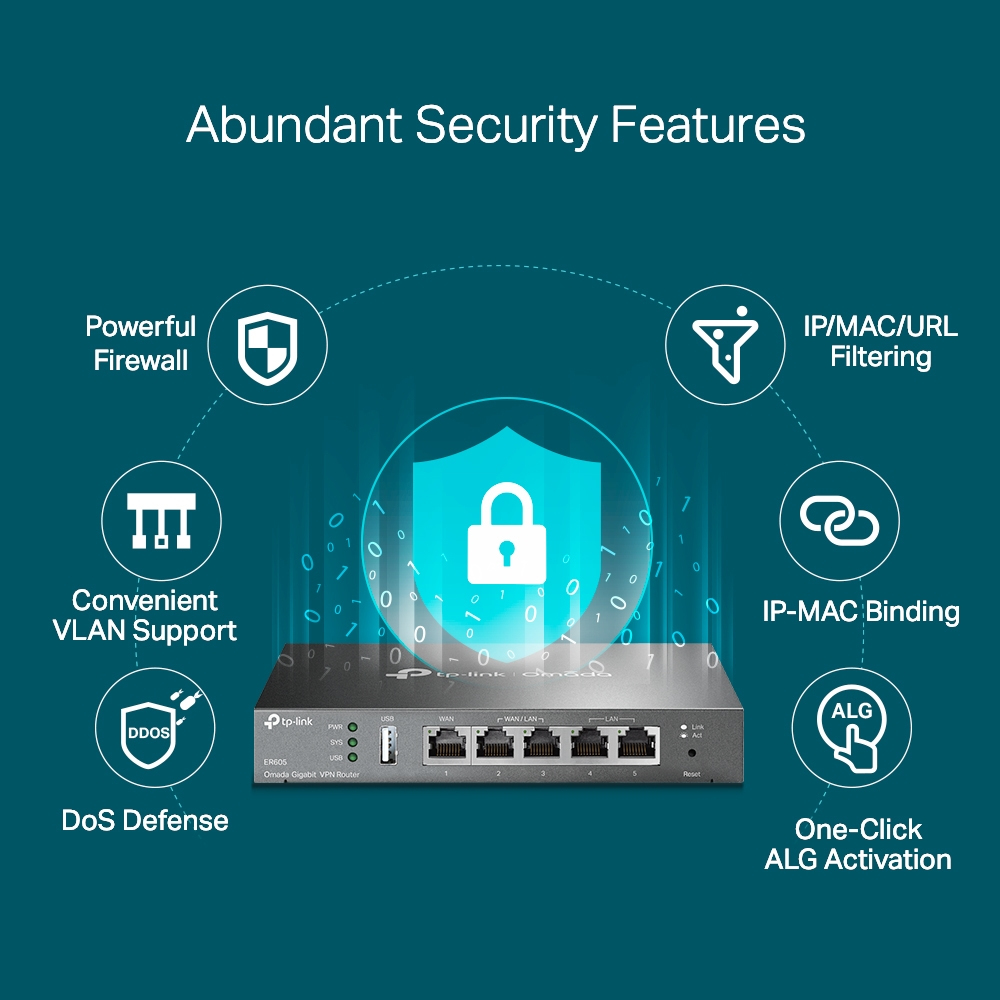

Abundant Security Features

Powerful Firewall
Advanced firewall policies protect your network and data.

Convenient VLAN Support
Create virtual network segments for enhanced security and simplified network management.

DoS Defense
Automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats.

IP/MAC/URL Filtering
Forcefully prevent viruses and attacks from intruders.

IP-MAC Binding
Reserves static IP assignment for clients to defend against ARP attacks and spoofing.

One-Click ALG Activation
One-Click ALG Activation for applications such as FTP, H323, SIP, IPSec and PPTP.

Internet Access Management Strategy
Administrators can moderate users' online behavior and easily specify employees' internet access rights and strategies via IP/MAC/URL Filtering and Access Control List (ACL). Captive Portal authentication facilitates network resource control by capturing, authenticating, and classifying user access. Appropriate network resources can also be allocated for particular users or guests.

Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status, and manage clients, all from the convenience of a mobile device.

WAN connection

Ethernet WAN

Yes

DSL WAN

No

SIM card slot

No

3G/4G USB modem compatibility

No

Network

Networking standards

IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

Ethernet interface type

Gigabit Ethernet

Cabling technology

10/100/1000Base-T(X)

Ethernet LAN data rates

10,100,1000 Mbit/s

VLAN support

Yes

Traffic control

Yes

Policy-based routing

Yes

Concurrent connections

150000

Management features

Web-based management

Yes

Universal Plug and Play (UPnP)

Yes

Reset button

Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports

5

USB ports quantity

1

Protocols

DMZ support

Yes

Routing protocols

RIP-1, RIP-2

Management protocols

Telnet

DHCP client

Yes

DHCP server

Yes

Supported network protocols

TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP

Supported protocols

IPsec/PPTP/L2TP

Security

Security algorithms

3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1

Firewall

Yes

Authentication method

SHA-1, MD5

URL filtering

Yes

DoS attack prevention

Yes

ARP attack prevention

Yes

Network address translation (NAT)

Yes

System event log

Yes

VPN tunnels quantity

20

VPN support

• 20 IPsec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IKEv1/v2 • MD5, SHA1 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) • PPTP VPN Server • 10 PPTP VPN Clients • 16 Tunnels • PPTP with MPPE Encryption • L2TP VPN Server • 10 L2TP VPN Clients • 16 Tunnels • L2TP over IPSec • OpenVPN Server • 10 OpenVPN Clients • 16 OpenVPN Tunnels

NAT functionality

• One-to-One NAT • Multi-Net NAT • Virtual Server • Port Triggering • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG, UPnP

Technical details

Sustainability certificates

RoHS

Features

Flash memory

128 MB

Internal memory

256 MB

Internal memory type

DRAM

Windows operating systems supported

Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP

Mac operating systems supported

MacOS

Linux operating systems supported

Yes

Certification

CE, FCC, RoHS

Design

Product colour

Black

Rack mounting

Yes

Rack capacity

1U

LED indicators

Activity, LAN, System, USB, WAN

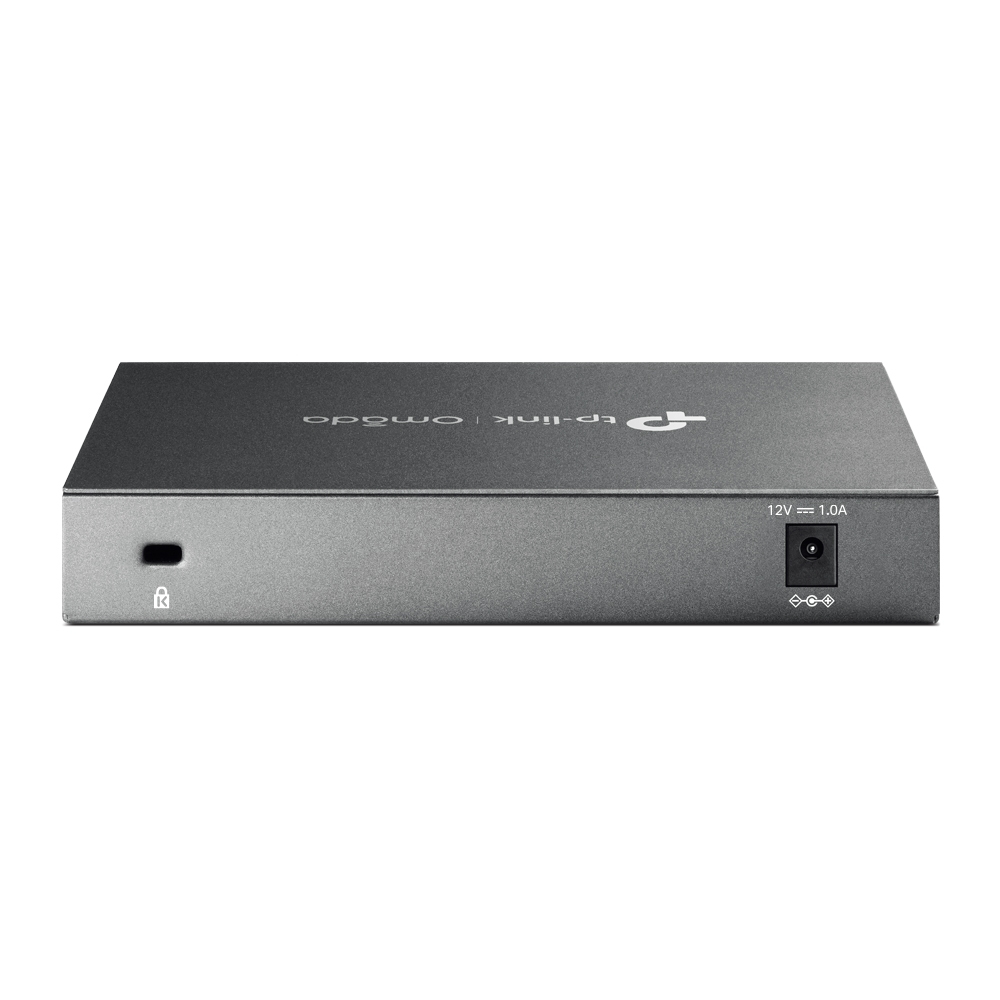

Power

Power consumption (typical)

7.94 W

Power source type

AC

AC input voltage

120 - 240 V

AC input frequency

50 - 60 Hz

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 90%

Weight & dimensions

Width

158 mm

Depth

101 mm

Height

25 mm

Packaging data

Cables included

AC

Manual

Yes

Quick start guide

Yes

Quick installation guide

Yes

Package width

190 mm

Package depth

254 mm

Package height

60 mm

Package weight

650 g
