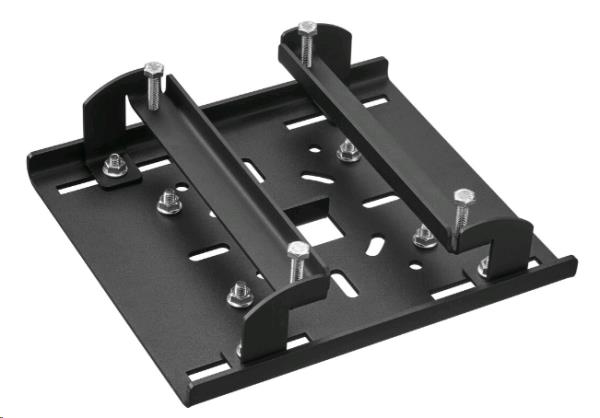

Pua 9515 Girder H-beam Clamp 70-180 Mm

Introduction

The PUA 9515 is part of the modular Vogel's display/projector mounting system which enables you to easily create your own (H-beam/girder) mounting solutions for medium- to large-sized displays.

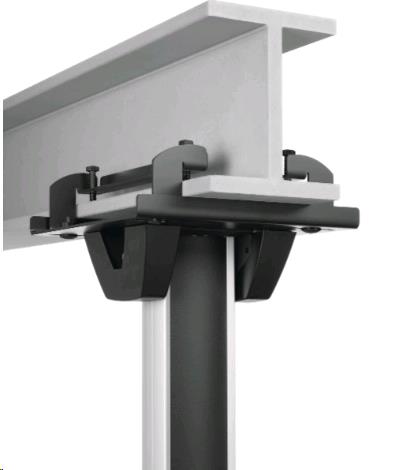

The PUA 9515 is designed for mounting displays and projectors on Girder/H-beams without drilling. The PUA 9515 is suitable for girders with a width between 70 mm and 180 mm.The PUA 9515 needs to be used in combination with the ceiling plates (PUC 1011/ 1035/ 1045/ 1060/ 1065/ 1070/ 1080) and the PUC 21xx, PUC 24xx, PUC 25xx poles.

Specifications

• Product group : Accessory
• Series : Connect-it
• TÜV certified : Yes
• Colour : Black
• Max. weight load (kg) : 80
• Max. weight load (lbs) : 176.37

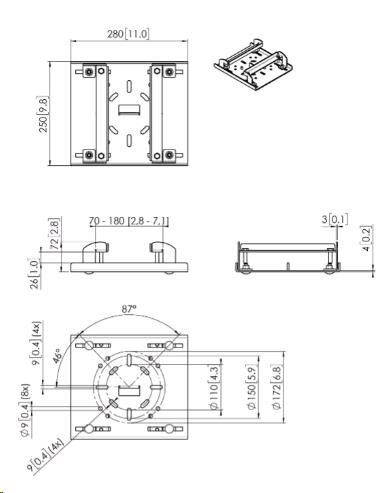

• H-beam size : 70-180 mm
