HDMI High Speed 4K Active Optical Cable with Detachable Connector HDMI-A Male - HDMI-A Male - 20m

Part Number:
 Without VATWith VAT
Base Price:€178,24€215,67
Recupel:+ €0,06+ €0,07


The ACT AOC 4K HDMI cable is made of copper and fiber to connect different devices over long distances up to 100 m without the loss of data. The Active Optical Cable has a bandwidth of 18Gbps 4:4:4 to handle the resolution of 3840x2160 (4K) @ 60Hz. The cable is supplied on a coil and comes with a detachable plug and protector with pulling eye for easy installation through conduits and plenum spaces. Additionally, the cable supports: HDR, HDCP 2.2, EDID, DDC, CEC, Multi-channel audio, Dolby True HD, DTS-HD Master Audio and ARC.

AOC: copper and glass for longer distances and the best video and audio quality
The AOC (Active Optical Cable) cable is made of copper and fiber for transferring 4K@60Hz over long distances up to 100m without data loss. It has a bandwidth of 18Gbps 4:4:4. The cable has a Kevlar protected fiber, an aluminium foiled shielding and is suitable for sensitive applications due to low RFI/EMI. The cable is supplied on a coil.

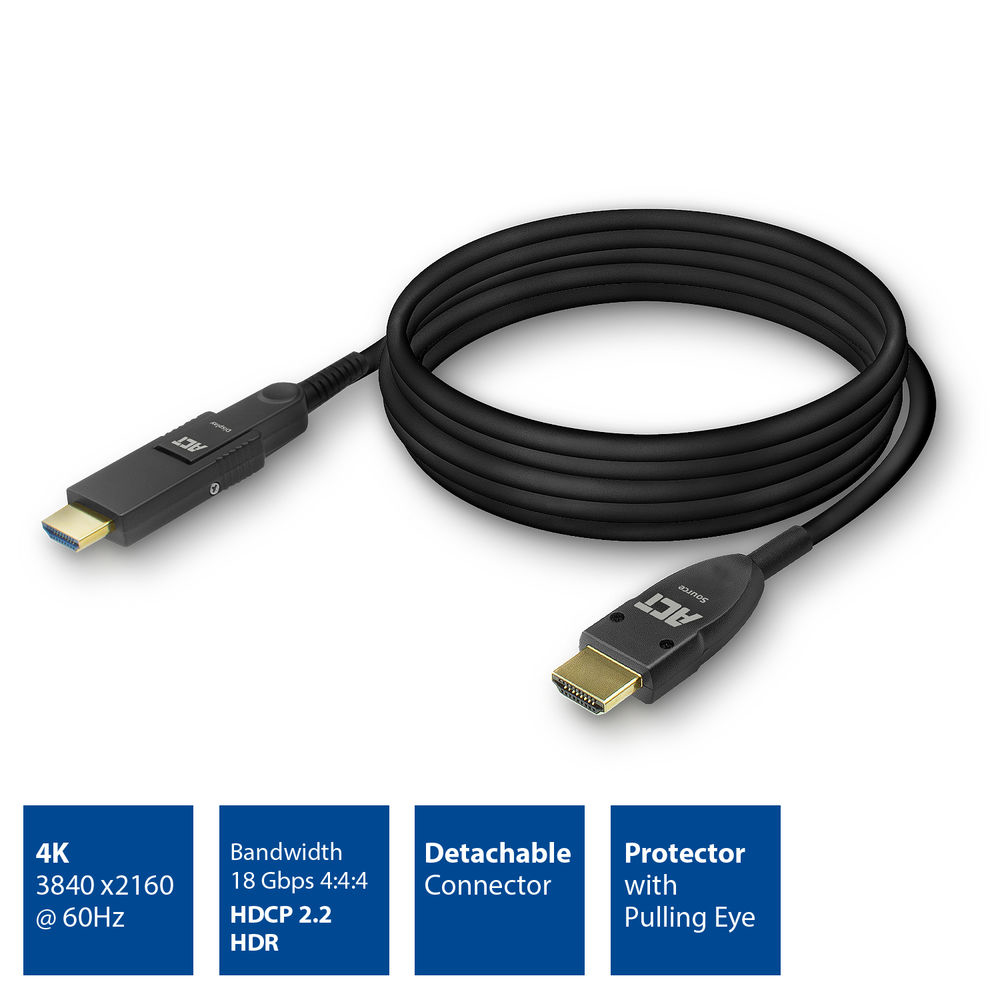

Resolution of 4K @ 60Hz
This HDMI 4K cable supports a resolution of 3840x2160 @ 60Hz. This resolution is compatible with: HDMI 2.0, HDMI 1.4a, HDMI 1.4, HDMI 1.3a and HDMI 1.3. Furthermore, the cable supports High Dynamic Range (HDR) video for expansive contrast ratio and color accuracy, HDCP 2.2, EDID, DDC, CEC, Multi-channel audio, Dolby True HD, DTS-HD Master Audio and ARC.

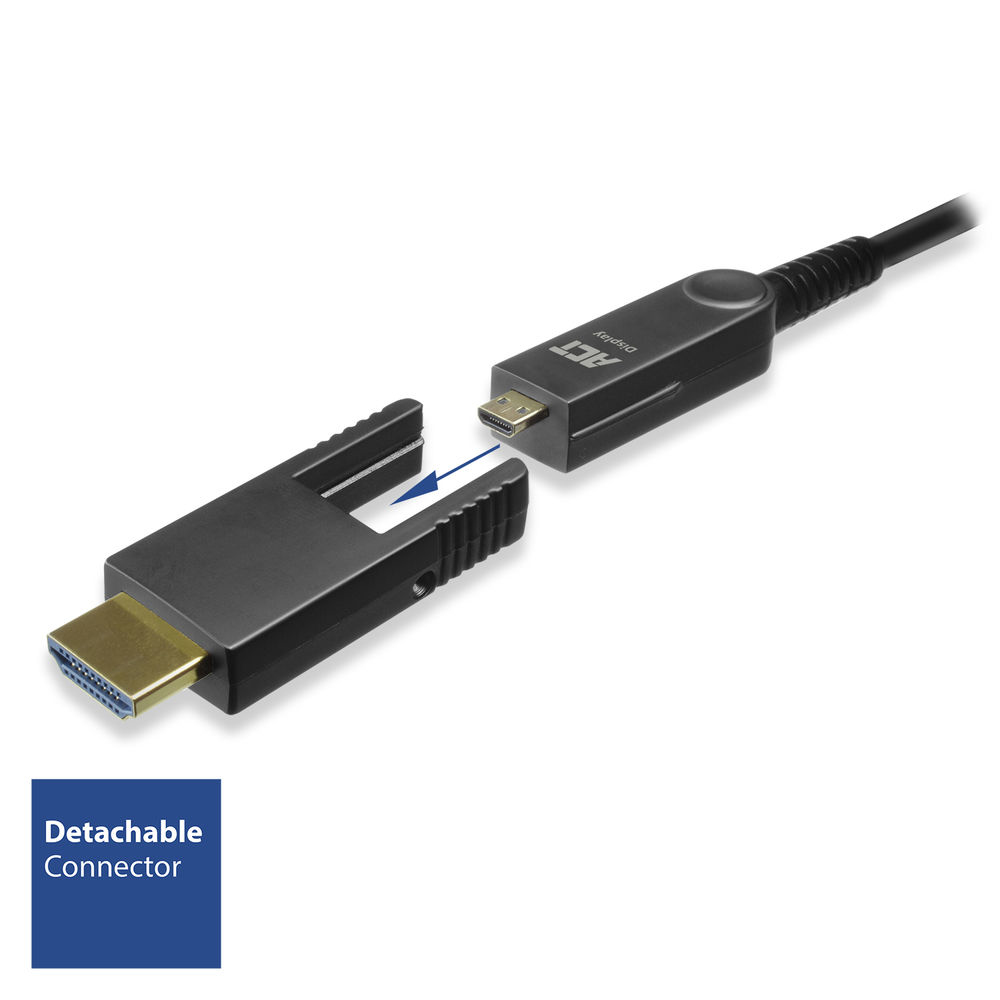

Ultra slim flexible cable with detachable connector for easy installation

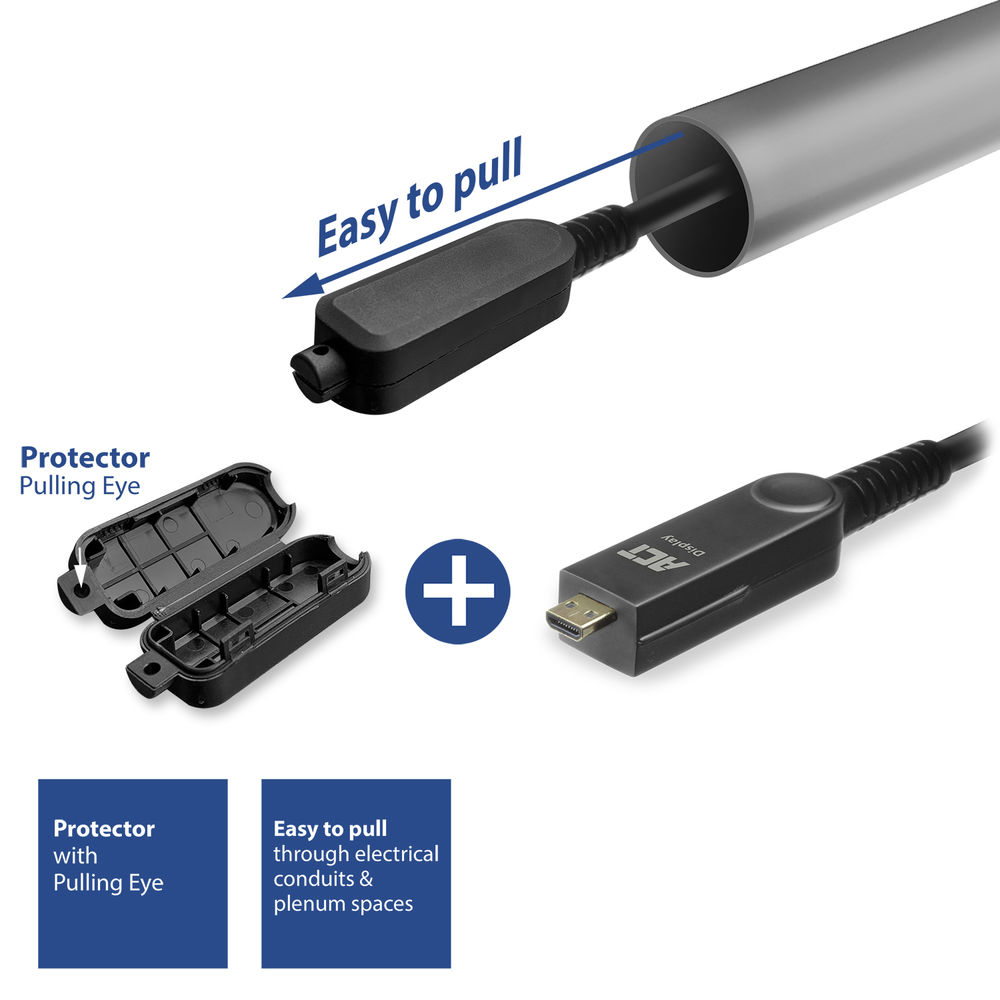

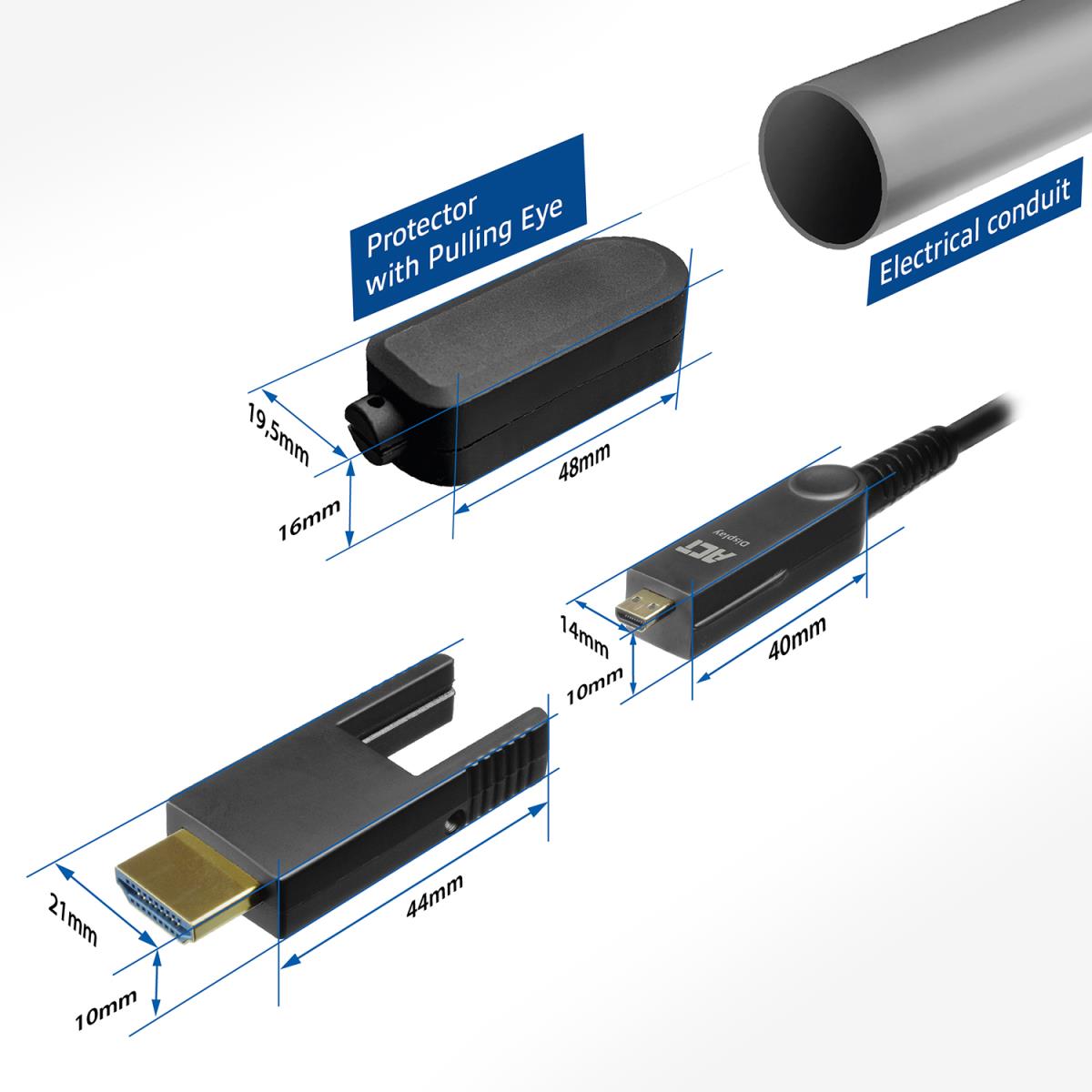

The flexible cable is ultra slim and can be easily pulled through narrow electrical conduits and plenum spaces. Just disconnect the detachable plug from the cable and wrap the protector with pulling eye around the cable. Pull the flexible cable through a conduit and remove the protector and reconnect the detachable plug to the cable.

Optional: connect an external power supply

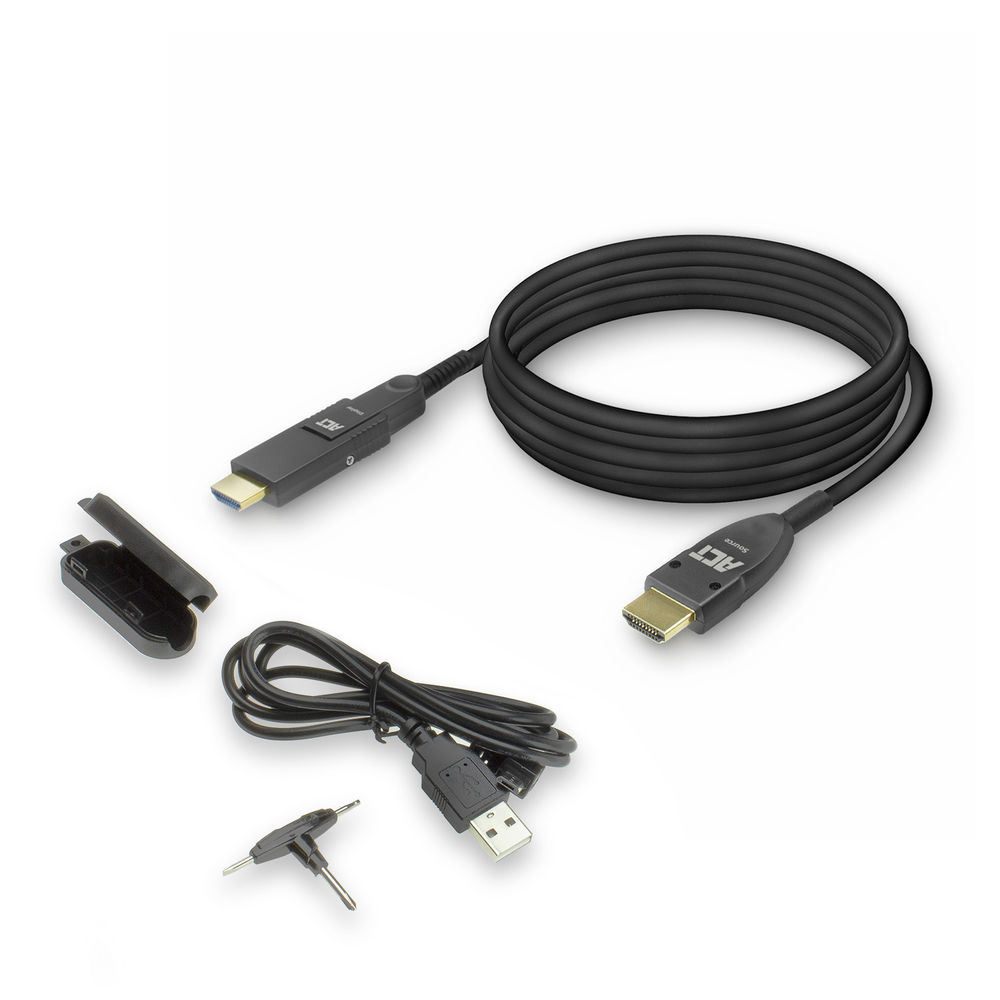

The AOC cable comes with a USB power cable for optionally connect an external 5V power supply. This is only required in cases when the HDMI port of the transmitter delivers insufficient power.

Additional features
It is important that the cable is connected correctly. The ACT AOC HDMI cable is marked to ensure easy identification of the source and display connector.


Cable length

20 m

Connector 1

HDMI Type A (Standard)

Connector 2

HDMI Type A (Standard)

Connector 1 gender


Connector 2 gender


Connector 1 form factor


Connector 2 form factor


Product colour


Supported graphics resolutions

3840 x 2160

Audio Return Channel (ARC)




HDCP version


Data transfer rate

18 Gbit/s

High Dynamic Range (HDR) supported


Connector contacts plating


Cable material

Fibre optic/Copper

Cable type

Round cable

Cable jacket material

Polyvinyl chloride (PVC)

Colour sampling


Extended display identification data (EDID)


Quantity per pack

1 pc(s)

Weight & dimensions

Cable diameter

4.5 mm
