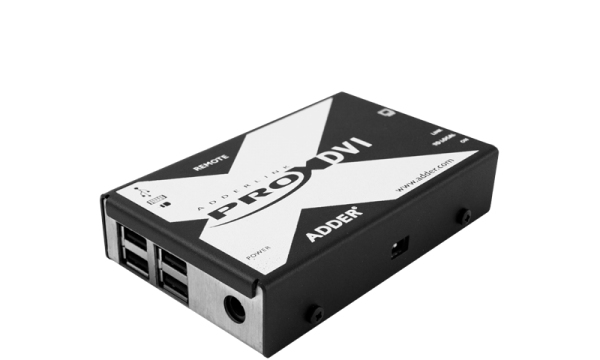

Adderlink X-DVI Pro Singlescreen KVM Extender

Introduction

The ADDERLink X-DVI PRO high-performance KVM extender delivers uncompressed video signals up to 50m in real-time.

Part of the ADDERLink® X-DVI PRO range, the high-performance X-DVI PRO digital video and USB extender enables you to locate your critical computing hardware in a secure and temperature controlled environment. Uncompressed digital video and audio is distributed in real-time and with zero latency, allowing the user to maintain an at-the-PC experience. The USB 2.0 interface ensures compatibility with a wide range of USB devices.

Delivers uncompressed digital video with audio
USB 2.0 Low and Full speed connection: to interface with a range of devices

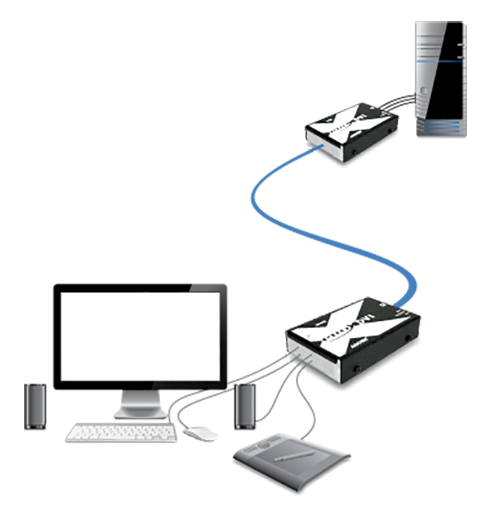

Exact content seen on the local monitor is distributed: up to 50m over a single CATx cable
Energy efficient design: external power supplies are not needed

Features

Type

Transmitter & receiver

Connectivity technology

Wired

Maximum transfer distance

50 m

Cable types supported

Cat5e,Cat6a,Cat7

Maximum digital resolution

1920 x 1200 pixels

Product colour

Black

Material

Metal

USB 2.0 ports quantity

5

Certification

CE, FCC

Transmitter

Transmitter video port type

DVI-D

Receiver

Receiver local video port type

DVI-D

Receiver local keyboard/mouse port type

USB

Power

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Input current

0.4 A

AC adapter output voltage

5 V

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Weight & dimensions

Transmitter width

12 cm

Transmitter depth

7.5 cm

Transmitter height

2.6 cm

Transmitter weight

320 g

Receiver width

12 cm

Receiver depth

7.5 cm

Receiver height

2.6 cm

Receiver weight

320 g
