ALLIED TELESIS

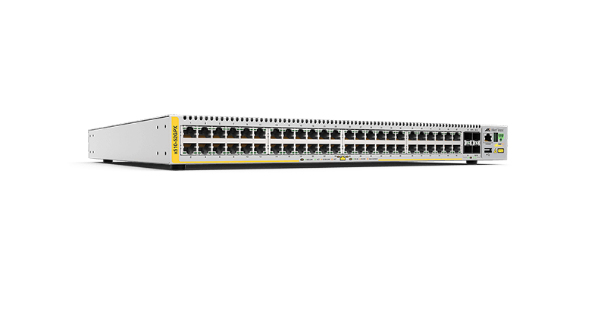

Stackable Gigabit Edge Switch With 48 X10/100/1000t Poe+. 4 X 10g Sfp+ Ports (at-x510-52gpx-50)

Stackable Gigabit Edge Switch With 48 X10/100/1000t Poe+. 4 X 10g Sfp+ Ports (at-x510-52gpx-50)

Part Number:
ATX51052GPX50
Language:
UK
 Without VATWith VAT
Base Price:€3.943,51€4.771,65
Recupel:+ €0,12+ €0,15
Total:€3.943,63€4.771,79

Introduction

Allied Telesis x510 GPX Series stackable Gigabit switches power the edge in the network more efficiently than any others.

The x510-52GPX stackable Gigabit edge switch features 48 x 10/100/1000T PoE+ ports and 4 x 10G/1G SFP+ uplink ports. It includes two internal power supplies for high reliability, as well as VCStackT, allowing devices to be stacked to create highly resilient solutions that can be distributed over long distances. The AT-x510-52GPX delivers up to 30 Watts per port (PoE+), perfect for supporting standard as well as Pan/Tilt/Zoom video surveillance and security cameras, wireless access points, IP phones, RFID readers, automatic doors and other PoE-powered devices. This PoE option eliminates the need for power rewiring and minimizes the clutter of power supplies and adapters in awkward places. The x510-52GPX is designed for the edge of enterprises, retail, government, universities and medical campuses.

Management features

Switch type

Managed

Switch layer

L3

Quality of Service (QoS) support

Y

Web-based management

Y

MIB support

Y

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

48

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

SFP+ module slots quantity

4

Network

Networking standards

IEEE 802.1AX,IEEE 802.2,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z

Copper ethernet cabling technology

10BASE-T,100BASE-T,1000BASE-T,1000BASE-TX

Port mirroring

Y

Full duplex

Y

IP routing

Y

Flow control support

Y

Virtual LAN features

Private VLAN,Tagged VLAN,Port-based VLAN

Number of VLANs

4094

Data transmission

Switching capacity

228 Gbit/s

Throughput

130.9 Mpps

MAC address table

16000 entries

Latency (10-100 Mbps)

68 s

Number of queues

8

Packet buffer memory

4 MB

Security

DHCP features

DHCP server,DHCP client

Access Control List (ACL)

Y

Security algorithms

SNMP

MAC address filtering

Y

SSH/SSL support

Y

Loop protection

Y

BPDU filtering/protection

Y

Authentication

MAC-based authentication

Multicast features

Multicast support

Y

Design

Rack mounting

Y

Stackable

Y

Product colour

Grey

Country of origin

China

Safety

UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1

Certification

EN55022 class A, FCC class A, VCCI class A, ICES-003 class A, EN55024, EN61000-3-levels 2 (Harmonics), UL, cUL, TUV, RoHS

Performance

Memory type

DDR-SDRAM

Internal memory

512 MB

Flash memory

64 MB

Power

AC input voltage

90 - 260 V

AC input frequency

47/63 Hz

Power consumption (max)

93 W

Power plug type

Type B

Power over Ethernet (PoE)

Power over Ethernet (PoE)

Y

Power over Ethernet plus (PoE+) ports quantity

48

Operational conditions

Operating temperature (T-T)

0 - 45 C

Storage temperature (T-T)

-25 - 70 C

Operating relative humidity (H-H)

5 - 90%

Storage relative humidity (H-H)

5 - 95%

Operating altitude

0 - 3048 m

Heat dissipation

317 BTU/h

Weight & dimensions

Width

440 mm

Depth

400 mm

Height

44 mm

Weight

6.2 kg

Packaging data

Package weight

8.2 kg

No options for this product
.
