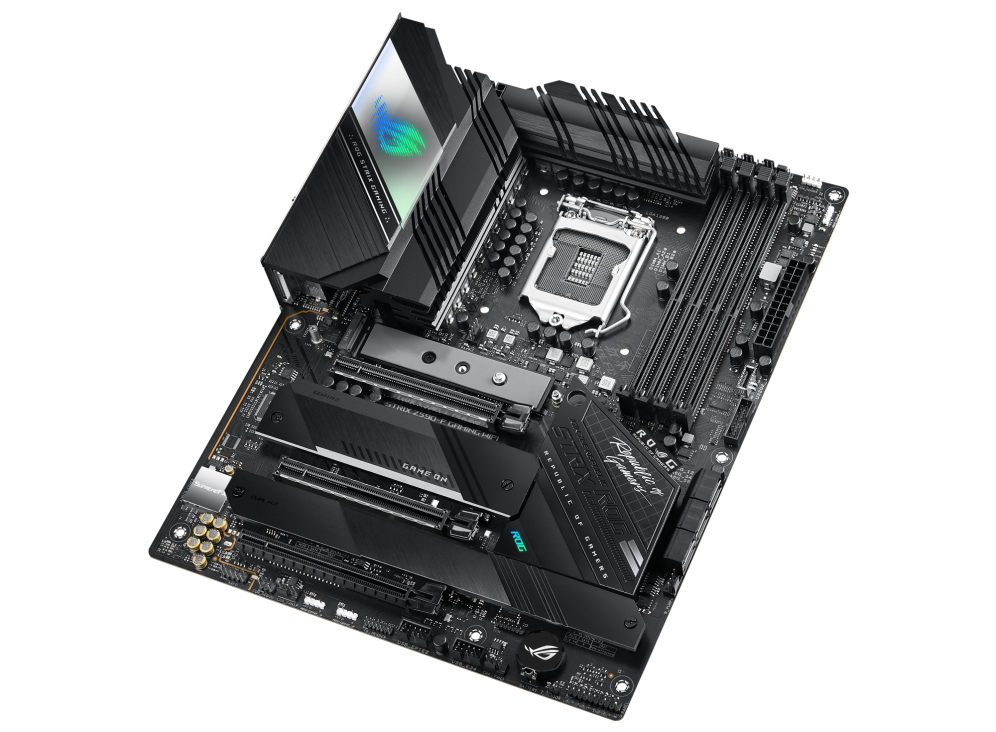

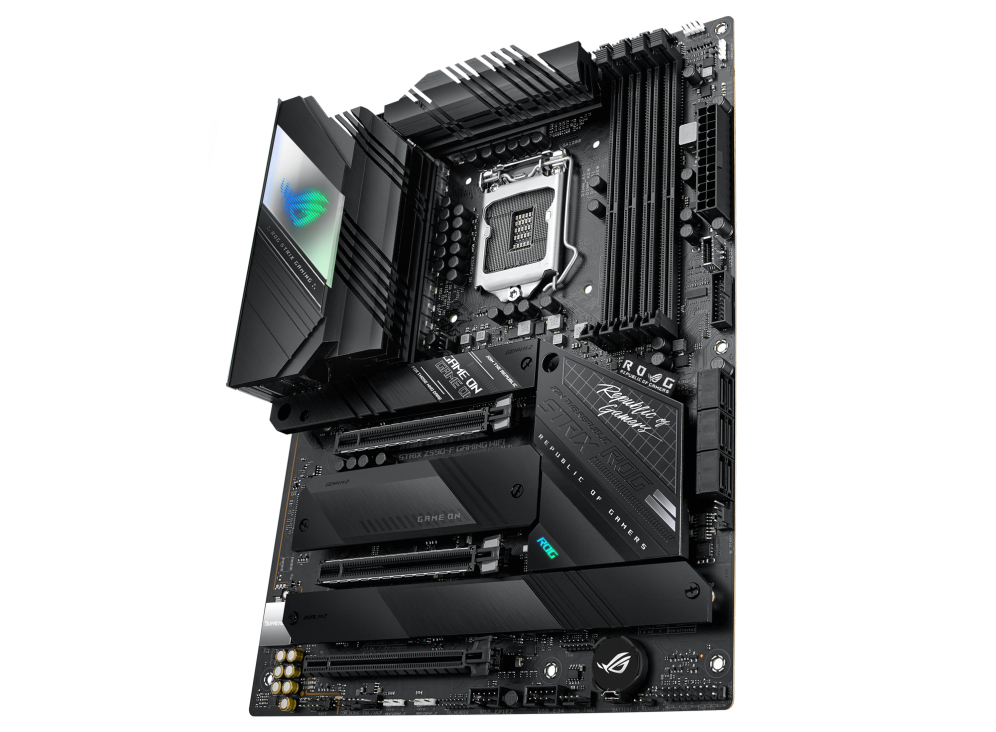

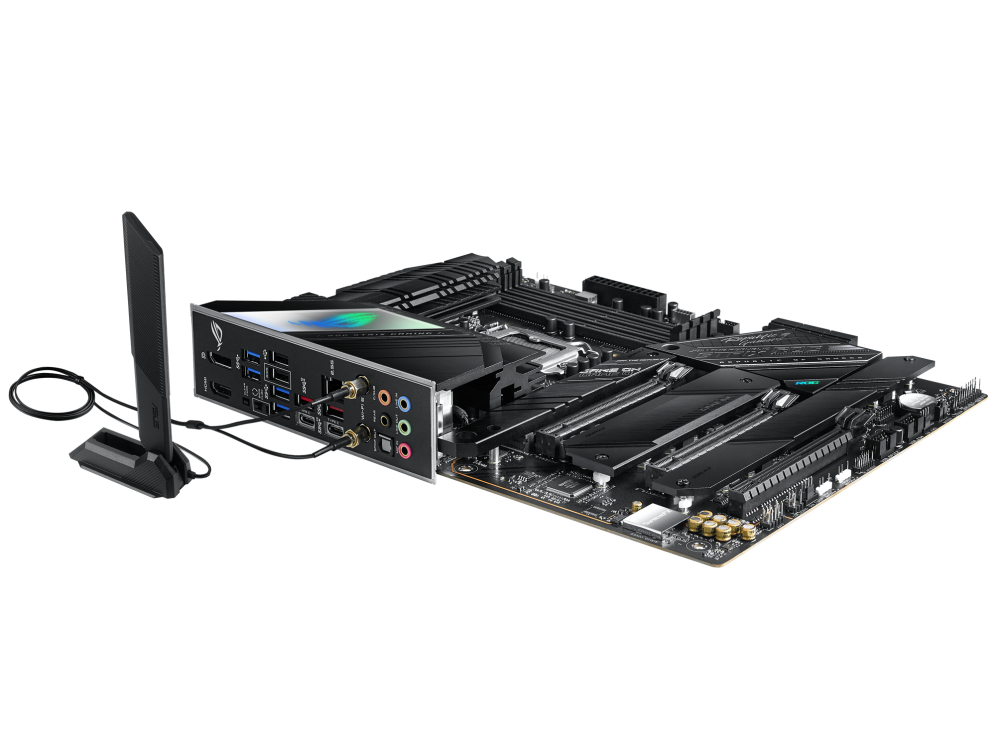

Motherboard ROG STRIX Z590-F GAMING Wi-Fi / LGA1200 Z590 DDR4 128GB ATX

Introduction

ROG Strix Z590-F Gaming WiFi motherboard is designed with boosted power delivery and optimized cooling to cope with the demands of powerful 11th Generation Intel® CoreT Rocket Lake processors. Along with the latest Intel® Wi-Fi 6E and PCI Express® 4.0 M.2 for superfast transfer speeds and storage, Strix Z590-F Gaming WiFi features Two-Way AI Noise Cancelation to ensure clear communication in any scenario.

Mainboard Type

Model number

ROG STRIX Z590-F GAMING WIFI

Socket / Slot Type

Intel® LGA 1200

Form Factor

ATX

Dimension

Width : 305 mm
Depth : 244 mm

Processor

Supported Types

Intel® Celeron®, Intel® CoreT i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium G

Chipset

Intel® Z590

Memory

Memory Type

DDR4

Maximum

128 GB

Memory Bus

2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,3866,4000,4133,4266,4400,4500,4600,4700,4800,5000,5133,5333 MHz

Slots

Memory slots type : DIMM
Memory channels : Dual-channel

I/O Ports / Connectors

RJ 45

1

Audio Ports

Front panel audio connector : Yes
Headphone outputs : 5
Microphone in : Yes

USB

USB 3.2 Gen 1 (3.1 Gen 1) connectors : 1
USB 2.0 connectors : 2

SATA

Number of SATA III connectors : 6

Power connector

ATX Power connector (24-pin) : Yes
EPS power connector (8-pin) : Yes

Fan Connector

Yes

Other Ports / Connectors

TPM connector : Yes

Display Port

1

HDMI

HDMI version : 2.0
HDMI ports quantity : 1

Multimedia

Audio Controller

Audio output channels : 7.1 channels

Supported Resolutions

5120 x 2880 pixels

Networking

LAN

Ethernet LAN : Yes
LAN controller : Intel I225-V
Wake-on-LAN ready : Yes

Bluetooth

Yes

WLAN

WiFi-AP antenna jack : 1
Wi-Fi : Yes
