Large Format Display - Multisync Me551-mpi4 - 55in

Introduction

Digital Signage and real-time information deployed easily

Initiating effective communication to your target audience has never been easier to plan, install and operate. Deploying Signage with consistently updated information, real-time content adaption and scheduling has never been so simple.

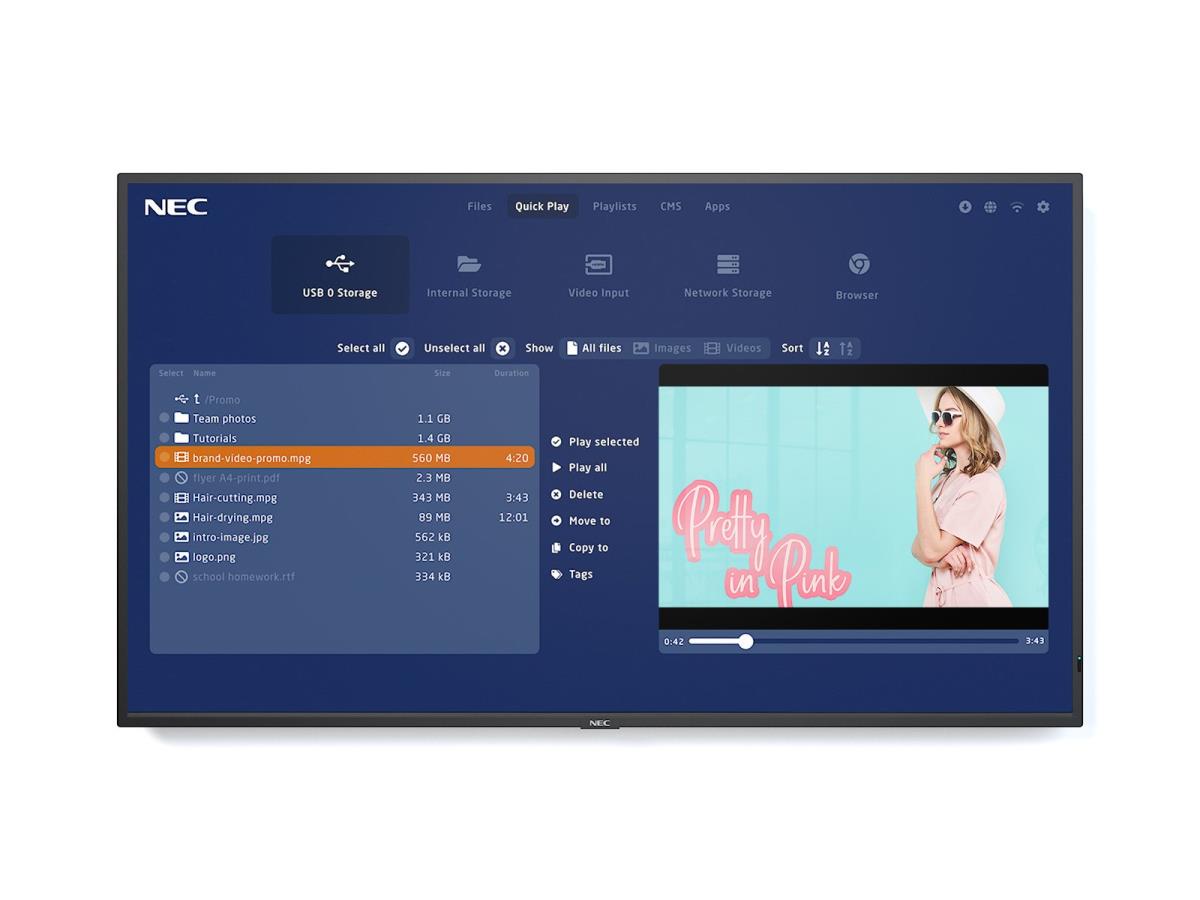

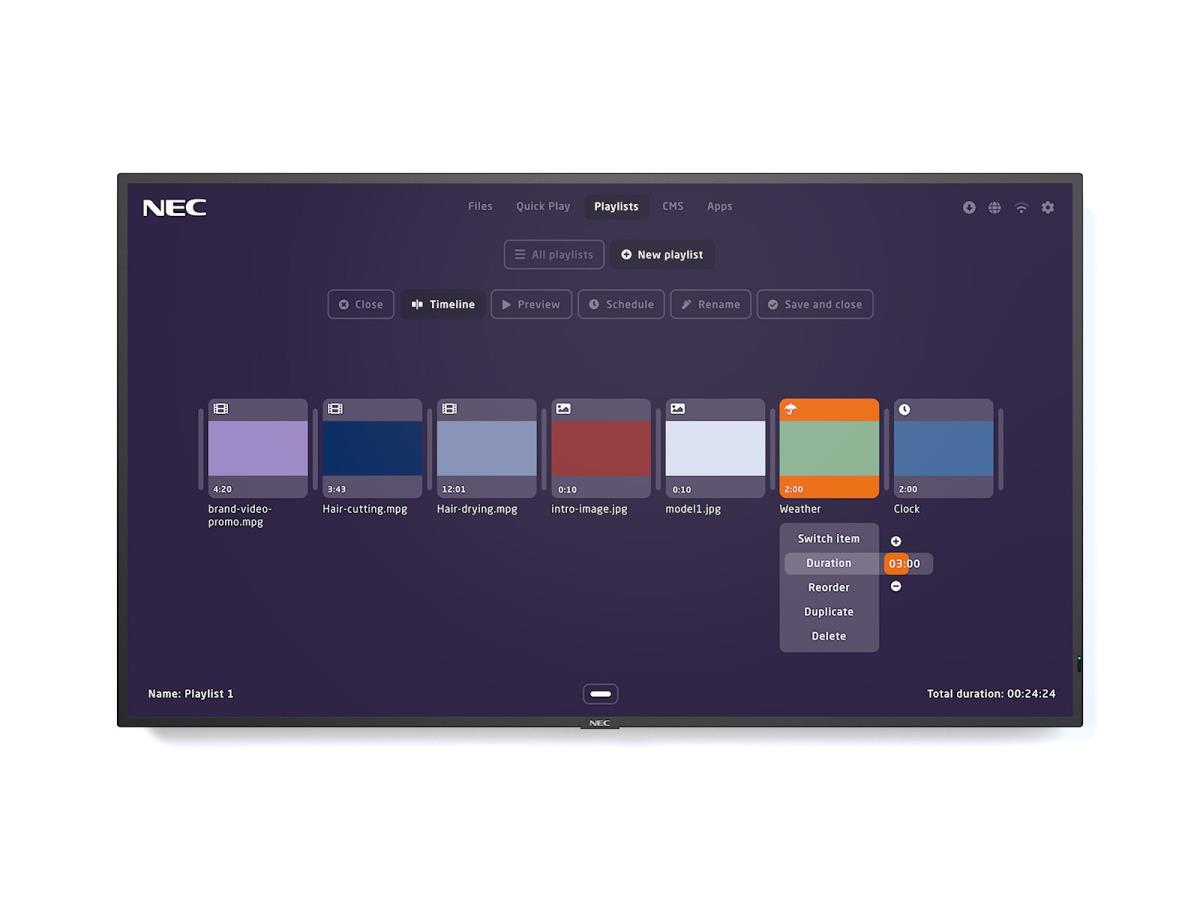

The MultiSync® ME-MPi4 displays offer out-of-the-box playback for local retailers, restaurants and small business enterprises. With the NEC MediaPlayer you can deliver dynamic advertising and infotainment to your customers whilst benefiting from the efficiencies gleaned through digitisation.

Future-proof and upgradable, the NEC MediaPlayer software is powered by a pre-installed modular SoC Raspberry Pi module. Enabling remote operation of single and multiple display installations, benefit from flexible usage of many media types and a scheduling function for smart content management. For specific feature demands, the NEC MediaPlayer grants easy switching to the integrated Content Management Systems directly.

Display

LED backlighting type

Direct-LED

Display diagonal

139.7 cm (55")

Display technology

LED

Display resolution

3840 x 2160 pixels

Display brightness

400 cd/m²

HD type

4K Ultra HD

Touchscreen

No

Native aspect ratio

16:9

Response time

8 ms

Contrast ratio (typical)

8000:1

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Display diagonal (metric)

138.8 cm

Horizontal scan range

26 - 135 kHz

Vertical scan range

23 - 86 Hz

Native refresh rate

60 Hz

Haze rate

1%

Ports & interfaces

HDMI ports quantity

2

HDMI input ports quantity

2

DVI port

No

DisplayPorts quantity

1

DisplayPorts in

1

USB port

Yes

USB ports quantity

1

USB version

2.0

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Wi-Fi

No

Audio (L/R) in

1

Audio (L/R) out

1

RS-232 interface

Yes

Audio

Built-in speaker(s)

Yes

Number of built-in speakers

2

RMS rated power

20 W

Design

Product design

Digital signage flat panel

Placement supported

Indoor

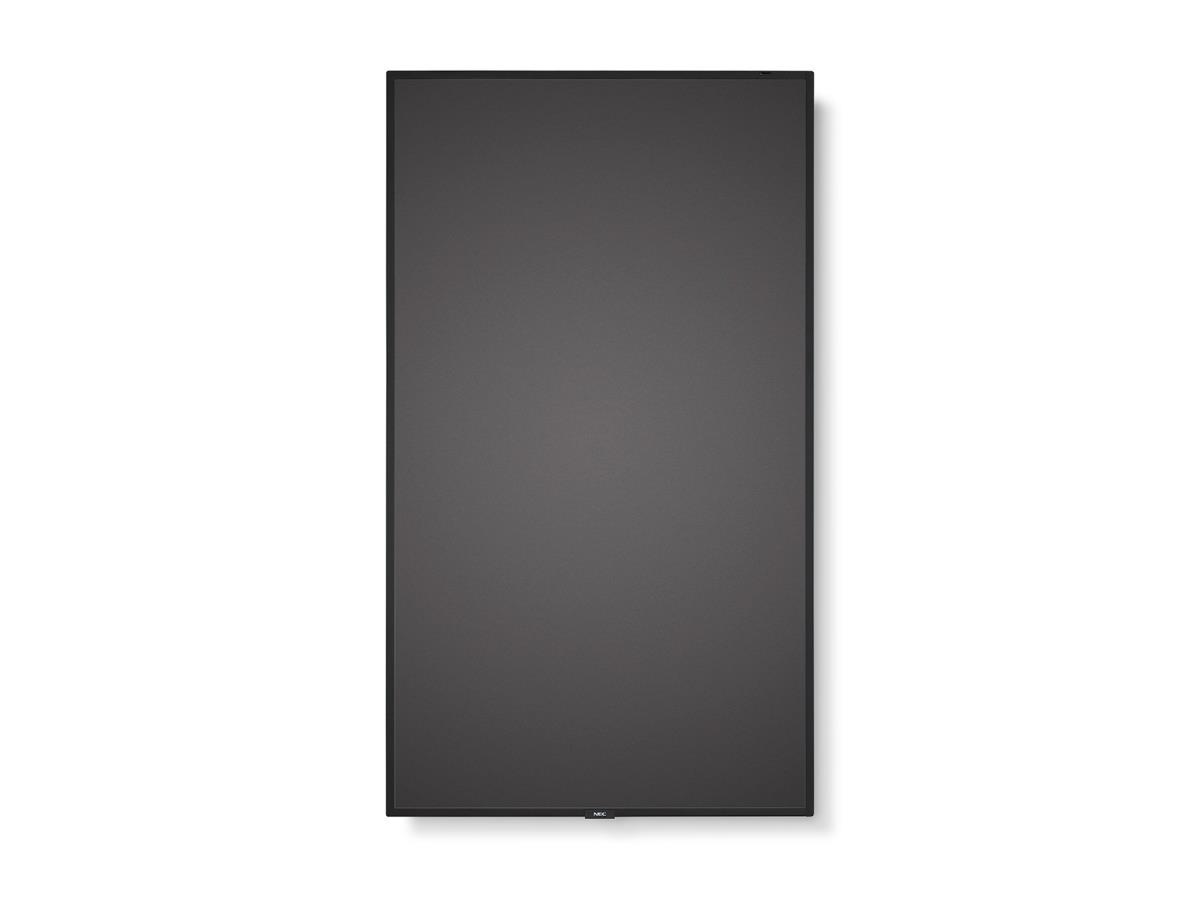

Orientation

Horizontal/Vertical

Product colour

Black

VESA mounting

Yes

Panel mounting interface

400 x 400 mm

Performance

Purpose

Universal

Operating hours (hours/days)

18/7

HDCP

Yes

International Protection (IP) code

IP5X, IP2X

Power

Power consumption (typical)

120 W

Power consumption (standby)

0.5 W

Energy efficiency class (SDR)

G

Energy efficiency class (HDR)

G

Energy consumption (SDR) per 1000 hours

118 kWh

Energy consumption (HDR) per 1000 hours

91 kWh

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Computer system

Computer system

Yes

Computer system type

System on Chip (SoC)

Built-in processor

Yes

Processor family

ARM Cortex

Processor model

A72

Processor frequency

1.5 GHz

Internal storage capacity

32 GB

Video formats supported

AVI, M4V, MKV, MOV, MP4, MPEG, MPEG2, MPG, VOB, VP8, VP9, WMV

Audio formats supported

AAC, AC3, MP3

Image formats supported

JPEG, JPG, PNG

Weight & dimensions

Width

1241.8 mm

Depth

62.6 mm

Height

712.6 mm

Weight

19.8 kg

Packaging data

Package width

1430 mm

Package depth

250 mm

Package height

920 mm

Package weight

29.4 kg

Packaging content

Remote control included

Yes

Batteries included

Yes

Cables included

AC, HDMI

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

20 - 80%

Storage temperature (T-T)

-20 - 60 °C

Storage relative humidity (H-H)

10 - 90%

Logistics data

Harmonized System (HS) code

85285210
