NEC

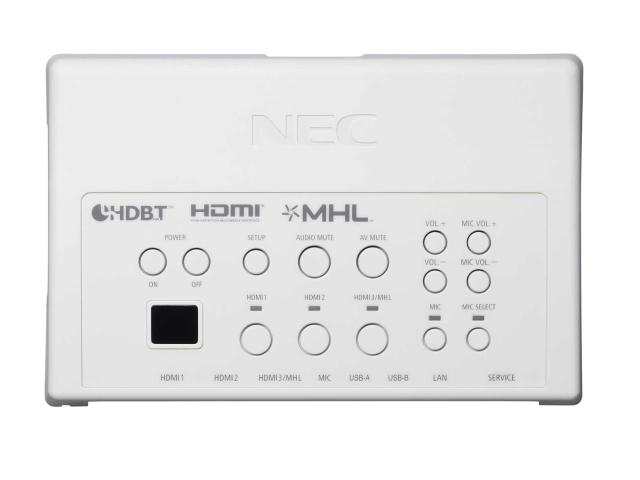

Np01sw2 Hdbase-t Transmitter & Receiver

Np01sw2 Hdbase-t Transmitter & Receiver

Part Number:
100014160
Language:
UK
 Without VATWith VAT
Base Price:€720,90€872,29
Total:€720,90€872,29

Introduction

NEC's HDBaseT Switcher and Receiver is a clever solution that combines the advantages of HDBaseT and an easy to use control box.

Features

Type

AV transmitter & receiver

Cable types supported

Cat5e,Cat6

Maximum transfer distance

30 m

LED indicators

Y

Supported video modes

480i,480p,576i,576p,720p,1080i,1080p

Supported graphics resolutions

640 x 480 (VGA),1920 x 1200 (WUXGA)

HDCP

Y

Colour depth

12 bit

Product colour

White

HDBaseT certified

Y

Certification

CE, FCC, EAC, SASO

Ports & interfaces

Ethernet LAN

Y

RJ-45 input ports

2

RJ-45 output ports

1

HDBaseT port

Y

HDMI in

3

Number of HDMI outputs

1

USB ports quantity

4

USB version

2.0

USB connector type

USB Type-A, USB Type-B

RS-232 input ports

1

RS-232 output ports

1

Remote (IR) input

1

Power

AC input voltage

100-240 V

AC input frequency

50 - 60 Hz

Input current

1.4 A

Power consumption (typical)

21 W

Operational conditions

Operating temperature (T-T)

5 - 40 °C

Storage temperature (T-T)

10 - 50 °C

Operating relative humidity (H-H)

20 - 80%

Storage relative humidity (H-H)

20 - 80%

Weight & dimensions

Weight

500 g

Receiver dimensions (WxDxH)

126 x 52 x 119 mm

Transmitter dimensions (WxDxH)

285 x 64 x 187 mm

Packaging data

Package dimensions (WxDxH)

354 x 175 x 333 mm

Packaging content

AC adapter included

Y

Cables included

HDMI,RS-232

Manual

Y

Mounting kit

Y

Technical details

Sustainability certificates

RoHS
