Pc/hd Scaler

Introduction

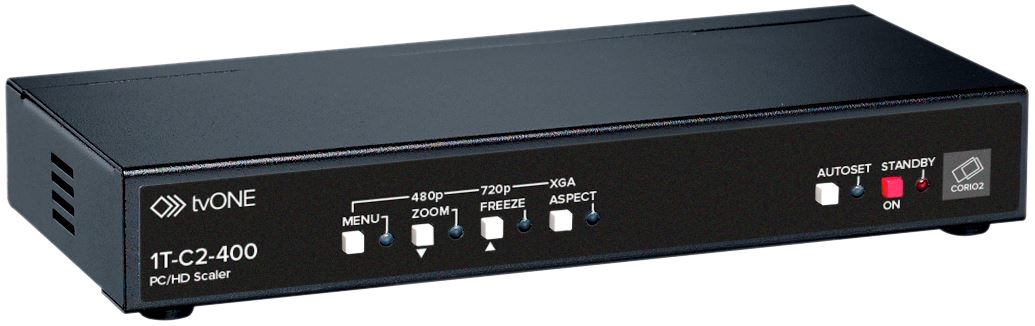

1T-C2-400 PC/HD Scaler is based on TV One’s exclusive CORIO2™ technology and provides bidirectional, high quality conversion between Computer and HDTV signals in a compact package. Both input and output support any computer resolution up to 2048x2048 at any vertical refresh rate and all HDTV resolutions up to 1080p. Cross conversion within formats is also supported. The wide variety of computer signal formats available support PC, Mac and Workstation formats as well as analog HDTV display devices.

All the functions can be controlled via the front panel Push Buttons, an Infrared Control Remote Unit or via an RS-232 connection. A Windows Control Panel is provided and most third party control systems interface directly with the entire C2 range of products. An On- Screen Display is available to assist in setup. Variable Zoom to 10X allows you to enlarge any part of the video image to fill the entire computer screen. The full bandwidth chroma sampling insures faithfully reproduced, high resolution colors.

Features

Product colour

Black

Rack mounting

Y

On/off switch

Y

Control type

Buttons

Video

Supported video modes

1080p

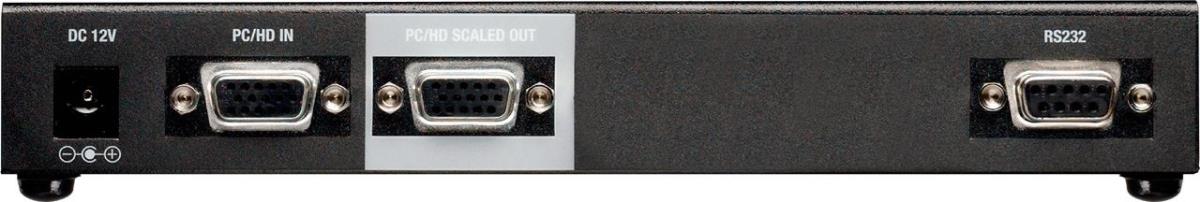

Ports & interfaces

VGA (D-Sub) input ports

1

RS-232 output ports

1

Weight & dimensions

Width

200 mm

Depth

90 mm

Height

30 mm

Weight

500 g

Technical details

Sustainability certificates

RoHS

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-10 - 70 °C

Operating relative humidity (H-H)

10 - 85%

Storage relative humidity (H-H)

10 - 85%

Certificates

Certification

FCC, CE, UL, CUL, CE, PSE, GS
