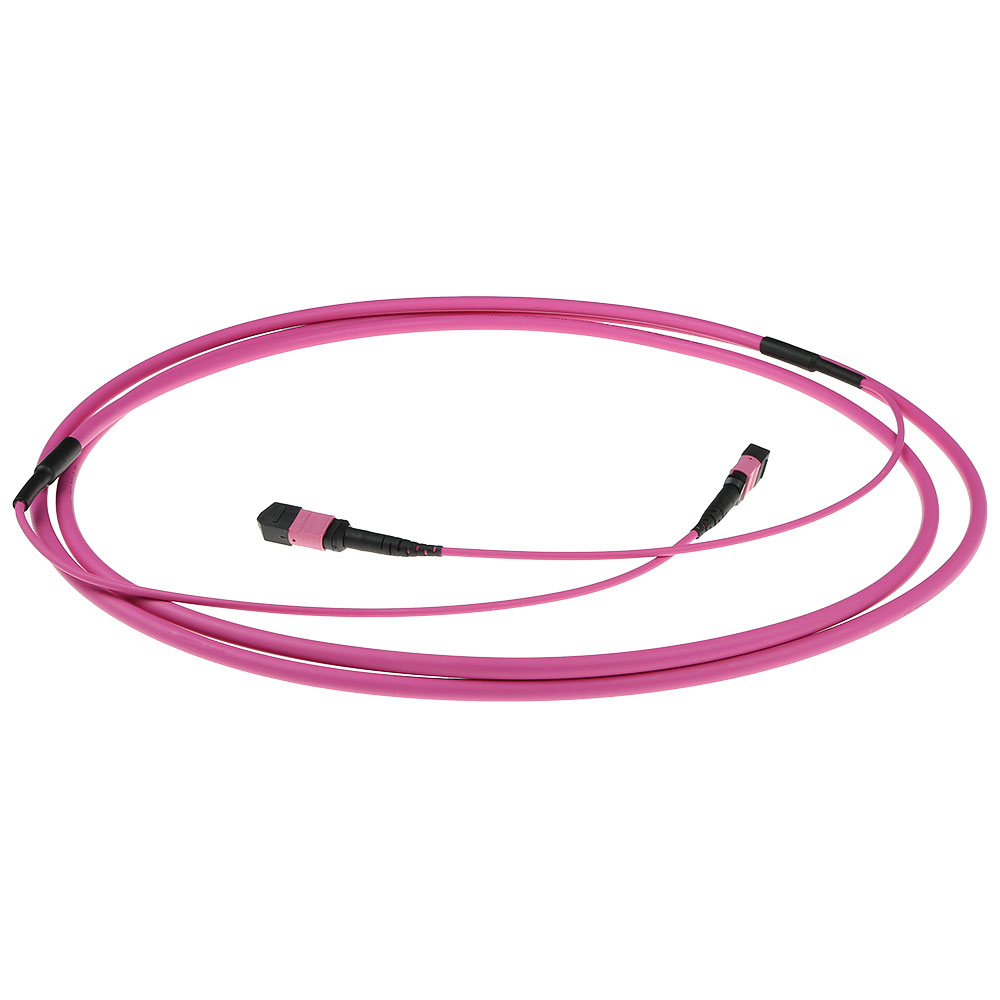

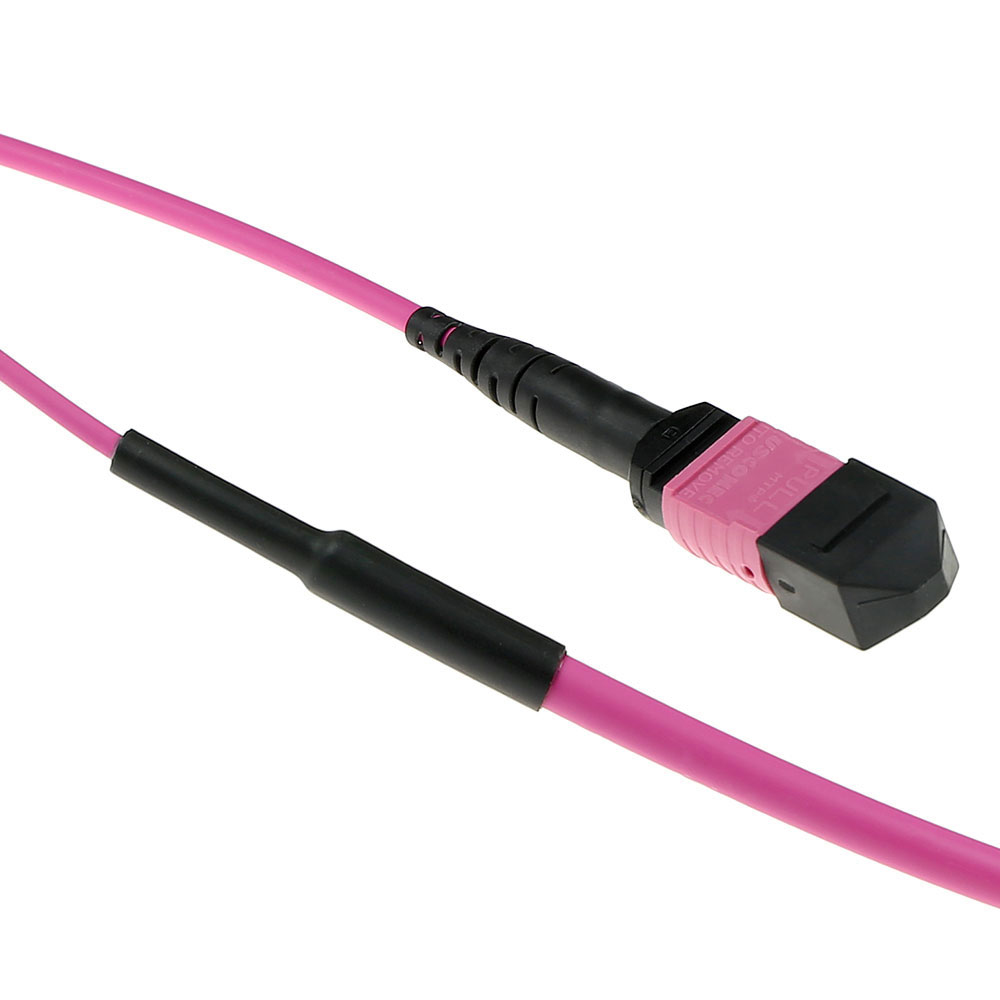

Fiber Trunk Cable - MTP/MPO Female Connectors - Multimode 50/125 OM4(OM3) Polarity A - 25m - Erika Violet

Fiber Trunk Cable - MTP/MPO Female Connectors - Multimode 50/125 OM4(OM3) Polarity A - 25m - Erika Violet

Part Number:
DC5000
Language:
UK
 Without VATWith VAT
Base Price:€224,76€271,96
Total:€224,76€271,96

Introduction

USP

- Ultra compact and extra protected by using 12 fibers in a 6.5mm trunk cable and one MTP connector at each end, so very suitable for datacenters
- ACT MTP/MPO cables use MTP US Conec connectors for among other benefits a very low loss and better mechanical properties
- Designed to be used with QSFP transceivers or as backbone cabling
- The OM4 fibers in these cables are backwards compatible with OM3 fibers

Features

Cable length

25 m

Connector 1

MPO/MTP

Connector 2

MPO/MTP

Connector 1 gender

Female

Connector 2 gender

Female

Fibre optic type

OM3/OM4

Product colour

Violet

Core diameter

50 m

Cladding diameter

125 m

Fiber mode structure

Multi-mode

Insertion loss

0.35 dB

Return loss

20 dB

Jacket material

Low smoke fire retardant zero halogen (LSFRZH), Low smoke zero halogen (LSZH)

Operational conditions

Operating temperature (T-T)

-20 - 70 C

Storage temperature (T-T)

-40 - 80 C

Weight & dimensions

Cable diameter

6.5 mm

Weight

1.04 kg
