ANTEC
Sp 1300 Platinium - Ec Psu 1300 Watts

Sp 1300 Platinium - Ec Psu 1300 Watts

Part Number:
0-761345-11707-4
Language:
UK
 Without VATWith VAT
Base Price:€274,08€331,63
Recupel:+ €0,06+ €0,07
Total:€274,14€331,71

Introduction

Equipped with superior features that ensure peak performance for the enthusiast and gaming-oriented segment, the Signature power supply Series boasts unparalleled stability and 80 PLUS® Platinum-certified efficiencies. Advanced thermal control with the Zero RPM mode enables the optimal balance between silence and cooling. The CircuitShieldT suite of industrial-grade protections ensures that the power delivered to your system is safe and reliable in any environment. Signature Series are a great choice for a reliable and efficient PC system for gamers and professionals.

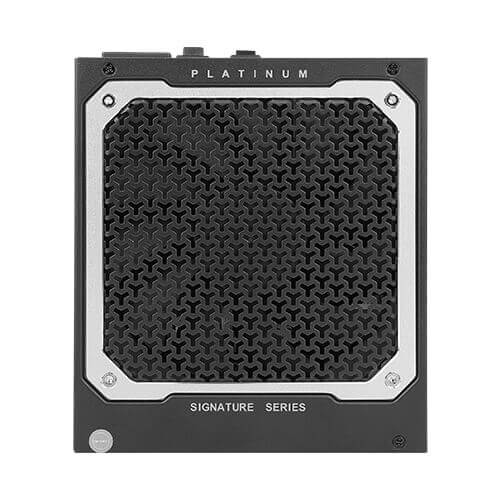

FDB 135mm Silent Fan
Featuring whisper-quiet, fluid dynamic bearing 135mm fan provides high airflow with durability and longevity.

Zero RPM Mode
The Zero RPM fan mode further ensures a longer-lasting and quieter system by using thermal sensors to activate the fan only when you need it.

100% Top-Grade Japanese Capacitors
Achieve unprecedented tight voltage regulation & low ripple & noise to maximize your system's performance.

PhaseWave Design
A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology.

OC Link Feature
Allows 2 Signature PSUs to work in tandem to power the most demanding systems.

10-year Warranty
This new PSU line from Antec pushes the standard for excellence with the circuit shield suite of industrial protections and is backed by a 10-year warranty.

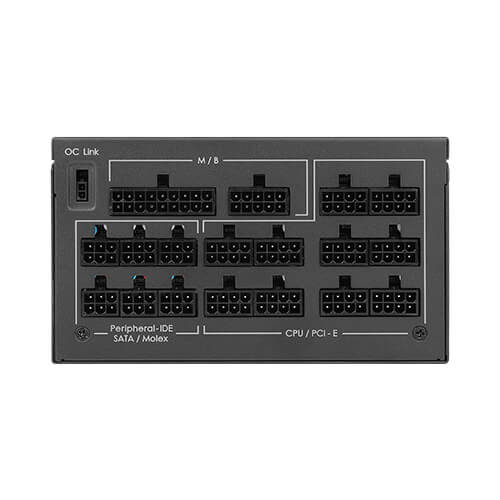

Full Modular Cable Management
Enables users to use only the cables which are needed and help clear out excess cables that can obstruct and reduce airflow.

Power

Total power

1300 W

AC input voltage

100 - 240 V

AC input frequency

47 - 63 Hz

Input current

15 - 7.5 A

Maximum input current (@110V)

7.5 A

Maximum input current (@220V)

15 A

Power Factor Correction (PFC) type

Active

Combined power (+3.3V)

125 W

Combined power (+12V)

1296 W

Combined power (+5V)

125 W

Combined power (-12V)

3.6 W

Combined power (+5Vsb)

15 W

Max output current (+3.3V)

25 A

Max output current (+12V)

108 A

Max output current (+5V)

25 A

Max output current (-12V)

0.3 A

Max output current (+5Vsb)

3 A

Hold time

500 ms

Efficiency

89%

Power protection features

Over current, Over power, Over voltage, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector

20+4 pin ATX

Number of SATA power connectors

14

Peripheral (Molex) power connectors (4-pin)

5

EPS power connector (4+4 pin)

Y

PCI Express power connectors (6+2 pin)

12

Floppy drive power connector

1

Cabling type

Modular

Performance

80 PLUS certification

80 PLUS Platinum

Purpose

PC/Server

Power supply unit (PSU) form factor

ATX

Silent mode

Y

Bearing technology

FDB

Certification

CB, CE, FCC, BSMI, TUV, cTUVus, 3C, KC, RCM

Design

Product colour

Black

Cooling type

Active

Fan diameter

13.5 cm

Number of fans

1 fan(s)

Fan location

Top

On/off switch

Y

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Packaging content

Cables included

AC, CPU, PCIe, Peripheral (Molex), SATA

Weight & dimensions

Width

150 mm

Depth

170 mm

Height

86 mm

Weight

2.12 kg

Packaging data

Package weight

4.05 kg

Other features

Harmonized System (HS) code

84733020
