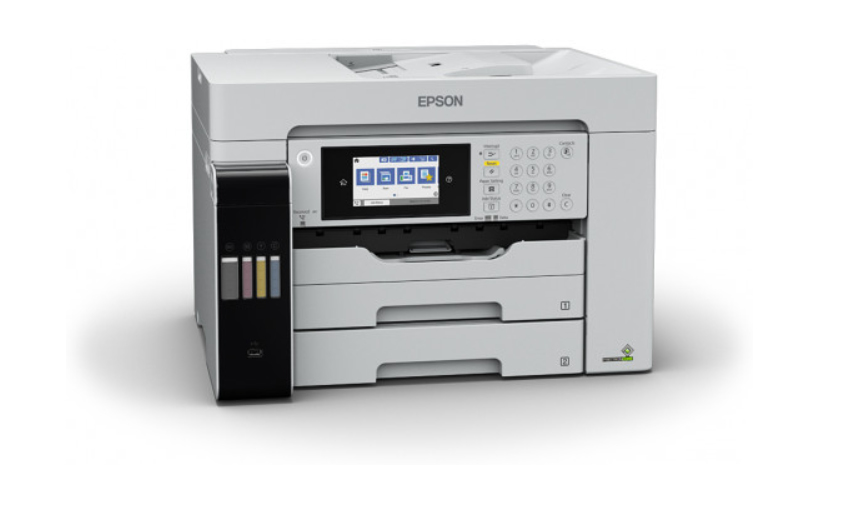

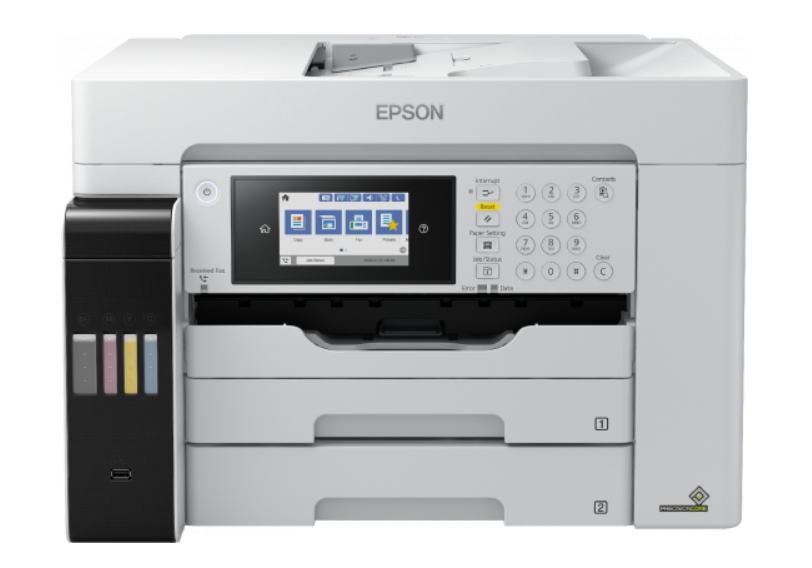

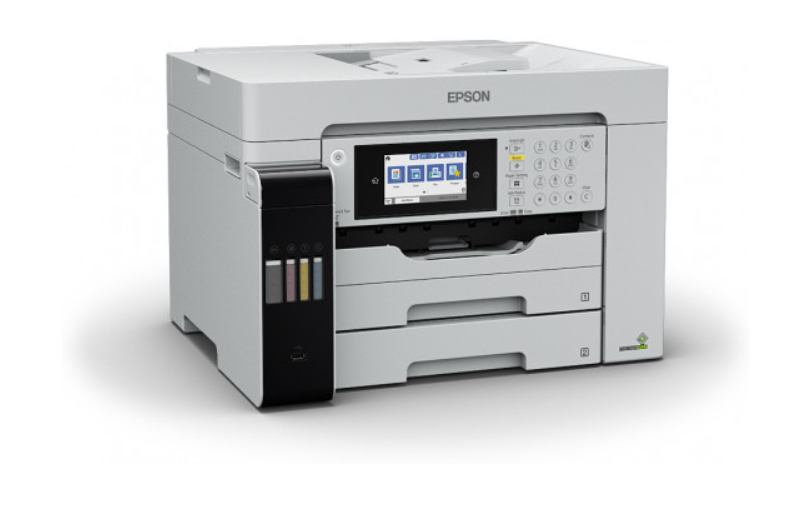

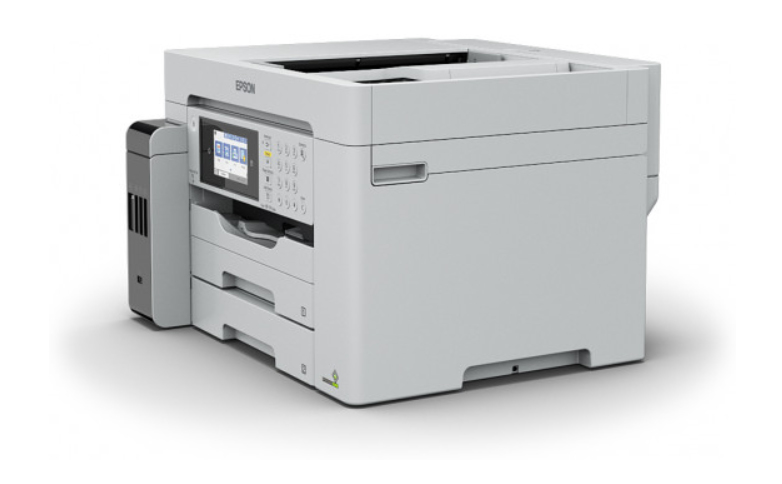

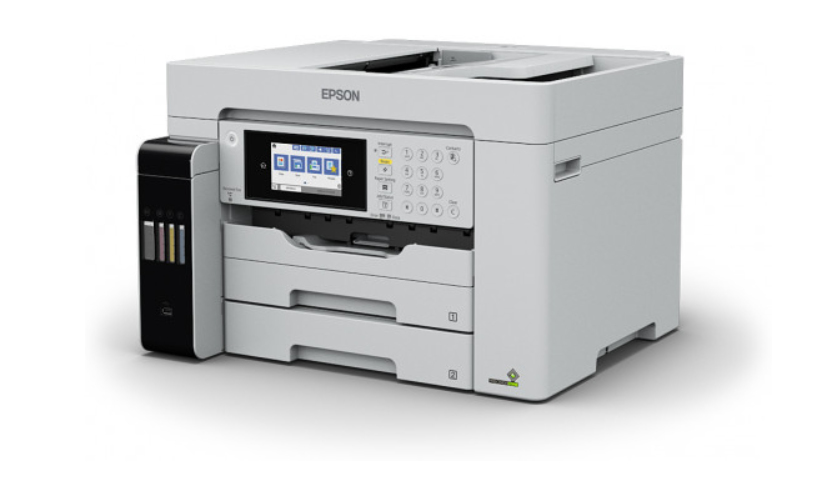

Ecotank Pro Et-16680 - Color Multifunction Printer - Inkjet - A3 - USB / Ethernet / Wi-Fi

Introduction

Print, scan, copy and fax with this easy-to-use EcoTank Pro Wi-Fi printer, that delivers an exceptionally low cost-per-page and reduces your energy consumption thanks to Heat-Free technology. With fast print and scan speeds, A3 and A4 jobs can be accomplished quickly. Using Open Platform, seamlessly integrate a variety of software solutions into existing IT infrastructure to improve efficiency.

Keep on saving
Save every time you print with the ET-16680. Thanks to low-cost ink bottles, benefit from incredibly low costs-per-page. Epson's Heat-Free technology keeps energy consumption down to a minimum, saving on energy bills.

Time-saving features
The ET-16680 offers a first page out time of just 5.5 seconds¹ and print speeds up to 25 pages per minute. The automatic document feeder can scan up to 26 images per minute.

Advanced software solution compatibility
A variety of software solutions can be integrated into existing IT infrastructure to improve efficiency. This includes Epson Remote Services (ERS) which offers cloud-based device monitoring and management system that delivers advanced remote diagnostics for Epson business products.

Low user intervention
Minimising refills, this EcoTank Pro can print thousands of pages before needing more ink. Two trays offer a capacity of 500-sheets. Free yourself from manual page loading with a generous 50-sheet rear feed and ADF.

Easy to use and reliable
Selecting features is easy with the LCD colour touchscreen. And refilling the large front ink tanks is simple with the resealable, intuitive and drip-free ink bottles.

Print from almost anywhere
It's easy to print from mobiles, tablets and laptops using the ET-16680 With Wi-Fi and Wi-Fi Direct, you can send documents to print from smart devices using the Epson iPrint app.

Printing

Duplex printing mode

Auto

Print technology

Inkjet

Printing

Colour printing

Duplex printing

Y

Maximum resolution

4800 x 1200 DPI

Print speed (ISO/IEC 24734) black

25 ppm

Print speed (ISO/IEC 24734) colour

25 ppm

Duplex print speed (black, normal quality, A4/US Letter)

21 ppm

Duplex print speed (colour, normal quality, A4/US Letter)

21 ppm

Duplex print speed (ISO/IEC 24734) mono

11.5 ipm

Duplex print speed (ISO/IEC 24734) colour

6 ipm

Duplex print speed (ISO/IEC 24734, A4) black

21 ppm

Duplex print speed (ISO/IEC 24734, A4) colour

21 ppm

Time to first page (black, normal)

5.5 s

Time to first page (colour, normal)

5.5 s

Copying

Duplex copying

Y

Copying

Colour copying

Maximum copy resolution

1200 x 1200 DPI

Scanning

Duplex scanning

Y

Scanning

Colour scanning

Optical scanning resolution

1200 x 1200 DPI

Optical scanning resolution (ADF)

1200 x 1200 DPI

Scanner type

ADF scanner

Scan to

Cloud

Scan speed (black)

26 inch/min

Scan speed (colour)

9 inch/min

Image formats supported

BMP, JPEG, TIFF, PNG

Document formats supported

PDF

Fax

Duplex faxing

Y

Faxing

Colour faxing

Fax transmission speed

3 sec/page

Modem speed

33.6 Kbit/s

Auto-redialing

Y

Fax forwarding

Y

Fax forwarding to

E-mail, PC

Error Correction Mode (ECM)

Y

Features

Maximum duty cycle

66000 pages per month

Duplex functions

Print, Scan

Ink tank system

Y

Number of print cartridges

4

Printing colours

Cyan, Magenta, Pigment black, Yellow

Page description languages

PCL 5e,PCL 6

Country of origin

Indonesia

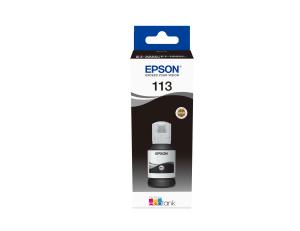

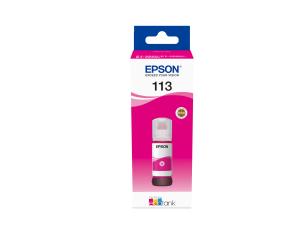

Replacement cartridges

113 EcoTank Pigment

Input & output capacity

Total number of input trays

3

Total input capacity

250 sheets

Total output capacity

125 sheets

Auto document feeder (ADF)

Y

Auto document feeder (ADF) input capacity

50 sheets

Maximum input capacity

550 sheets

Paper handling

Maximum ISO A-series paper size

A3

Paper tray media types

Envelopes, Letterhead, Thick paper, Thin paper

ISO A-series sizes (A0...A9)

A3,A3+,A4,A5,A6

ISO B-series sizes (B0...B9)

B5,B6

Non-ISO print media sizes

Legal, Letter

Envelopes sizes

10,C4,C6,DL

Paper tray media weight

64 - 255 g/m²

Ports & interfaces

Direct printing

Y

USB port

Y

Optional connectivity

Ethernet, USB 2.0, Wireless LAN

Network

Wi-Fi

Y

Ethernet LAN

Y

Cabling technology

10/100Base-T(X)

Wi-Fi standards

802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)

Security algorithms

64-bit WEP,128-bit WEP,WPA-PSK,WPA-TKIP,WPA2-PSK,WPA2-AES

Mobile printing technologies

Epson Connect,Epson iPrint,Epson Email Print,Epson Remote Print,Apple AirPrint

Performance

Sound pressure level (printing)

52 dB

Sound power level (printing)

6.7 dB

Design

Product colour

Black, Grey

Market positioning

Business

Built-in display

Y

Display

LCD

Display diagonal

10.9 cm (4.3")

Touchscreen

Y

Control type

Buttons, Touch

Colour display

Y

Power

Power consumption (average operating)

19 W

Power consumption (copying)

19 W

Power consumption (ready)

9.7 W

Power consumption (sleep)

0.7 W

Power consumption (off)

0.15 W

Energy Star Typical Electricity Consumption (TEC)

0.13 kWh/week

AC input voltage

220 - 240 V

AC input frequency

50/60 Hz

System requirements

Windows operating systems supported

Windows 10,Windows 10 x64,Windows 7,Windows 7 x64,Windows 8,Windows 8 x64,Windows 8.1,Windows 8.1 x64,Windows Vista,Windows Vista x64,Windows XP Professional x64,Windows XP

Mac operating systems supported

Y

Server operating systems supported

Windows Server 2003,Windows Server 2008,Windows Server 2012,Windows Server 2016

Mobile operating systems supported

Android, iOS 5.0, iOS 6.0, iOS 6.1, iOS 7.0, iOS 7.1, iOS 7.2, iOS 8.0, iOS 8.1, iOS 8.2, iOS 8.3, iOS 8.4, iOS 8.8, iOS 9.0, iOS 9.1, iOS 9.3

Weight & dimensions

Width

515 mm

Depth

976 mm

Height

521 mm

Weight

21 kg

Packaging data

Package width

560 mm

Package depth

590 mm

Package height

440 mm

Package weight

24.6 kg

Quantity per pack

1 pc(s)

Packaging content

Cartridge(s) included

Y

Included cartridge capacity (black)

7500 pages

Cables included

AC

Drivers included

Y

Warranty card

Y

Bundled software

Epson Device Admin (EDA), Epson Scan 2, Epson ScanSmart, Epson Status Monitor, EpsonNet Config

Logistics data

Products per pallet

8 pc(s)

Products per pallet (UK)

8 pc(s)

Other features

Printing method

Epson PrecisionCore

Compatible operating systems

Android, Citrix XenApp 5.0, Citrix XenApp 6.0, Citrix XenApp 6.x, Citrix XenApp 7.6 und höher, Citrix XenApp 7.x, Citrix XenApp Version 6.5, Citrix XenApp Version 7.6, Citrix XenDesktop Version 7.6, Linux, MAC OS 10.15 + or later, Mac OS 10.10.x, Mac OS 10.11, Mac OS 10.2+, Mac OS 10.3+, Mac OS 10.4+, Mac OS ab Version 10.4.11 (nur Epson Scan), Mac OS 10.5+, Mac OS 10.5.8 oder höher, Mac OS 10.5.8 oder höher (Treiber muss von der Epson Website heruntergeladen werden), Mac OS 10.5.9, Mac OS 10.6+, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Mac OS X, Mac OS X 10.11.x, Mac OS X 10.11.x oder höher, Mac OS X 10.12, Mac OS X 10.12.x, Mac OS X 10.13.x, Mac OS X 10.6.8, Mac OS X 10.6.8 or later, Windows 10 (32/64 bit), Windows 7 (32/64 bit), Windows 8 (32/64 Bit), Windows 8.1 (32/64 bit), Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016, Windows Vista (32/64 Bit), Windows XP Professional x64 Edition SP2 or later, Windows XP SP3 or later (32-bit), Windows Server 2003 R2, Windows Server 2003 SP2 or later, Windows XP Professional x64 Edition, iOS 5.0+, iOS 6.0+, iOS 7

Ink drop

3.8

Fax polling

Y

Print head nozzles

800 nozzles black, 800 nozzles per colour

Supported network protocols

HTTPS, IPv4, IPv6, SNMP

Noise level

52 dB
