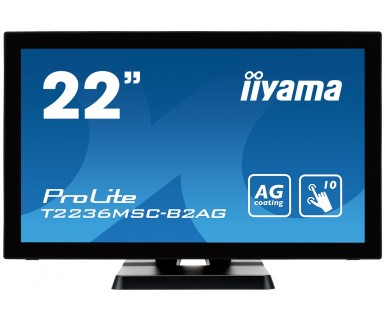

Touch Monitor - ProLite T2236MSC-B2AG - 22in - 1920x1080 (FHD) - Black

Introduction

22" 10 point touch monitor with edge-to-edge glass and Anti Glare coating

With its Full HD (1920x1080) resolution and accurate Projective Capacitive 10 point touch technology, the ProLite T2236MSC delivers seamless and accurate touch response. The AMVA panel technology guarantees high performance with excellent colour reproduction and high contrast, making it an excellent choice for a vast array of demanding interactive applications. The Anti Glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. Its flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience.

Touch technology - Capacitive

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (gloved or not) and magnetic ball.

AMVA

AMVA technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.

AG Coating

The Anti Glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.

Scratch resistance

Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

Speakers

This LED monitor is equipped with two high quality stereo speakers.

Display

Display diagonal

54.6 cm (21.5")

Display resolution

1920 x 1080 pixels

Display type

LED

Display technology

A-MVA

Native aspect ratio

16:9

Aspect ratio

16:9

Response time

8 ms

Display brightness

215 cd/m²

Contrast ratio (typical)

3000:1

Pixel pitch

0.248 x 0.248 mm

Horizontal scan range

30 - 80 kHz

Vertical scan range

56 - 75 Hz

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Display viewable area (HxV)

268.1 x 476.6 mm

Separate H/V sync

Y

Backlight type

LED

Contrast ratio (dynamic)

12000000:1

Display diagonal (metric)

55 cm

3D

N

Supported graphics resolutions

640 x 480 (VGA),800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1440 x 900,1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080)

Display number of colours

16.78 million colours

Design

Product colour

Black

Performance

Touch technology

Multi-touch

Touchscreen technology

Projected capacitive system

Number of simultaneous touchpoints

10

Built-in speaker(s)

Y

RMS rated power

4 W

Number of speakers

2

Built-in camera

N

Number of OSD languages

9

On Screen Display (OSD) languages

Simplified Chinese, German, English, Spanish, French, Italian, Japanese, Portuguese, Russian

OmniTapps Multitouch compatibility

N

Windows operating systems supported

Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64

Plug and Play

Y

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

5

HDMI

Y

HDMI ports quantity

1

VGA (D-Sub) ports quantity

1

DVI port

Y

DVI-D ports quantity

1

Audio input

3.5mm

PC Audio in

Y

Ergonomics

Tilt angle range

-5 - 90°

Tiltable

Y

Panel mounting interface

100 x 100 mm

Wall mountable

Y

Cable lock slot

Y

VESA mounting

Y

Power

Energy efficiency class (SDR)

F

Energy consumption (SDR) per 1000 hours

19 kWh

Power supply type

AC

Power consumption (typical)

23 W

AC input voltage

100-240 V

AC input frequency

50 - 60 Hz

Energy efficiency scale

A to G

Operational conditions

Operating temperature (T-T)

5 - 35 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

20 - 80%

Storage relative humidity (H-H)

10 - 90%

Certificates

Certification

CE, TÜV-Bauart, CU

Weight & dimensions

Width (without stand)

52.2 cm

Depth (without stand)

5.7 cm

Height (without stand)

31.6 cm

Width (with stand)

522.5 mm

Depth (with stand)

367 mm

Height (with stand)

254 mm

Weight (with stand)

5.8 kg

Dimensions (W x D x H) with stand

522.5 x 367 x 254 mm

Packaging content

Cables included

AC, Audio (3.5mm), DVI, USB, VGA

Quick start guide

Y

Other features

Power management

Y
