Large Format Monitor - Multisync M861/86 - 86in - 3840x2160 (uhd)

Introduction

Intuitive professional content delivery
Great first impressions can make all the difference; presenting your business in the best possible way will boost your brand. With slim, modern styling, 24/7 operation and high haze panel to reduce reflections when ambient light is high, the M series is the professional way to deliver your message, yet at an attractive price point.

With the optional NEC MediaPlayer or the more powerful Intel® Smart Display Module (Intel® SDM) computing device, you are primed and ready for intuitive signage creation delivering real-time media playback for exceptional visual experiences. For advertising, infotainment and meeting room applications, the M Series provides powerful, upgradable functionality and all the aesthetic appeal to effortlessly reflect your brand credentials.

Display

Panel type

IPS

LED backlight

Yes

LED backlighting type

Direct-LED

Display diagonal

2.18 m (86")

Display technology

LCD

Display resolution

3840 x 2160 pixels

Display brightness

500 cd/m²

HD type

4K Ultra HD

Native aspect ratio

16:9

Response time

8 ms

Contrast ratio (typical)

8000:1

Display number of colours

1.073 billion colours

Display diagonal (metric)

217.4 cm

Horizontal scan range

15 - 135 kHz

Vertical scan range

23 - 76 Hz

Haze rate

28%

Ports & interfaces

HDMI ports quantity

3

HDMI input ports quantity

2

HDMI output ports quantity

1

DisplayPorts quantity

2

DisplayPorts in

2

DisplayPorts out

1

USB port

Yes

USB ports quantity

3

USB version

2.0

Ethernet LAN

Yes

Ethernet LAN data rates

100 Mbit/s

Audio

Built-in speaker(s)

Yes

Number of built-in speakers

2

RMS rated power

10 W

Design

Product design

Digital signage flat panel

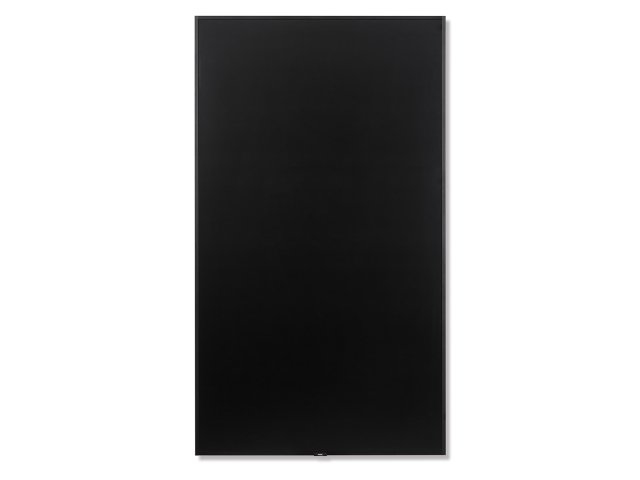

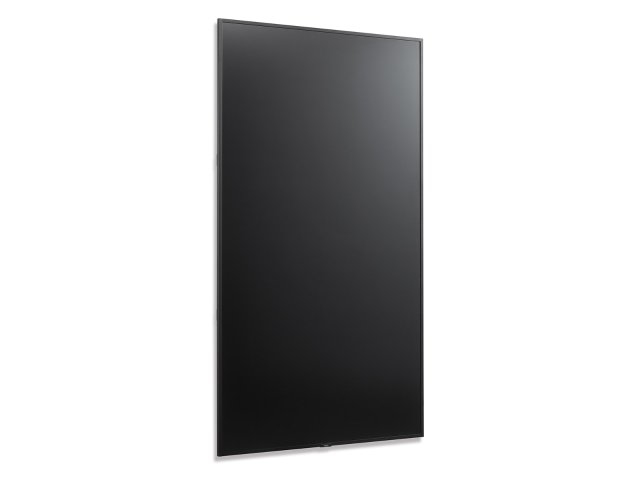

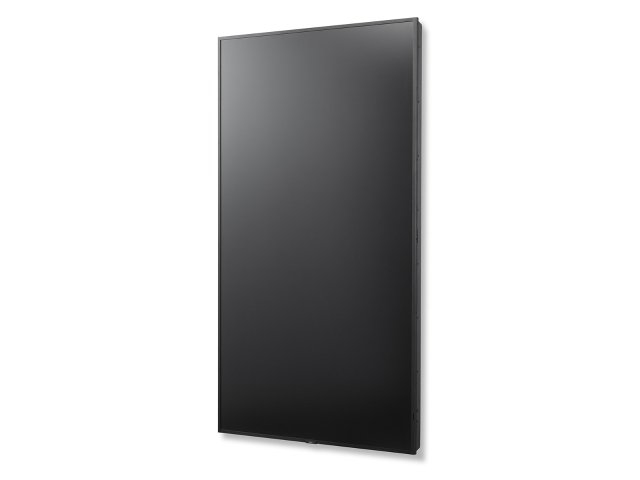

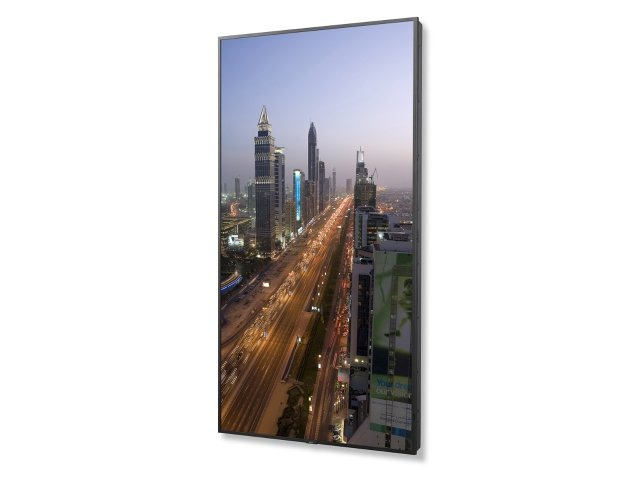

Orientation

Horizontal/Vertical

Product colour

Black

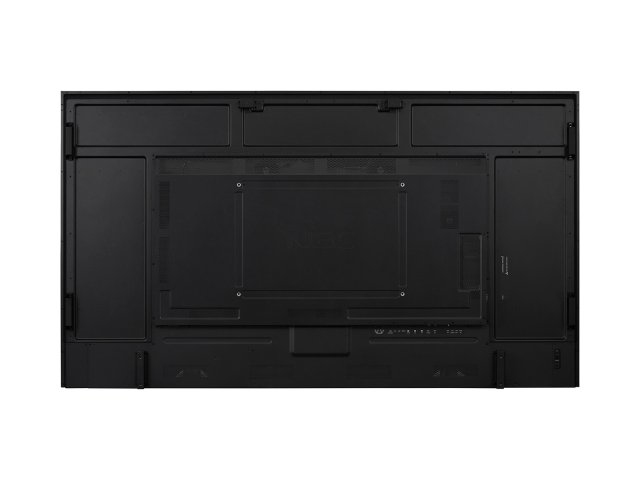

VESA mounting

Yes

Panel mounting interface

600 x 400 mm

Bezel width (bottom)

1.48 cm

Bezel width (side)

1.43 cm

Bezel width (top)

1.43 cm

Performance

Purpose

Universal

Operating hours (hours/days)

24/7

HDCP

Yes

Power

Power consumption (typical)

320 W

Energy efficiency class (SDR)

G

Energy consumption (SDR) per 1000 hours

193 kWh

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Weight & dimensions

Width

1927.6 mm

Depth

83.2 mm

Height

1099.1 mm

Weight

47 kg

Packaging data

Package width

2090 mm

Package depth

225 mm

Package height

1225 mm

Package weight

65.1 kg

Packaging content

Remote control included

Yes

Batteries included

Yes

Cables included

HDMI, Power

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

20 - 80%

Storage temperature (T-T)

-20 - 60 °C

Storage relative humidity (H-H)

10 - 80%
