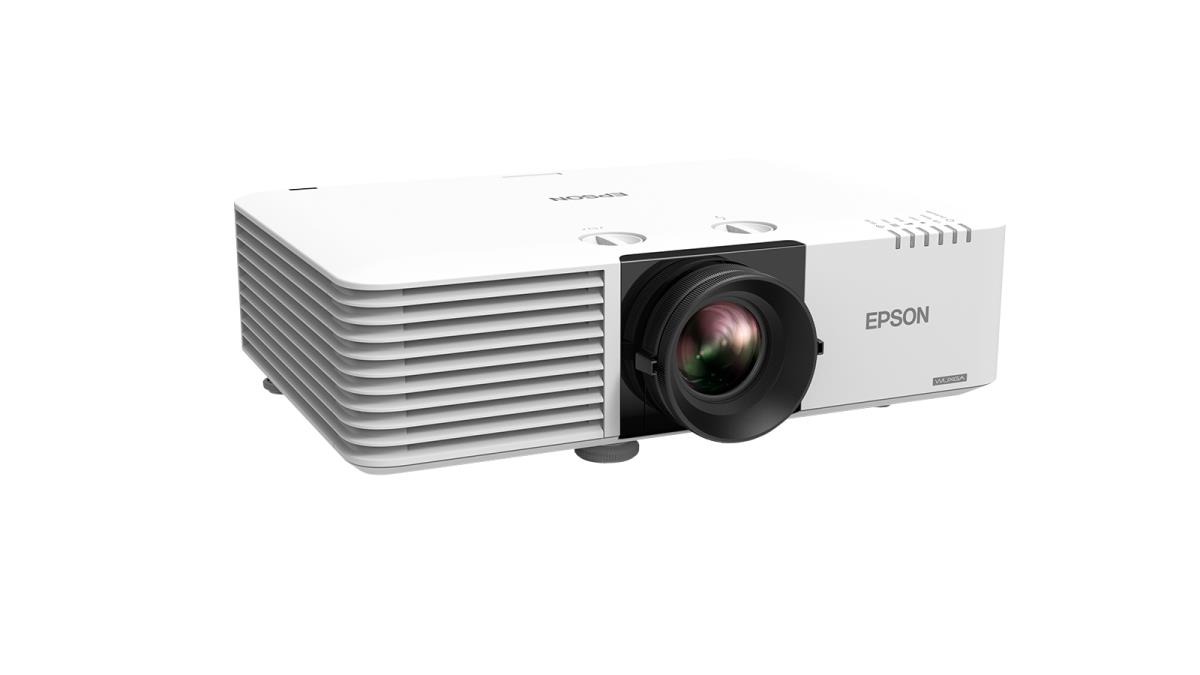

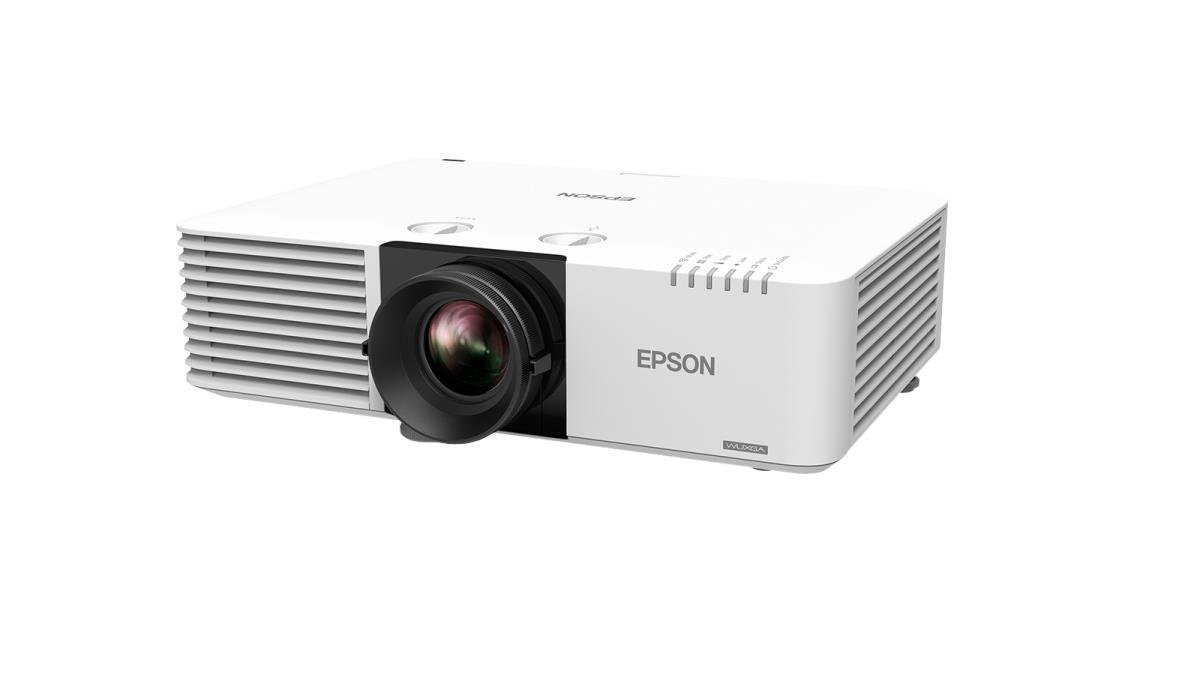

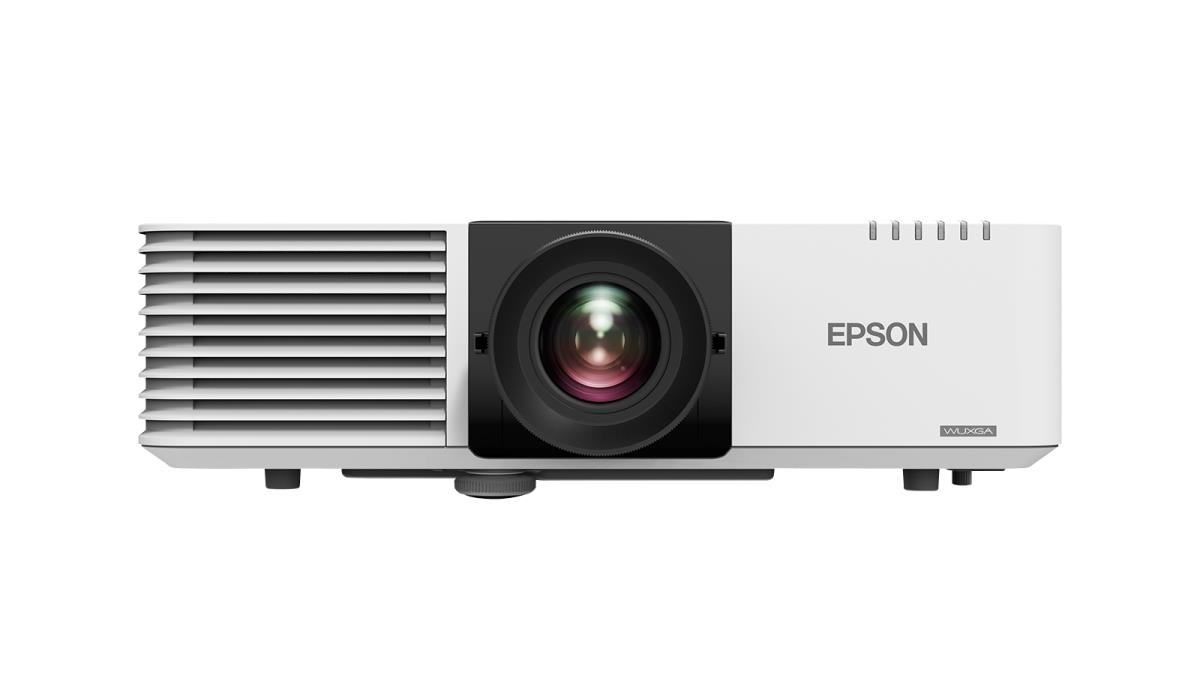

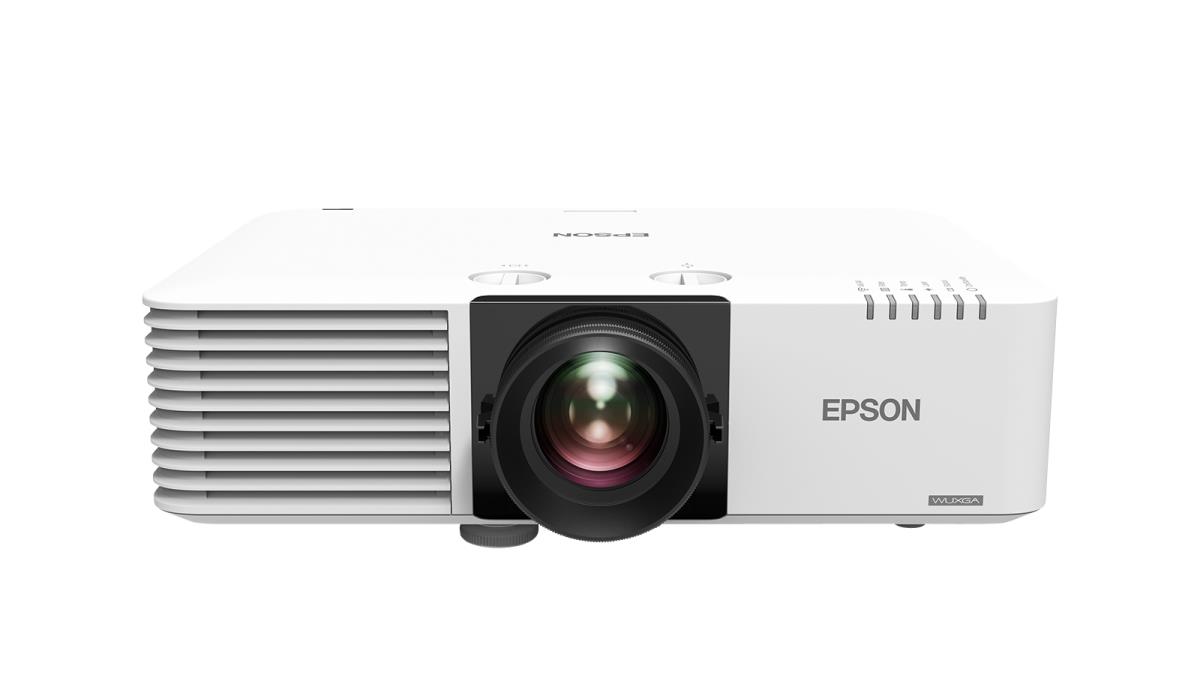

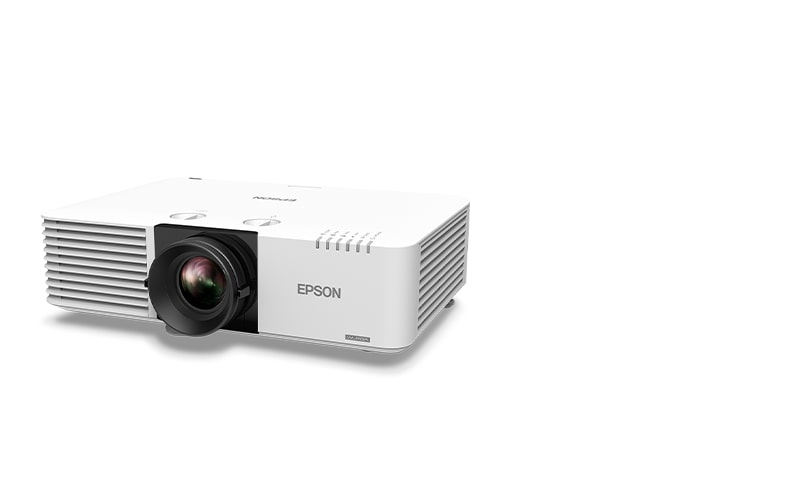

Eb-l630su - Projector - LCD - 6000 Lm - Wuxga - USB / Wi-Fi / Hdmi

Projector

Screen size compatibility

1270 - 5080 mm (50 - 200")

Projection distance

0.9 - 3.5 m

Projection distance (wide)

0.9 - 3.5 m

Projector brightness

6000 ANSI lumens

Projection technology

3LCD

Projector native resolution

WUXGA (1920x1200)

Contrast ratio (typical)

2500000:1

Native aspect ratio

16:10

Number of colours

1.07 billion colours

Projector brightness (economic mode)

4200 ANSI lumens

Matrix size

1.7 cm (0.67")

Keystone correction, vertical

-30 - 30°

Keystone correction, horizontal

-30 - 30°

Light source

Light source type

Laser

Service life of light source

20000 h

Service life of light source (economic mode)

30000 h

Lens system

Focus

Manual

Focal length range

11.76 mm

Fixed focal length

1.18 cm

Zoom capability

Y

Zoom type

Auto

Zoom ratio

1.35:1

Throw ratio

0.80:1

Horizontal lens shift range

-20 - 20%

Vertical lens shift range

-50 - 50%

Video

Analog signal format system

Not supported

Full HD

Y

3D

N

Video processing

10 bit

Video colour modes

Cinema, Dynamic, Presentation, sRGB, DICOM simulation mode, Multi-projection

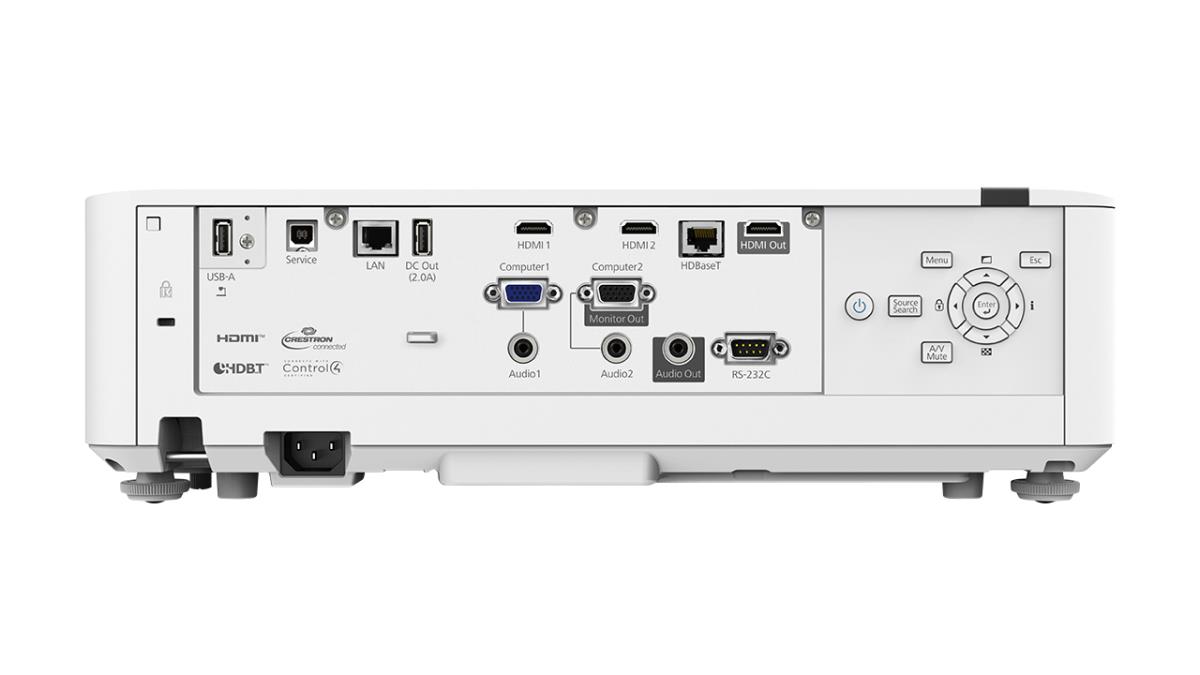

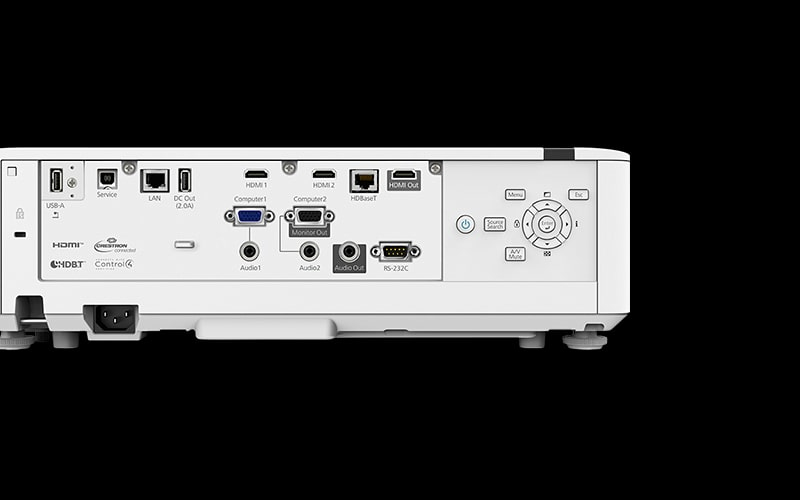

Ports & interfaces

USB 2.0 ports quantity

2

USB 2.0 Type-B ports quantity

1

Audio (L/R) in

1

Serial interface type

RS-232C

VGA (D-Sub) ports quantity

3

HDMI ports quantity

3

DVI port

N

Network

Ethernet LAN

Y

Ethernet LAN data rates

10,100,1000 Mbit/s

Wi-Fi

Y

Wi-Fi standards

802.11b,802.11g,Wi-Fi 4 (802.11n)

Miracast

Y

Storage

Card reader integrated

N

Features

Noise level (economic mode)

27 dB

HDCP

Y

Noise level

38 dB

Country of origin

Philippines

Password protection

Y

Multimedia

Built-in speaker(s)

Y

RMS rated power

10 W

Number of built-in speakers

1

Design

Market positioning

Presentation

Product type

Standard throw projector

Product colour

White

Placement

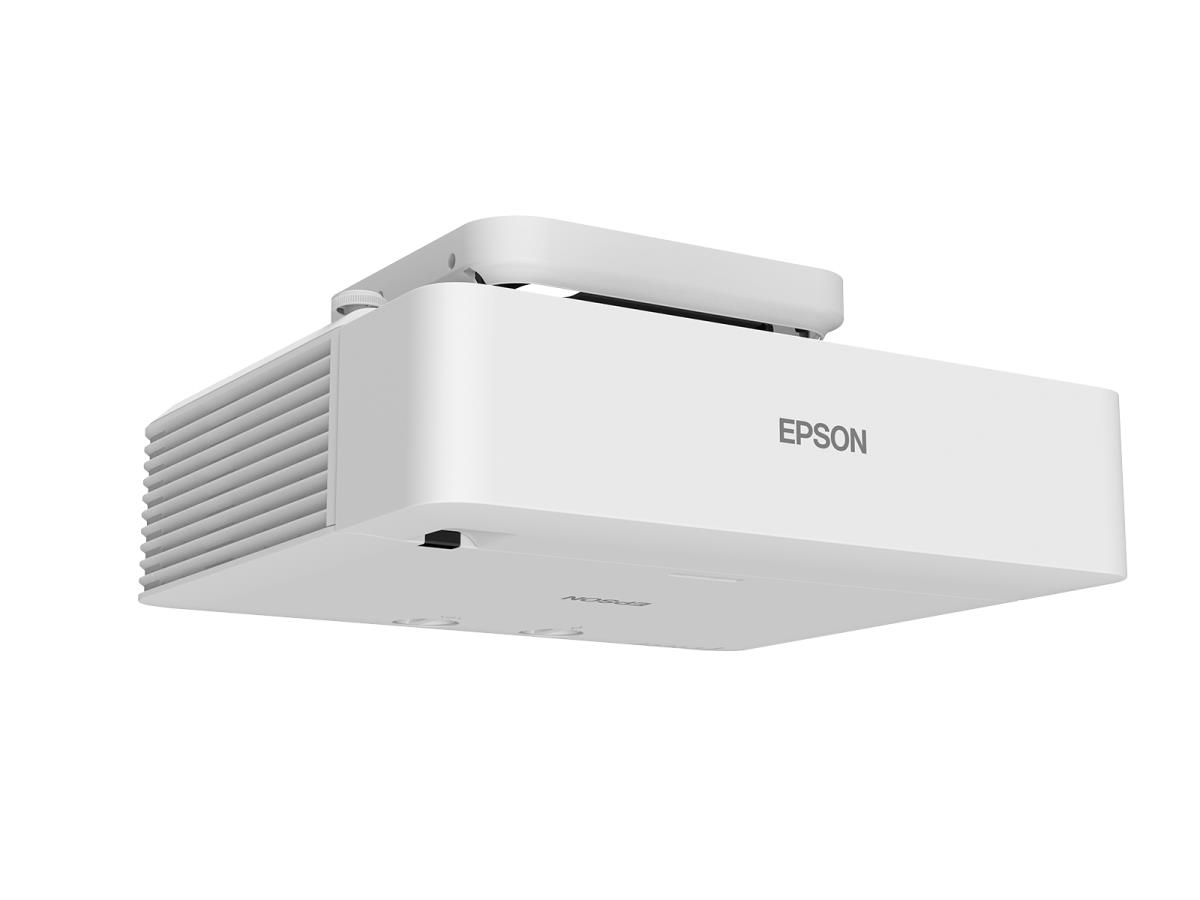

Ceiling, Desktop

Cable lock slot

Y

Cable lock slot type

Kensington

Display

Built-in display

N

Power

Power source

AC

Power consumption (typical)

345 W

Power consumption (standby)

0.3 W

Power consumption (economy mode)

258 W

AC input voltage

100-240 V

AC input frequency

50/60 Hz

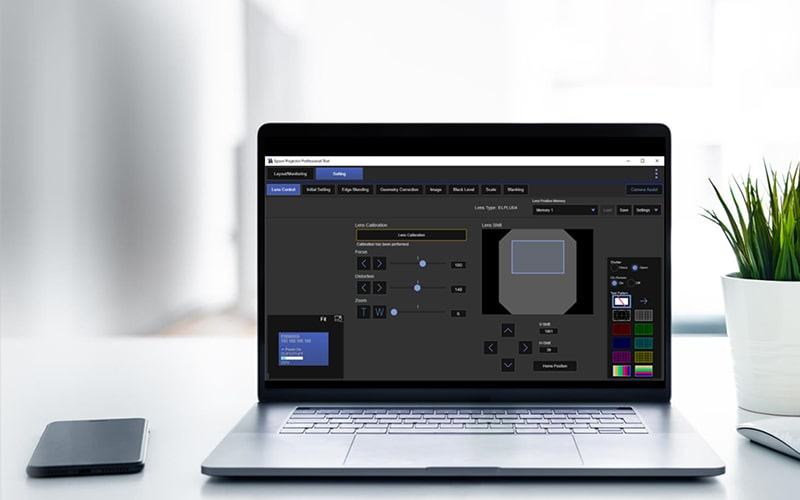

Software

Software support

via: Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol

Operational conditions

Storage temperature (T-T)

-10 - 60 °C

Operating relative humidity (H-H)

20 - 80%

Storage relative humidity (H-H)

10 - 90%

Weight & dimensions

Width

440 mm

Depth

334 mm

Height

136 mm

Weight

8.4 kg

Package width

540 mm

Package depth

560 mm

Package height

210 mm

Package weight

12.3 kg

Packaging content

Remote control included

Y

Batteries included

Y

Cables included

AC

Manual

Y

Warranty card

Y

WLAN adapter included

Y

Packaging content

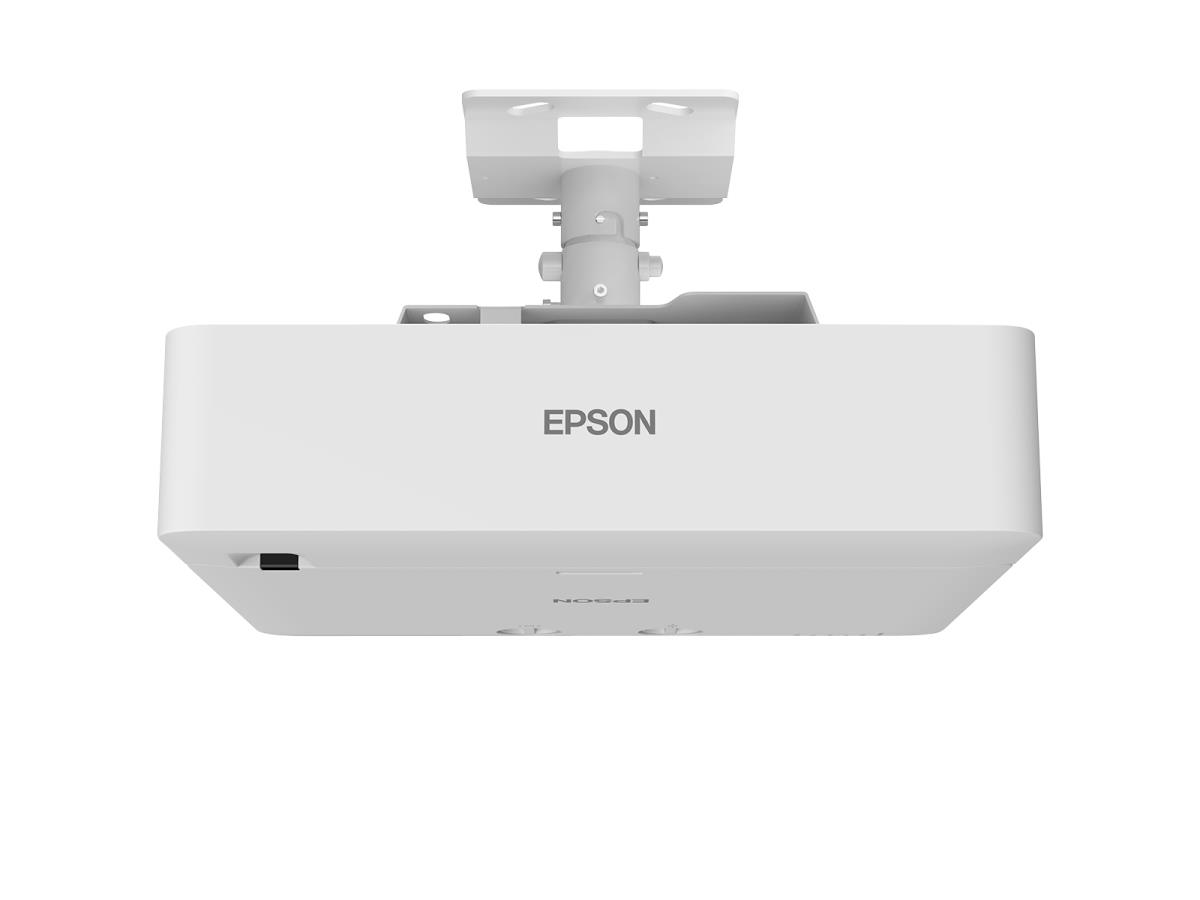

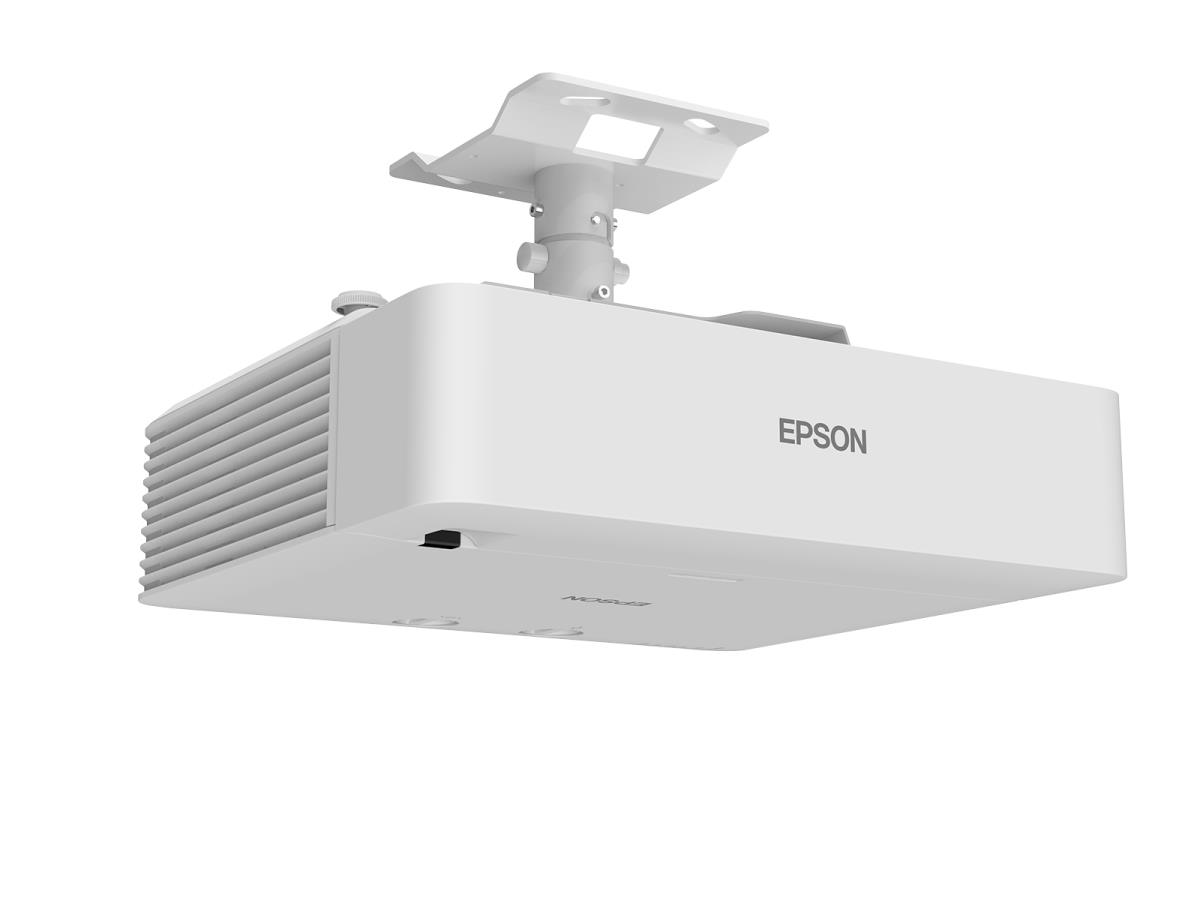

MB22 ceiling mount

Logistics data

Quantity per pack

1 pc(s)

Products per pallet

14 pc(s)

Products per pallet (UK)

14 pc(s)

Other features

Supported network protocols

HTTPS, IPv6, SNMP, ESC/VP.net, PJLink
