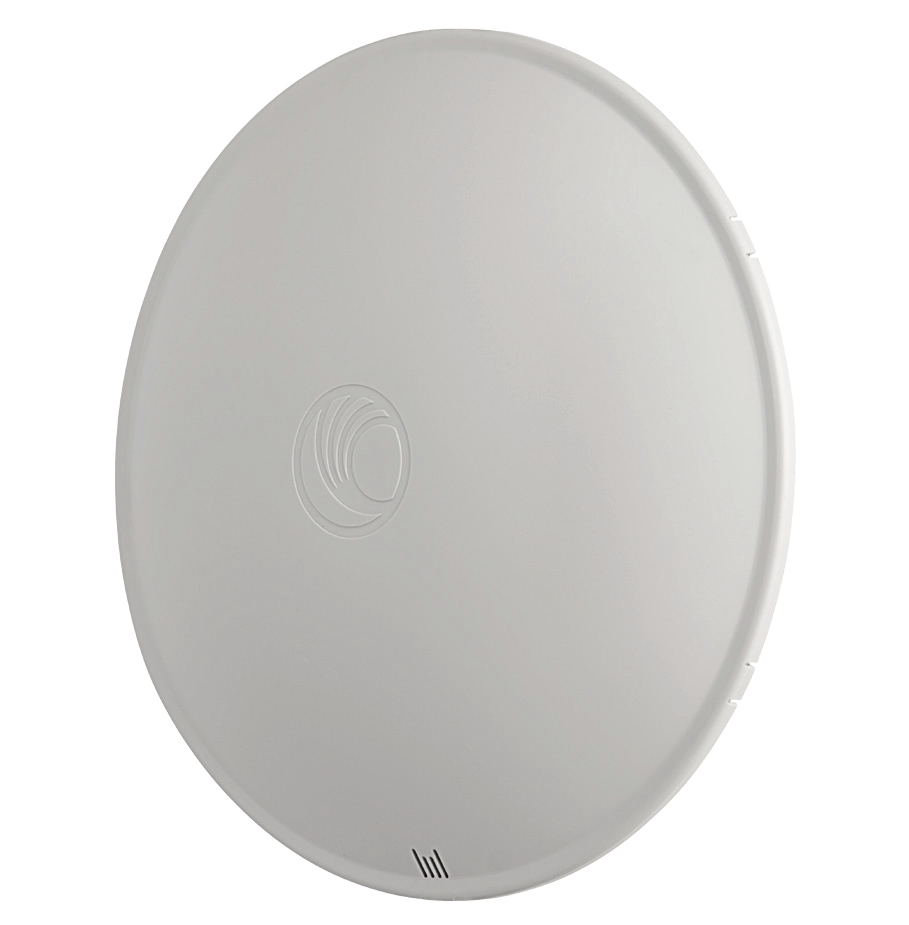

Epmp 5 GHz Force 200ar5-25 High Gain Radio (eu)

Introduction

Wireless service providers and enterprises around the globe are challenged to deliver reliable connectivity in overcrowded RF environment. As spectrum increasingly becomes a scarce commodity, finding the right broadband connectivity solution is vital for all low and high density types of deployments.
Cambium Networks resolves this challenge with a breakthrough technology solution that delivers superior performance, resiliency and reach in the most congested environments. The ePMP Force 200 high gain integrated solution enhances range and improves throughput in high interference environments. ePMP Force 200 is a completely redesigned solution from Cambium Networks that combines a highly integrated, high performance radio with a high gain dish antenna. The radio supports a gigabit Ethernet interface in order to provide maximum throughput. Operating in the 2.4 and 5 GHz frequency spectrum, the solution brings wireless broadband connectivity to customers over longer distances and provides a superior return on investment.

Performance

Frequency band

5 GHz

Networking standards

IEEE 802.1Q, IEEE 802.1p

Cabling technology

10/100/1000Base-T(X)

Modulation

BPSK

Antenna gain level (max)

25 dBi

Features

Antenna type

MIMO directional antenna

International Protection (IP) code

IP55

Survival wind speed

145 km/h

Isolation

25 dB

Mounting pipe

64 - 76 mm

Product colour

White

Power

Power consumption (max)

10 W

Input voltage

10 - 30 V

Operational conditions

Operating temperature (T-T)

-30 - 60 °C

Weight & dimensions

Depth

280 mm

Diameter

47 cm

Weight

2.3 kg

Packaging content

Quantity per pack

1 pc(s)
