Wireless Access Point Dis-2650ap Ac1200 Wave 2 Industrial Indoor

Introduction

The Enabler of Future Industry
D-Link is enabling the success of Industry X.0, Smart Cities and Intelligent Transport Systems through ruggedized, built-to-last and super reliable solutions. Discover how our Industrial Switch Solutions can facilitate your success too.

Enter The Connectivity Fast Lane
Empowered by 802.11ac Wave 2 Wi-Fi and boasting high-power external antennas, the DIS-2650AP provides triple the speeds of legacy 802.11n devices. It easily surpasses the Gigabit hurdle with dual-band speeds of up to 1200 Mbps, and meanwhile, the indispensable MU-MIMO feature handles more data sources simultaneously, essential in any device or sensor-dense area.

An Industrial AP That Comes Fully Equipped

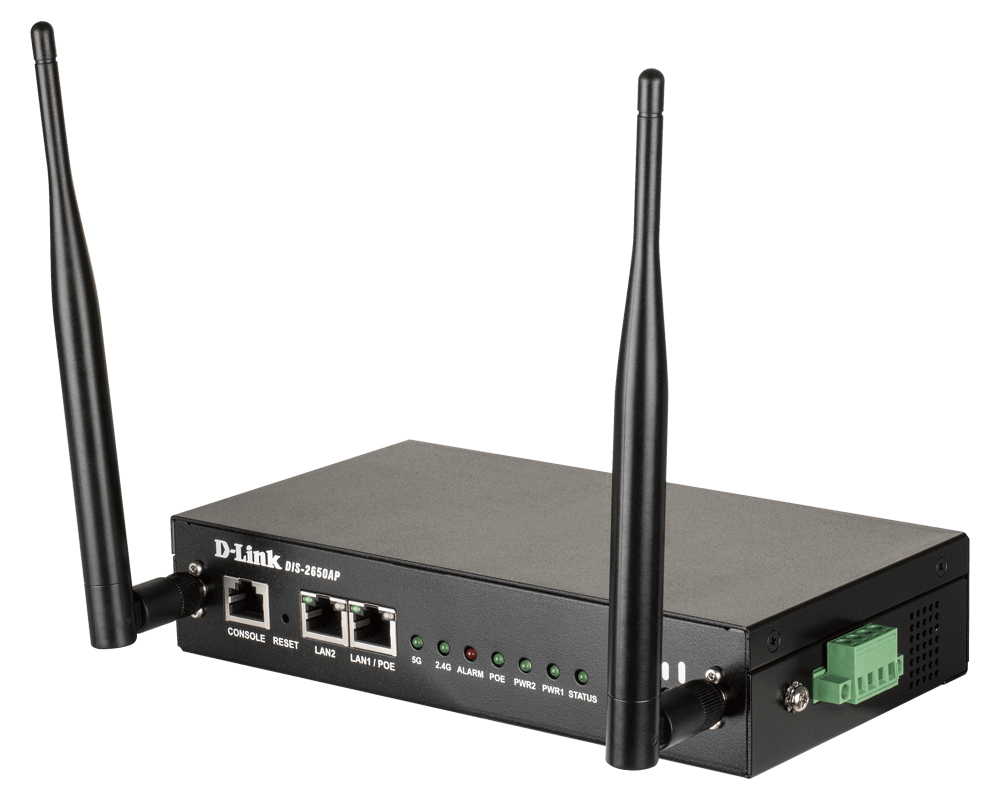

The DIS-2650AP can hit the ground running with its fully equipped interface: two dual-band antennas ensure fast and far-reaching coverage. Two LAN ports, with support for PoE offers a stable wired backhaul connection. The included terminal block facilitates power supply redundancy for unbroken operation and lastly the Wi-Fi Signal Indicator ensures you’re always achieving peak coverage.

Designed with Resilience, Built to Last
The slick metal casing with an IP30 rating protects the device from the typical hazards of industrial areas. Wide temperature tolerance of -20 to 65? keeps mission-critical data flowing even in the heat of the summer or the coldest of winters. Finally, easily install on a standard DIN rail or mount on the wall.

Ticks All The Boxes For Industrial Use
The DIS-2650AP complies with International Electrotechnical Commission (IEC) international standards for industry use. This makes it ideal for enduring the harsher environments of light industry applications to support future industry X.0 initiatives such as smart factories, intelligent transportation or smart cities.

Free Nuclias Connect Remote Centralized Management Software
D-Link’s Nuclias Connect is a centralized management and analytics solution that brings convenience, control, customizability and cost-effective scaling to SMB (small-medium-sized business) networks. It enables network monitoring, management, and device configuration through a single, easy-to-use software interface.

What’s more – it’s free to download and there are no licensing or support fees. Easily manage your network, anytime, anywhere.

Potential Applications
The DIS-2650AP is designed to form a vital part of network infrastructure in scenarios such as Smart Cities, city-wide surveillance, Smart Parking or Smart Factories.

Features

2.4 GHz

Y

5 GHz

Y

Maximum data transfer rate

1200 Mbit/s

Maximum data transfer rate (2.4 GHz)

300 Mbit/s

Maximum data transfer rate (5 GHz)

866 Mbit/s

Ethernet LAN data rates

10,100,1000 Mbit/s

Networking standards

IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3ab,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u

Security

Security algorithms

64-bit WEP,128-bit WEP,SSID,SSL/TLS,WPA,WPA2

Management features

Web-based management

Y

Ports & interfaces

Ethernet LAN (RJ-45) ports

2

Power

Power over Ethernet (PoE)

Y

Power consumption (max)

14.478 W

Design

Placement

Wall

Product colour

Black

Certification

FCC, CE, LVD

Antenna

Antenna type

External

Antenna direction type

Omni-directional

Antennas quantity

2

Antenna gain level (max)

3 dBi

Operational conditions

Operating relative humidity (H-H)

10 - 90%

Operating temperature (T-T)

-20 - 65 °C

Storage temperature (T-T)

-40 - 80 °C

Storage relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

196.2 mm

Depth

105.9 mm

Height

40 mm

Weight

785 g

Packaging data

Number of products included

1 pc(s)
