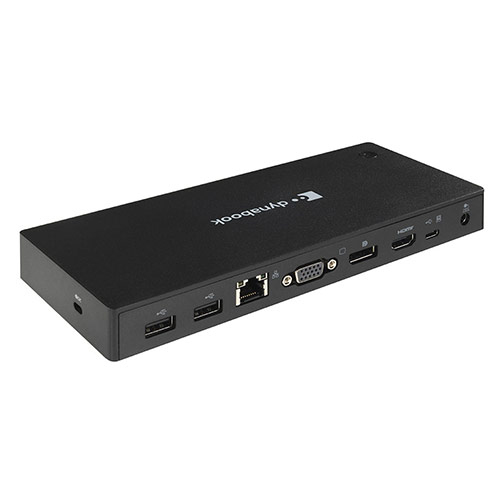

Dynadock - USB-c Black - Power Delivery

Introduction

- One cable connection for peripherals - Supports up to 3 displays - Charges the connected laptop (supports up to 65W) - Security lock slot - Built-in power button

Ports & interfaces

Connectivity technology

Wired

Host interface

USB 3.2 Gen 1 (3.1 Gen 1) Type-C

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

PowerShare

Y

HDMI ports quantity

1

VGA (D-Sub) ports quantity

1

DisplayPorts quantity

1

Microphone in

Y

Combo headphone/mic port

Y

Headphone outputs

1

DC-in jack

Y

Network

Ethernet LAN

Y

Ethernet LAN (RJ-45) ports

1

Ethernet LAN data rates

10,100,1000 Mbit/s

Performance

Card reader integrated

Y

Compatible memory cards

SD,SDHC,SDXC

HD type

4K Ultra HD

Maximum digital resolution

3840 x 2160 pixels

Number of displays supported

3

Cable lock slot

Y

Hot-Plug support

Y

Product colour

Black

On/off switch

Y

Display modes

Duplicate, Extended, PC screen only, Second screen only

Plug and Play

Y

Power

Power source type

DC

Power supply

100 W

Output voltage

20 V

Output current

5 A

Weight & dimensions

Width

84.4 mm

Depth

234 mm

Height

30 mm

Packaging data

Quantity per pack

1 pc(s)

Packaging content

Warranty card

Y

Cables included

AC, USB Type-C

AC adapter included

Y

User guide

Y

Other features

Minimum system requirements

A computer with an USB Type-C™ port which supports video output and power delivery
