Sfp Transceiver Module Multimode 2 Km

Introduction

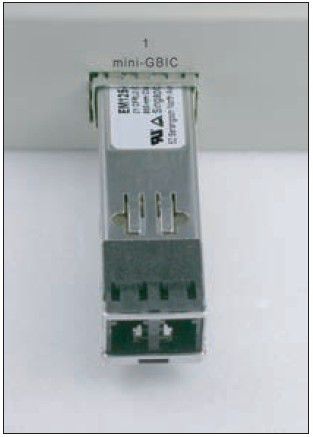

KTI provides a variety of optional Small Form-Factor Pluggable (SFP), which is also known as Mini-GBIC, fiber transceivers for the switches equipped with SFP connectors.The following information describes the specification of each SFP part, and it also indicates their applications in different KTI networking products.

Performance

SFP transceiver type

Fiber optic

Maximum data transfer rate

100 Mbit/s

Interface type

SFP

Multi-mode fiber (MMF) supported

Y

Fiber optic connector

LC

Maximum transfer distance

2000 m

Wavelength

1310 nm

Tx power (min)

-20 dBmW

Tx power (max)

-14 dBmW

Rx power (min)

-31 dBmW

Rx power (max)

-8 dBmW

Fiber ports quantity

2

Features

Plug and Play

Y

Operational conditions

Operating temperature (T-T)

-10 - 70 °C
