Ccr1072-1g-8s+

Introduction

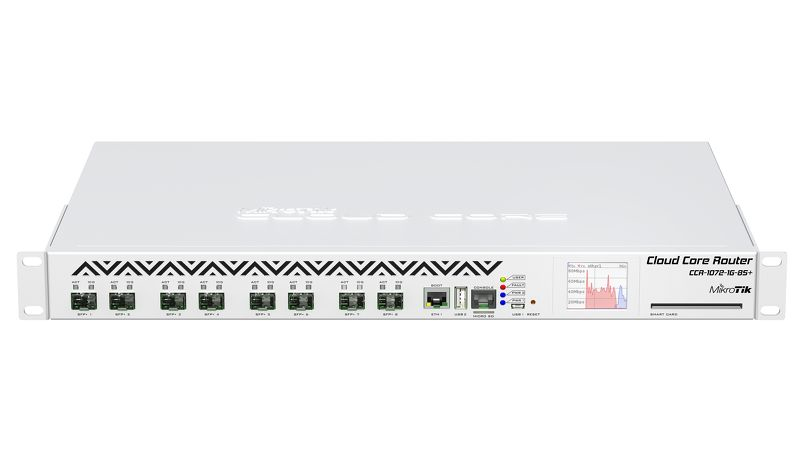

Our new flagship router, the CCR1072, is powered by a Tilera 72 core CPU, each core is clocked at 1GHz, and to fully utilize this power, the CCR1072 is equipped with eight independently connected 10G SFP+ ports and single Ethernet port for management purposes.

The unit comes equipped with installed RouterOS L6, 16GB of built in ECC RAM, touchscreen color LCD, two removable (hotplug) power supplies for redundancy, smart card slot, microUSB, regular size USB, microSD and 2x M.2 slots for additional storage.

Thanks to the unique 72 core processor and ports that are directly connected to the CPU, CCR1072 is capable of over 120 million packets per second throughput.

WAN connection

Ethernet WAN

Y

Network

Ethernet LAN

Y

Ethernet LAN data rates

10,100,1000 Mbit/s

Data transfer rate

10000 Mbit/s

Throughput

80 Gbit/s

Management features

Reset button

Y

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

Installed SFP+ modules quantity

8

USB ports quantity

2

Features

Built-in processor

Y

Processor frequency

1000 MHz

Processor cores

72

Storage media

Flash

Flash memory

128 MB

Internal memory

16384 MB

Compatible memory cards

MicroSD (TransFlash)

Voltage monitoring

Y

Temperature monitoring

Y

Operating system installed

RouterOS

Design

Product colour

White

Rack mounting

Y

Rack capacity

1U

Power

Power consumption (typical)

125 W

Power source type

AC

AC input voltage

100 - 240 V

Operational conditions

Operating temperature (T-T)

-20 - 60 °C

Weight & dimensions

Width

443 mm

Depth

315 mm

Height

44 mm

Weight

3.8 kg

Packaging data

Package weight

5.12 kg
