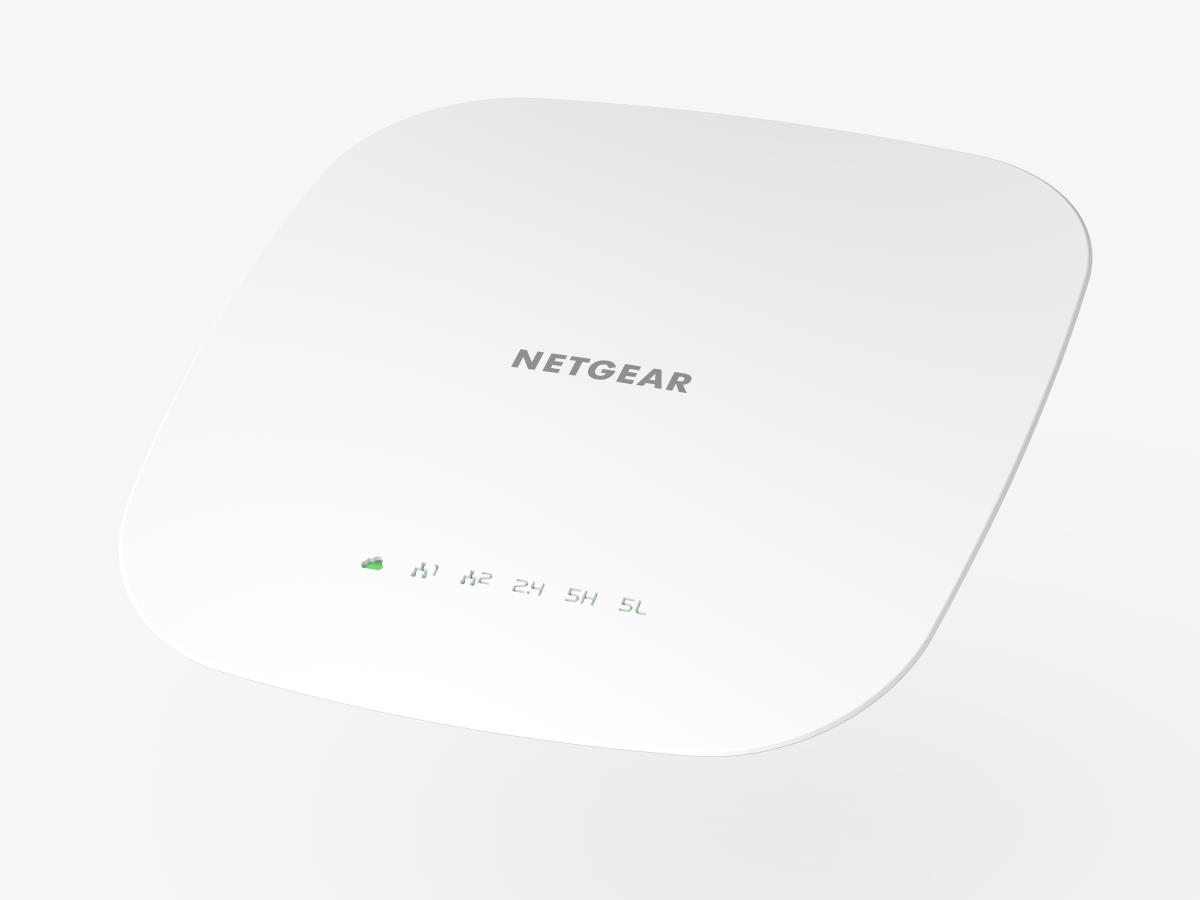

WAC540 Insight Managed Smart Cloud Tri-band 4x4 Wireless Access point

Introduction

The NETGEAR® Insight Managed Smart Cloud Tri-band 4x4 Wireless Access Point WAC540 delivers superior WiFi performance and ultra-high client density for enterprises requiring ubiquitous and reliable wireless for all business applications. The WAC540 is managed by NETGEAR Insight, for a fully centralized Cloud real-time monitoring, with no need for extra management hardware. The WAC540 features 4x4 Multi-User MIMO (MU-MIMO) to achieve aggregate speeds up to 3 Gbps, superior WiFi roaming and comes with 2 Power-over-Ethernet (PoE) 1Gb LAN ports. WAC540 comes with market leading 5-year warranty.

Remote monitoring and management with NETGEAR Insight
- Instant discovery & set-up
- Local and Cloud monitoring and management through the Insight app or Cloud Portal
- Remote access and multi-device configuration
- No additional Cloud controller, appliance, network manager, or PC/server is necessary
- QR code initial configuration for instant installation

Ultimate WiFi performance and roaming for high-density environment
- Tri-band concurrent operation between 2.4GHz and high and low 5GHz frequency ranges
- Maximum performance with multi-gigabit throughput (up to 3 Gbps)
- 4x4 Multi-User MIMO enable concurrent wireless transmit and receive with multiple clients
- Automatic Power and Channel management for seamless roaming and superior coverage and performance
- Load balancing to assure that the clients are evenly spread on the radios and they are all enjoying the best possible WiFi experience.
- Airtime fairness to guarantee reasonable performance for slower clients.
- Beamforming for maximum performance and penetration for all clients.
- Advanced Roaming to ascertain that clients can freely move around the WiFi space conducting voice and video calls without interruption.

Flexible deployment with Power over Ethernet and accessories
- Standard based 802.3at Power over Ethernet (PoE)
- Access Point mode for multiple WAC505 for mid-size office environment
- Ceiling and wall mount for ease of placement

Features

2.4 GHz

Y

5 GHz

Y

Maximum data transfer rate

1733 Mbit/s

Ethernet LAN data rates

10,100,1000 Mbit/s

Throughput data rate

3000 Mbit/s

Networking standards

IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11i,IEEE 802.11k,IEEE 802.11n,IEEE 802.11v,IEEE 802.1x,IEEE 802.3at

Number of users

600 user(s)

Auto MDI/MDI-X

Y

MIMO

Y

MIMO type

Multi User MIMO

Modulation

256-QAM

Fit AP mode features

802.11k & 802.11v smart roaming, Wireless distribution system (WDS)

Wi-Fi Multimedia (WMM)/(WME)

Y

Wi-Fi roaming

Y

WLAN channel features

WLAN channel management

VLAN support

Y

Adaptive bandwidth management

Y

Load balancing

Y

Band steering

Y

Airtime Fairness (ATF)

Y

Security

Security algorithms

EAP-TLS,PEAP,SNMP,SSH,SSID,SSL/TLS,TTLS,WPA,WPA-Enterprise,WPA-PSK,WPA2,WPA2-PSK

MAC address filtering

Y

Service Set Identifier (SSID) features

SSID broadcast on/off

Auto Wireless Distribution System (WDS)

Y

Remote Authentication Dial-In User Service (RADIUS)

Y

Access Control List (ACL)

Y

Management features

Web-based management

Y

Ports & interfaces

Ethernet LAN (RJ-45) ports

2

DC-in jack

Y

Power

Power over Ethernet (PoE)

Y

AC input voltage

12 V

Input current

2.5 A

Power consumption (typical)

25.5 W

Power management

Y

Design

Placement

Ceiling, Wall

Product colour

White

Reset button

Y

LED indicators

LAN, Power, WLAN

Internal

N

Antenna

Antenna type

Internal

Antenna features

Integrated antenna

Antenna gain level (max)

4 dBi

Weight & dimensions

Width

241.5 mm

Depth

241.5 mm

Height

40.2 mm

Weight

752 g

Packaging data

Mounting kit

Y

Package width

296 mm

Package depth

292 mm

Package height

108 mm

Package weight

1.3 kg

Logistics data

Master (outer) case width

320 mm

Master (outer) case length

600 mm

Master (outer) case height

278 mm

Master (outer) case gross weight

6.46 kg

Products per master (outer) case

4 pc(s)
