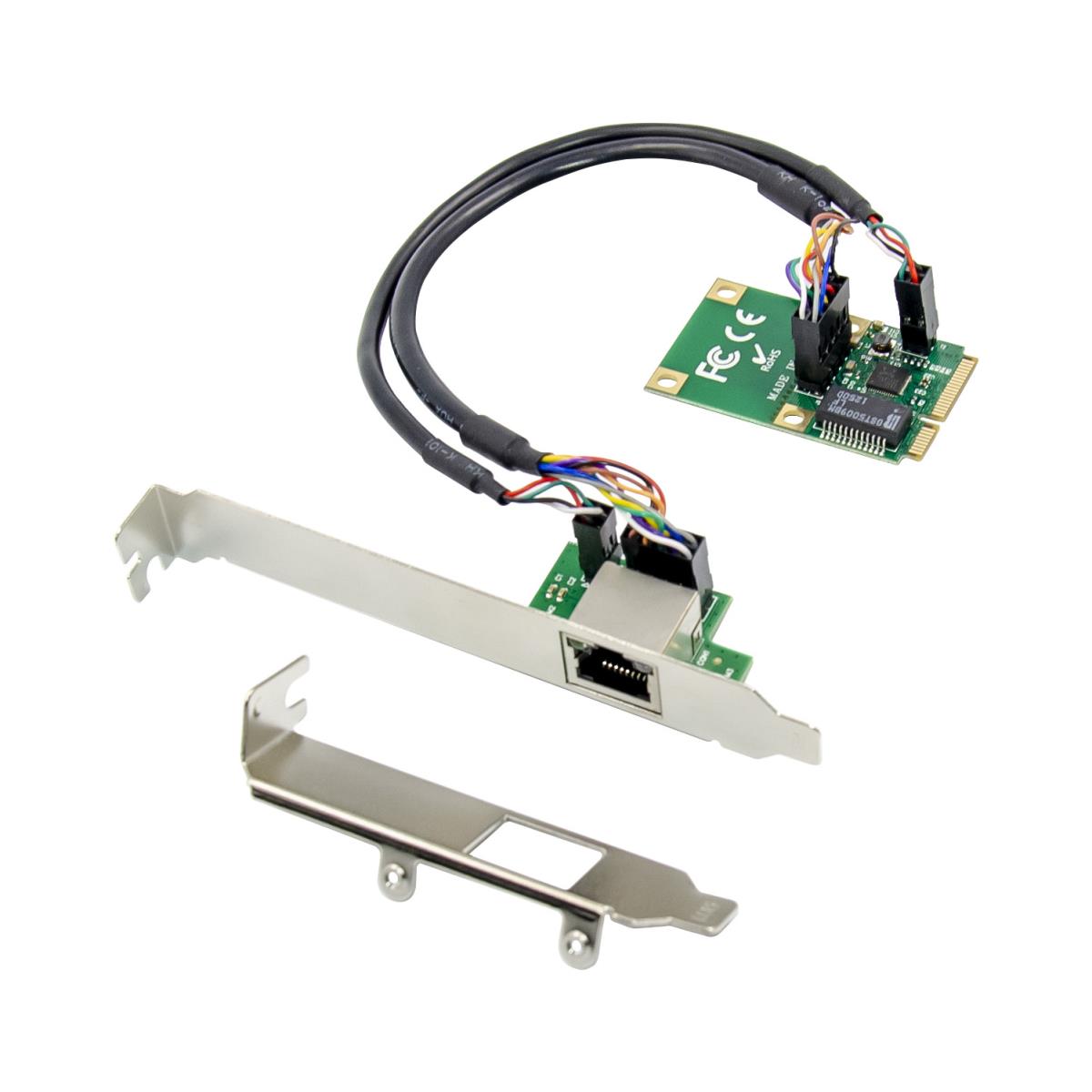

Network Card mini Pci-e X1 Single RJ45 Gigabit Ethernet (PX-NC-10817)

Introduction

The ProXtend PX-NC-10817 is a Mini PCI Express 1.1 (x1) single RJ45 Gigabit network adapter based upon the Realtek RTL8111F chipset, compatible with PCIe x4, x8 and x16 slots. Providing unparalleled networking performance for any PCI Express enabled clients, servers, or workstations. Network Adapter Card supports high performance dual channel networking and maximum data transfer speeds of 1000Mbps in each direction, up to ten times faster than traditional 10/100 Ethernet.

ProXtend PCIe Network Cards offer 100% compatibility with all major vendors, delivering performance and functionality for the most demanding server and desktop applications.

Ports & interfaces

Connectivity technology

Wired

Host interface

Mini PCI Express

Interface

Ethernet

Ethernet LAN (RJ-45) ports

1

PCI version

1.1

PCI Card form factor

Full-height (low-profile)

Network

Maximum data transfer rate

1000 Mbit/s

Networking standards

IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3x,IEEE 802.1p,IEEE 802.1Q

Ethernet LAN

Y

Ethernet interface type

Gigabit Ethernet

Ethernet LAN data rates

10,100,1000 Mbit/s

Cabling technology

10/100/1000BaseT(X)

Jumbo frames support

Y

Jumbo frames

9000

Maximum operating distance

100 m

LAN controller

Realtek RTL8111F

Design

Component for

PC

Internal

Y

Country of origin

China

Certification

CE,ROHS

System requirements

Windows operating systems supported

Windows 7,Windows 8,Windows 10

Mac operating systems supported

Y

Linux operating systems supported

Y

Other operating systems supported

DOS

Server operating systems supported

Windows Server 2008,Windows Server 2012

Sustainability

Sustainability certificates

RoHS
