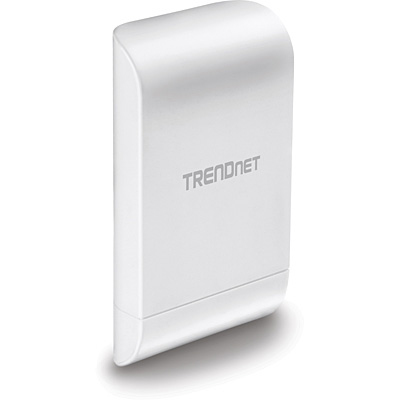

N300 2.4GHz 10dbi Power Outdoor Bridge Kit Poe Acs Point Ip66 (TEW-740APBO2K)

Introduction

TRENDnet’s 10 dBi Wireless N300 Outdoor PoE Preconfigured Point-to-Point Bridge Kit, model TEW-740APBO2K, provides Wireless N300 point-to-point connectivity. This preconfigured kit provides installers the simplest way to create a long distance wireless point-to-point bridge. Conveniently link two locations together with wireless N speed and performance.

Preconfigured Point-to-Point Bridge
Reduce installation and setup time with this preconfigured and pre-encrypted long range wireless bridge kit

PoE Power Adapter
Included power adapter provides power and data over a single Ethernet cable with a maximum distance of 60 m (197 ft.)

Outdoor Ready
Durable enclosure with an IPX6 outdoor weather rating

WAN connection

Ethernet WAN

Y

SIM card slot

N

3G/4G USB modem compatibility

N

Wireless LAN features

Wi-Fi band

Single-band (2.4 GHz)

Top Wi-Fi standard

Wi-Fi 4 (802.11n)

WLAN data transfer rate (max)

100 Mbit/s

Wi-Fi standards

802.11b,802.11g,Wi-Fi 4 (802.11n)

Network

Ethernet LAN

Y

Ethernet LAN interface type

Fast Ethernet

Ethernet LAN data rates

10,100 Mbit/s

Cabling technology

10/100Base-T(X)

Ports & interfaces

Ethernet LAN (RJ-45) ports

2

USB port

N

Management features

Web-based management

Y

Quality of Service (QoS) support

Y

Reset button

Y

Security

Firewall

Y

Filtering

Y

MAC address filtering

Y

System event log

Y

Protocols

DHCP client

Y

Design

Product colour

White

Indication light

Y

Product type

Tabletop router

Antenna

Antenna type

Internal

Antenna gain level (max)

10 dBi

Features

Firmware upgradeable

Y

Certification

CE FCC

Power

Power source type

PoE

AC input voltage

100 - 220 V

AC input frequency

50 - 60 Hz

Output voltage

12 V

Output current

1 A

Operational conditions

Operating temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 90%

Weight & dimensions

Width

118 mm

Depth

61 mm

Height

195 mm

Weight

320 g
