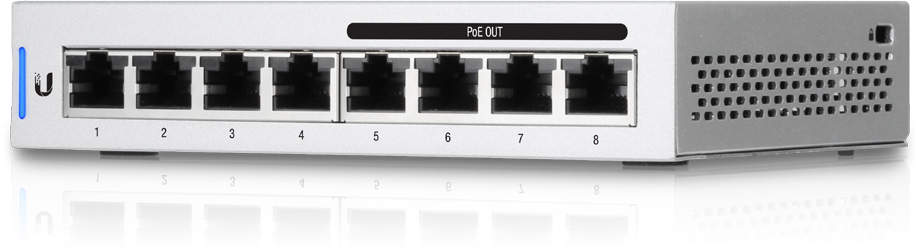

Unifi Switch, 8-port, 60w, 5-pack, External Psu

Introduction

The UniFi Switch 8-port models feature Gigabit Ethernet ports in a compact form factor. The switches are fully manageable, delivering robust performance and intelligent switching for your networks.

The US-8-60W is an 8-port gigabit switch with four 802.3af PoE ports. Its auto-sensing PoE ports deliver up to 15.4W of power per port.

Non-Blocking Throughput
The new 8-port models feature Gigabit Ethernet ports in a compact form factor. For its total, non-blocking throughput, each UniFi Switch supports up to 8 Gbps.

Switching Capacity
The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss, with a switching capacity of 16 Gbps.

Seamless Integration
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.

Management features

Switch type

Managed

Web-based management

Y

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

8

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Power connector

DC-in jack

Network

Networking standards

IEEE 802.1x,IEEE 802.3af

10G support

N

Port mirroring

Y

Flow control support

Y

Broadcast storm control

Y

Spanning tree protocol

Y

Auto-sensing

Y

VLAN support

Y

Data transmission

Switching capacity

16 Gbit/s

Throughput

8000 Mpps

Jumbo frames support

Y

Design

Product colour

Grey

Housing material

Steel

Reset button

Y

LED indicators

Activity, Link, PoE, Speed

Wall mountable

Y

Certification

ETSI300-019-1.4, CE, FCC, IC

Power

Output voltage

48 V

Output current

1.25 A

Power consumption (max)

12 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)

Y

Power over Ethernet (PoE) ports quantity

4

Power over Ethernet (PoE) voltage range

57 - 44 V

Power over Ethernet (PoE) power per port

15.4 W

Total Power over Ethernet (PoE) budget

60 W

Operational conditions

Operating temperature (T-T)

-5 - 45 °C

Operating relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

148 mm

Depth

99.5 mm

Height

30.7 mm

Weight

432 g

Packaging data

Quick start guide

Y
