VELLEMAN

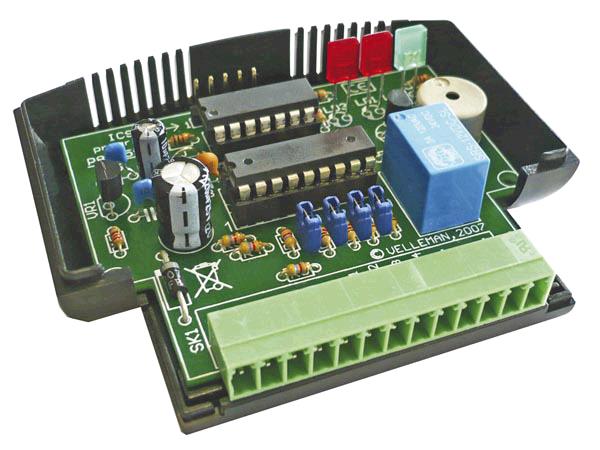

Module D'application Pic-plc Miniature

Part Number:
VM142
Language:
UK
 Without VATWith VAT
Base Price:€24,71€29,90
Total:€24,71€29,90
Add to cart

Introduction

MINI PIC-PLC TOEPASSINGSMODULE

Features

  • 9 vrij programmeerbare in-/uitgangen (4 in-, 5 uitgangen)
  • PIC16F630 microcontroller van Microchip®
  • led-indicatie voor voeding en relaisuitgang
  • 1 vrij programmeerbare led-indicatie
  • on-board minizoemer voor geluidssignalen
  • on-board ICSP™-connector voor de programmering
  • PIC™-programmer ondersteunt PIC16F630

Specifications

  • voeding: 12VDC (niet-gestabiliseerd) / 100mA
  • 4 ingangen (met spanningsdetectie)
  • spanning inganssignaal: 5 - 24VDC, @ 4K7
  • 4 NPN transistoruitgangen (open collector, sink):
       • stroom transistoruitgang: max. 100mA elk
       • directe 12V relaissturing mogelijk (veiligheidsdiode is niet nodig)
  • 1 relaisuitgang met NO/NC-contact (2A)
  • snelheid microcontoller: vaste 4MHz interne oscillator
  • afmetingen: 80 x70 x 25mm
