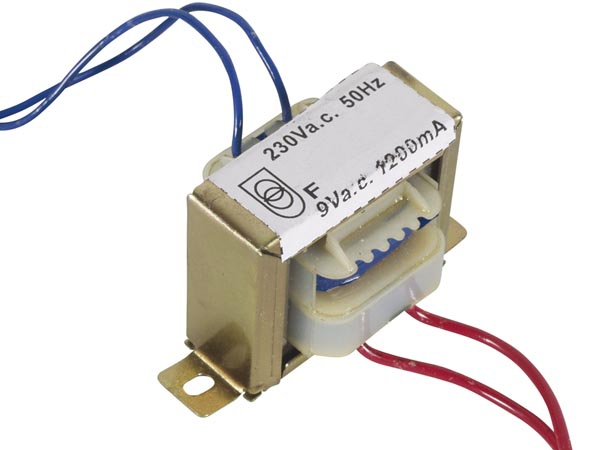

Open-frame Transformer 10.8va 1 X 9v 1200ma

Introduction

Features

- red leads: 230VAC / 50Hz input.
- blue leads: output.

Specifications

- red wires: primary.
- blue wires: secundary.

Features

Input voltage

230 V

Input frequency

50 Hz

Output voltage

9 V

Output current

1.2 A

Output power capacity

0.0108 kVA

Weight & dimensions

Width

60 mm

Depth

45 mm

Height

52 mm

Weight

445 g

Other features

Dimensions (WxDxH)

60 x 45 x 52 mm
