USB-C Docking Station with 4K HDMI, Ethernet, USB and Power Delivery - Docking station - USB-C (88846)

Introduction

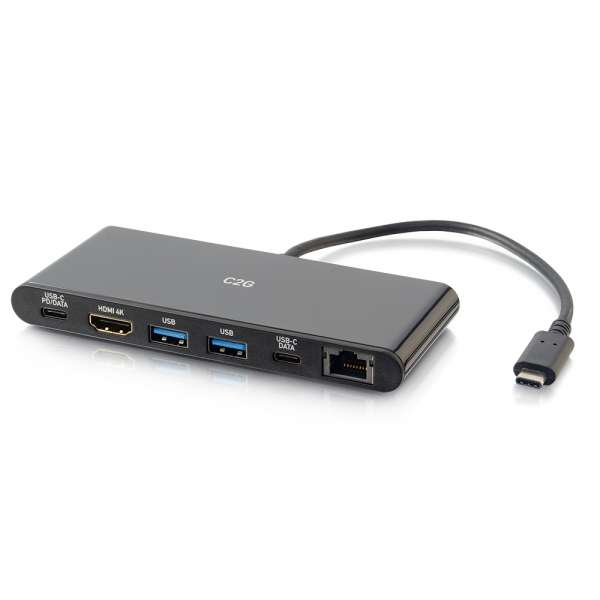

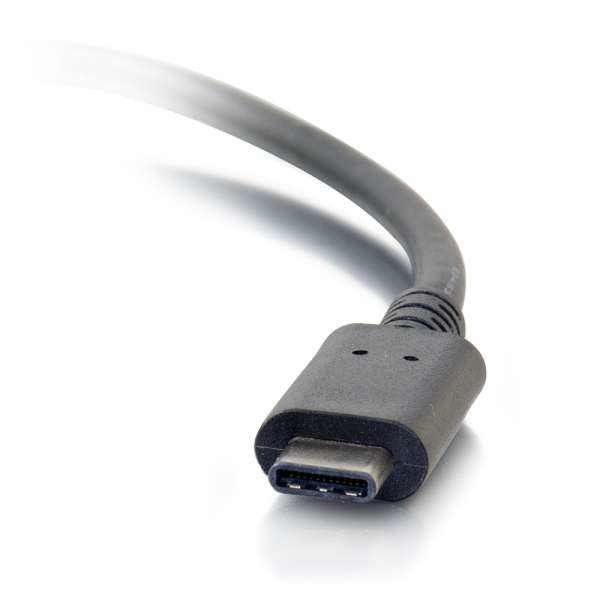

The USB-C Docking Station with 4K HDMI, Ethernet, USB and Power Delivery is an ideal solution for audio/video, wired network connectivity and transferring data whilst in the office or on the road. This docking station connects to a USB-C or Thunderbolt 3 enabled laptop, tablet, or desktop computer and features an Ethernet port and a USB Type-C port with power delivery.

Convenience
Connect to this docking station and display 4K HDMI audio/video content, while delivering power to ensure that a USB-C equipped laptop, tablet or smartphone is fully charged. Also transfer data with ease and speed, using the included USB-C data port or USB 3.0 ports that are backward compatible with USB 2.0. Overall, this docking station offers a lightweight, portable, and simple way to deliver video, transfer data, connect to a network and stay charged up.

Performance
Supporting resolutions up to 4K (3840x2160 at 30Hz), the HDMI connection allows this docking station to mirror or extend a high quality video image to the connected display. Deliver up to 60W of charging power to the connected device. Transfer data up to 10Gbps using the USB-C port or 5Gbps whilst connected to the USB 3.0 ports. The Ethernet port allows for reliable internet connectivity with file transfer speeds up to 1000Mbps.

Ports & interfaces

Connectivity technology

Wired

Host interface

USB 3.2 Gen 1 (3.1 Gen 1) Type-C

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

2

HDMI ports quantity

1

HDMI version

2.0

Network

Ethernet LAN

Y

Ethernet LAN (RJ-45) ports

1

Ethernet LAN data rates

10,100,1000 Mbit/s

Performance

Product colour

Black

Operational conditions

Operating temperature (T-T)

0 - 35 °C

Storage temperature (T-T)

-20 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Weight & dimensions

Width

133 mm

Depth

55.2 mm

Height

14 mm
