SONY

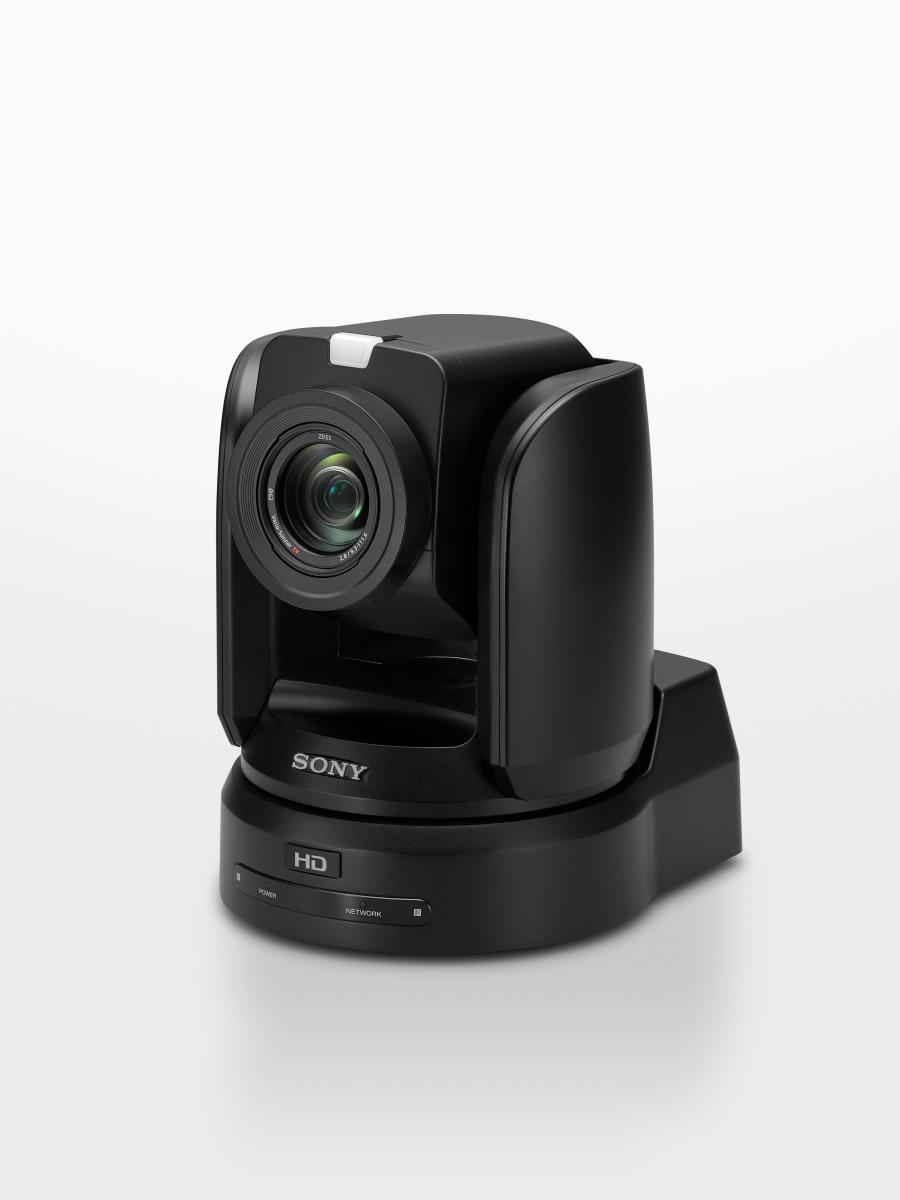

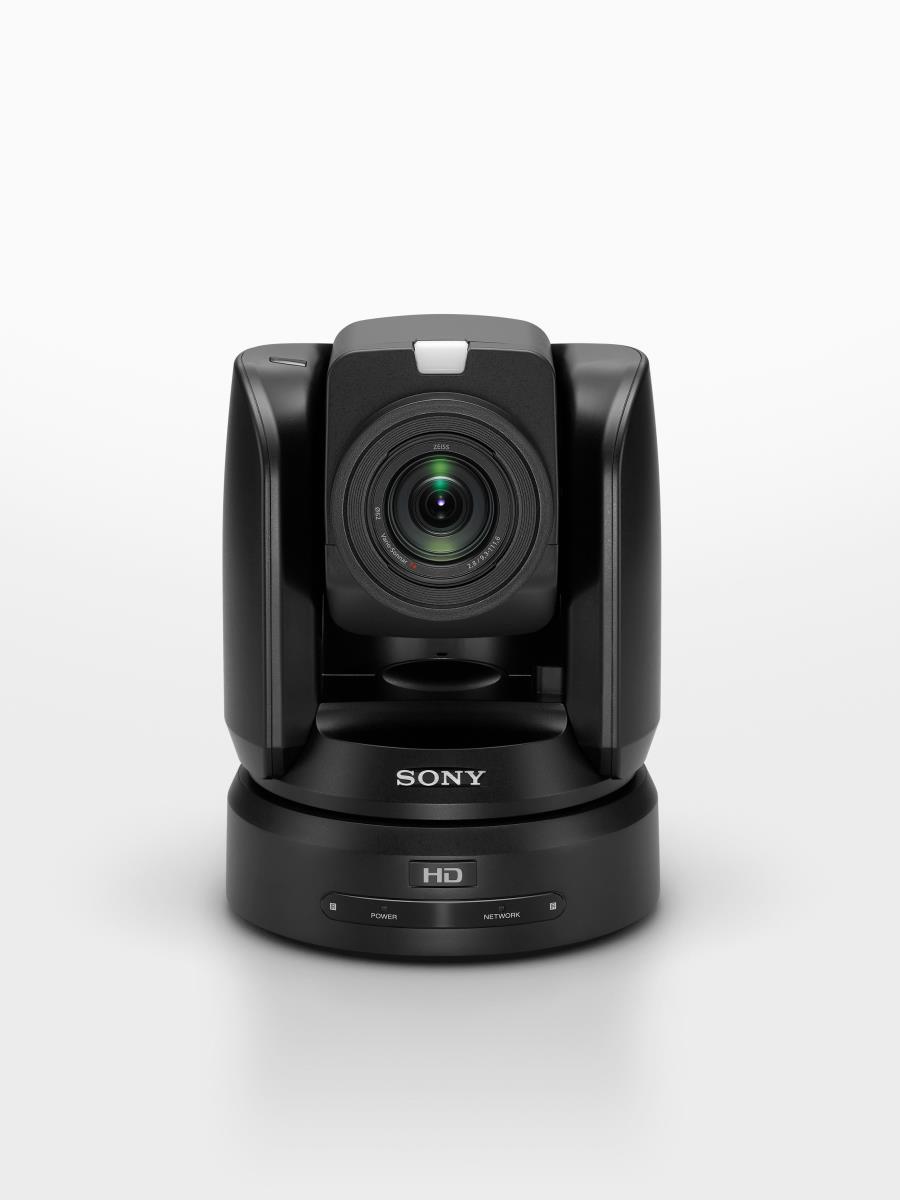

Video Conferencing Camera Brc-h800 Ptz Colour 20.4 Mp Exmor R Hd With Ac Adapter

Video Conferencing Camera Brc-h800 Ptz Colour 20.4 Mp Exmor R Hd With Ac Adapter

Part Number:
BRC-H800/AC
Language:
UK
 Without VATWith VAT
Base Price:€7.783,14€9.417,60
Recupel:+ €0,12+ €0,15
Total:€7.783,26€9.417,75

Introduction

Remotely capture broadcast quality Full HD images with smooth, silent PTZ and excellent low-light sensitivity.
The BRC-H800 remote camera combines uncompromising broadcast picture quality and smooth, silent PTZ operation with the flexibility of 3G-SDI and HDMI connections.

Designed for unattended operation, this compact but powerful robotic camera is an ideal complement to other broadcast cameras for capturing images in hard-to-reach or unobtrusive positions. It's equally at home in TV newsrooms, remote studios and on-air suites, auditoriums, houses of worship, courtrooms, classrooms or sports stadiums. It's also particularly suited to efficient multi-camera set-ups, under the control of a single operator.

The 1.0-type Exmor R CMOS image sensor captures crisp, low-noise Full HD images at 60p, with excellent low-light sensitivity. The large image sensor also allows the creation of beautiful 'bokeh' effects with a shallow depth of field to suit any artistic intention.

Speedy, near-silent PTZ operation with 12x optical zoom accommodates wide-angle scenes and tightly framed close-ups, with Clear Image Zoom 24x(HD) extending this range even further without visible loss of resolution. In Tele Convert Mode, 24x zoom can be further doubled to 48x without losing HD resolution.

Broadcast-friendly features include dual tally lamps for on-air operation, while operational flexibility is enhanced with options for ceiling, table top or tripod mounting. There's also a broad range of video interfacing and remote control possibilities - plus support for PoE+ and genlock - for smooth integration into any broadcast, professional or corporate AV environment.

Enhanced Pan/Tilt/Zoom (PTZ) operation
Accurately re-frame shots or track moving subjects with smooth, speedy, near-silent remote control of pan, tilt and zoom functions. There's also low-speed zoom and a slow pan/tilt mode for precise, judder-free camera movements. PTZ Trace Memory allows a sequence of camera movements to be memorised and followed whenever required. PTZ Motion Sync smoothly blends separate pan, tilt and zoom movements for seamless, professional-looking transitions. Upto 100 preset positions for pan/tilt/zoom operations.

Broadcast quality Full HD 60p images
The camera's large, back-illuminated 1.0-type Exmor R CMOS sensor delivers uncompromised broadcast quality colour pictures in detail-packed Full HD 60p, capable of capturing sports and other fast-moving action.

Cinematic 24p pictures
The camera can also operate in 24p mode, for video footage with a rich, filmic look.

High quality 12x optical zoom and 24x(HD) with Clear Image Zoom
The high quality Zeiss Vario-Sonnar T lens with 12x optical zoom range covers wide angle shots as well as tight close-ups. Clear Image Zoom* expands this range to 24x (HD) without sacrificing detail. In addition, the Tele Convert Mode can double this range again, up to 48x zoom while maintaining a 1920x1080 resolution.

*Clear Image Zoom is a Sony original intelligent interpolation, which analyzes the input image and increases the resolution of the image.

Excellent low light sensitivity
The BRC-H800 can capture crisp, low noise colour video images in light levels as low as 1.7lx, making it an ideal choice for dimly lit live hall and theater

Flexible installation
Integration is simplified in a wide range of environments, with PoE+ (Power over Ethernet) to reduce cabling requirements and VISCA control over IP.

Remote operation
Pan/tilt/zoom and other camera settings can be controlled using the supplied IR remote commander, or with the optional RM-IP500 Remote Control Unit that can control multiple cameras.

RCP/MSU Connectivity
In an studio environment, BRC-H800 can be controlled via Sony's Remote Control Panel RCP-1500/1501/1530 and MSU-1000/1500. Connection can be made over IP networks.

*The compatibility is described in Remote Camera System Guide.

Genlock
Genlock simplifies integration with other systems in multi-camera broadcast environments.

Versatile video outputs
Enjoy greater installation flexibility in professional broadcast and AV environments with 3G-SDI (x2) and HDMI video outputs.

Front and rear tally lamps
Ideal for on-air broadcast use, the BRC-H800 features dual tally lamps on the front and rear of the camera body. Brightness of the front tally lamp can be adjusted in two steps.

Always up to date
New camera functionality and performance improvements can be added via firmware updates over IP

Performance

Type

IP security camera

Placement supported

Indoor

Connectivity technology

Wired

PTZ control

Y

Preset points

Y

Day/night mode

Y

Antenna gain level (max)

33 dBi

Light exposure modes

Auto, Manual, Shutter priority AE

Design

Form factor

Spherical

Mounting type

Ceiling

Product colour

Black

Camera

Camera pan control

Y

Camera tilt control

Y

Minimum illumination

1.7 lx

Viewing angle, horizontal

64.6°

Tilt angle range

-90 - 30°

Tilt speed

60 °/sec

Pan range

-170 - 170°

Pan speed

60 °/sec

White balance

Auto, Indoor, Manual, Outdoor

Camera shutter speed

1/10000 - 1/8 s

Image sensor

Number of sensors

1

Sensor type

CMOS

Lens system

Zoom capability

Y

Optical zoom

12x

Number of lenses

1

Auto focus

Y

Focus

Motorized/Manual

Maximum aperture number

2.8

Minimum aperture number

4.5

Focal length range

9.3 - 111.6 mm

Closest focusing distance

0.08 m

Video

Total megapixels

20.4 MP

Supported video modes

720p,1080p

Frame rate

59.94 fps

Network

Ethernet LAN

Y

Wi-Fi

N

Bluetooth

N

Storage

Built-in HDD

N

Ports & interfaces

DC-in jack

Y

Power

Power source type

DC, PoE

Power consumption (max)

19 W

Power consumption (Power over Ethernet (PoE))

23 W

DC output voltage

12

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Weight & dimensions

Width

198 mm

Depth

238 mm

Height

260 mm

Weight

4.3 kg

Packaging content

AC adapter included

Y
