SONY

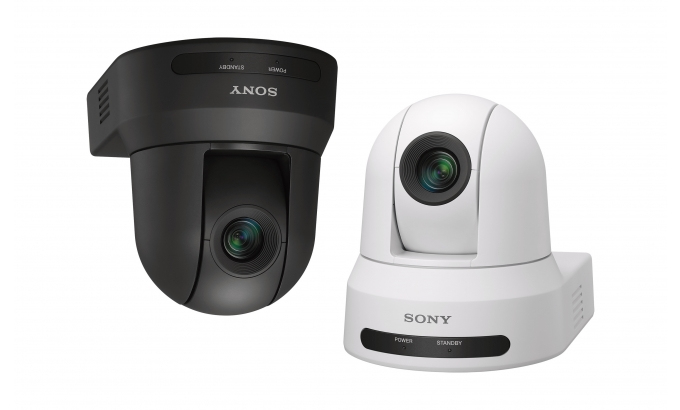

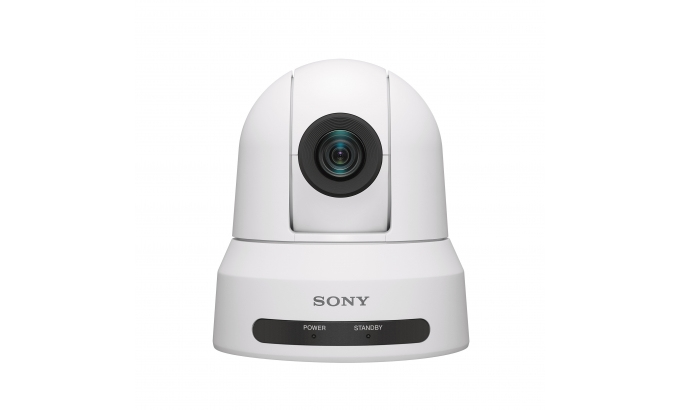

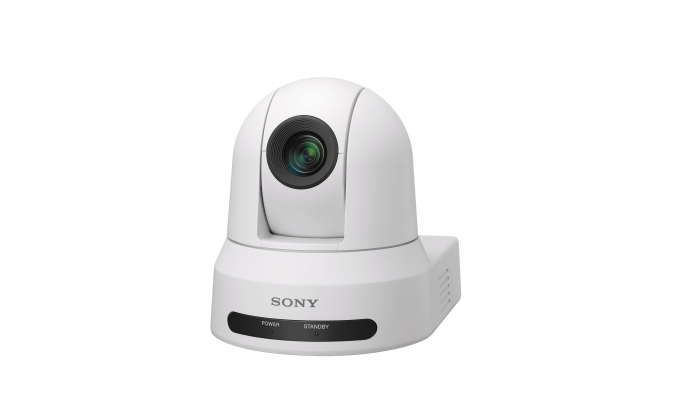

Compact Camera Srg-40 4x Optical Zoom Uvc Hdmi White

Compact Camera Srg-40 4x Optical Zoom Uvc Hdmi White

Part Number:
SRG-X40UH/WC
Language:
UK
 Without VATWith VAT
Base Price:€3.066,08€3.709,96
Recupel:+ €0,25+ €0,30
BeBat:+ €0,05+ €0,06
Total:€3.066,38€3.710,32

Introduction

Professional communication with 4K detail, natural images, and 40x zoom
Built for almost any space, the SRG-X40UH matches high-quality images with ease of use and simple installation. This remotely controlled PTZ camera can cover everything from crowded operating theaters to huge auditoriums, making it perfect for business, education, and medical settings.

See all the details, textures, and colors you need, with a 1/2.5-type Exmor R™ CMOS image sensor. Capture up to 4K images with minimal noise, even in low light. Create better FHD images, thanks to oversampling from the 4K sensor.

The 40x zoom in FHD, or 30x in 4K, gives you crisp close-up shots, thanks to Clear Image Zoom technology. Meanwhile, a horizontal viewing angle of approximately 70 ° lets you zoom out for much wider images. And smooth, fast PTZ movements make any transitions seamless.

Place the SRG-X40UH on a desk or mount it to the ceiling for more discreet filming. Simple UVC or HDMI connections make it easy to integrate into your existing setup. And PoE+ support and VISCA/VISCA over IP control command let you remotely operate and power it through a single LAN cable.

Clear, detailed 4K images—anywhere

The sensitive 1/2.5-type Exmor R™ CMOS image sensor captures high-quality 4K images with very little noise, even in dimly lit environments.

Natural images and colors

The powerful sensor reproduces colors as they appear in the real world, so you see a realistic image every time.

Detailed pictures, even in the dark

Our Day/Night function automatically switches between Day mode (full color) and Night mode (black & white) so you always see clearly. See detailed pictures in almost complete darkness, thanks to boosted sensitivity.

Powerful 40x zoom and wide angle

Get detailed close-ups or capture an entire room through the integrated lens. With Clear Image Zoom technology, you can zoom up to 40x in FHD and 30x in 4K, with a horizontal viewing angle of approximately 70 °.

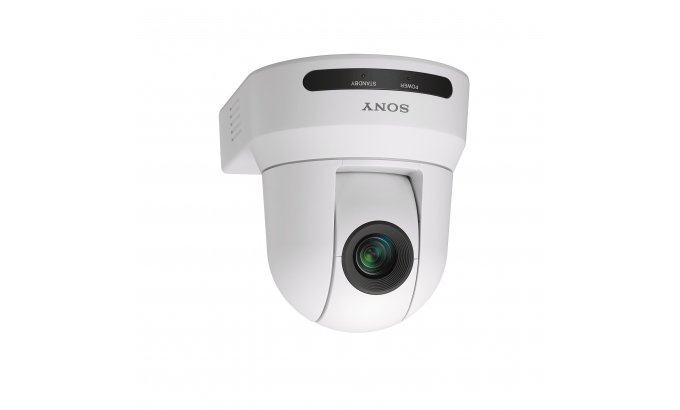

Flexible mounting options

Choose between a desktop mount or ceiling mount so you can record from almost anywhere, whether you're in a boardroom or an auditorium.

Smooth movement

Fast, smooth pan-tilt-zoom movements let you keep up with anything that's happening, while pan angle up to 170 ° of rotation means you can cover a bigger space with fewer cameras.

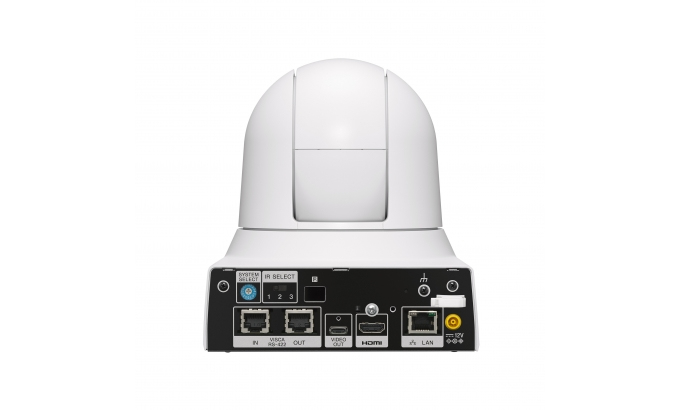

Easy connection

A choice of USB and HDMI connections let you integrate the camera into your existing systems. Then USB Video Class (UVC) gives you smooth video communication.

Remote control and simple power

With a single LAN cable, you can power and remotely control your camera, thanks to PoE+ support and VISCA/VISCA over IP control command. Minimal cabling, effort, and cost.

Performance

Type

IP security camera

Placement supported

Indoor

Connectivity technology

Wired

Day/night mode

Y

Light exposure modes

Auto, Manual

Infrared (IR) cut-off filter

Y

Languages support

Multi

Design

Form factor

Dome

Mounting type

Ceiling/wall

Product colour

White

Camera

Camera pan control

Y

Camera tilt control

Y

Minimum illumination

1.6 lx

Lens viewing angle, horizontal

70°

Tilt angle range

-20 - 90°

Tilt speed

126 °/sec

Pan range

-170 - 170°

Pan speed

300 °/sec

White balance

Auto, Indoor, Manual, One push, Outdoor

Camera shutter speed

0.0001 - 1 s

Image sensor

Number of sensors

1

Optical sensor size

25.4 / 2.5 mm (1 / 2.5")

Sensor type

CMOS

Lens system

Zoom capability

Y

Optical zoom

20x

Digital zoom

40x

Number of lenses

1

Focal length range

4.4 - 88 mm

Video

Maximum resolution

3840 x 2160 pixels

Total megapixels

8.5 MP

Video formats supported

M-JPEG

Supported graphics resolutions

1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3860 x 2160

Supported video modes

720p, 1080i, 1080p, 2160p

Noise reduction

Y

Noise reduction technology

2D noise reduction, 3D noise reduction

Gain control type

Auto/Manual

Image stabilizer

Y

Network

Ethernet LAN

Y

Networking standards

IEEE 802.3at

Wi-Fi

N

Storage

Built-in HDD

N

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

RS-422 ports

2

USB port

Y

HDMI ports quantity

1

Security

Anti-flicker

Y

Power

Power source type

DC, PoE

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Power consumption (max)

25.5 W

DC output voltage

12

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Weight & dimensions

Width

158.4 mm

Depth

177.5 mm

Height

200.2 mm

Weight

1.6 kg

Packaging content

Number of cameras

1

Cables included

HDMI

Mounting brackets included

Y
