ANTEC

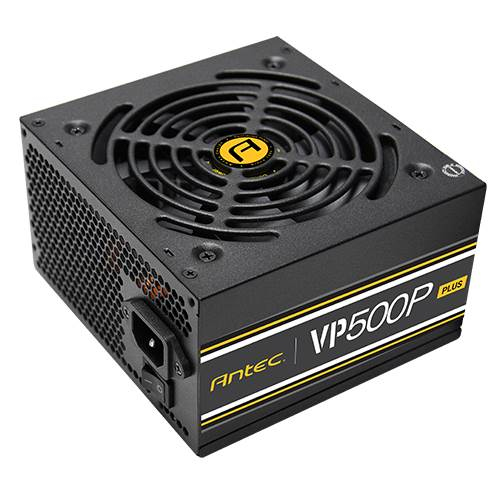

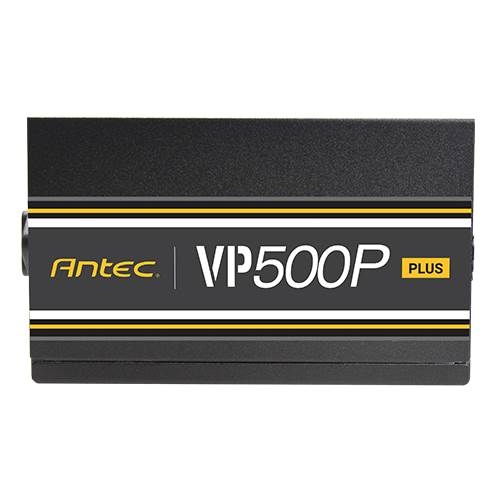

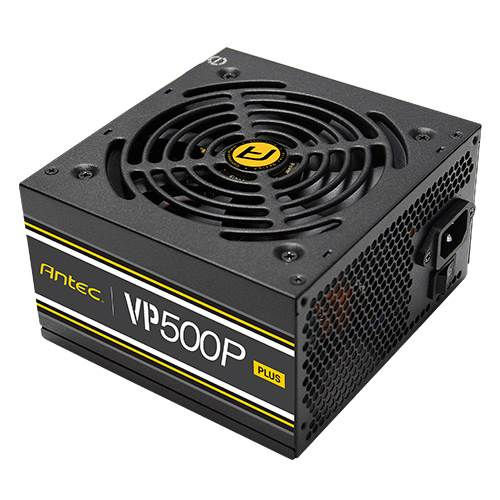

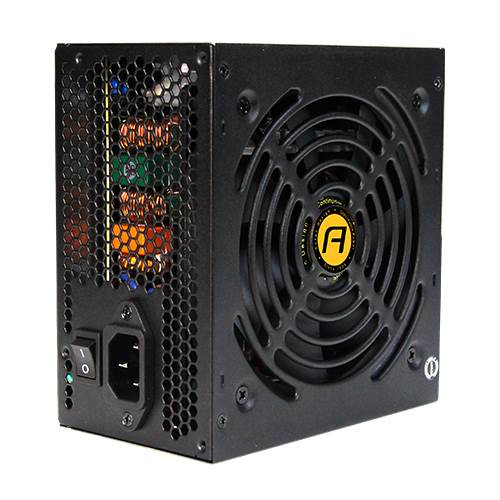

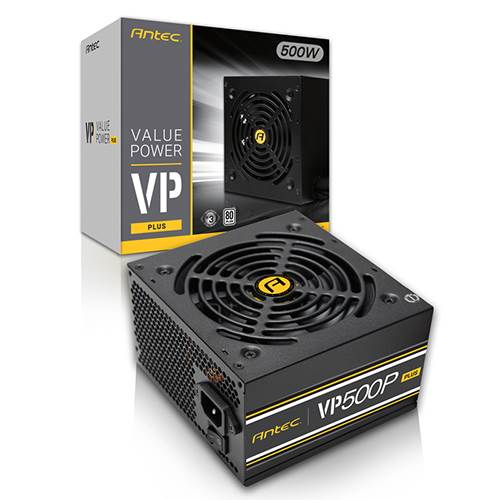

Vp500p Plus Ec Power Supply Unit 500 W ATX Black

Vp500p Plus Ec Power Supply Unit 500 W ATX Black

Part Number:
0-761345-11651-0
Language:
UK
 Without VATWith VAT
Base Price:€94,38€114,19
Recupel:+ €0,06+ €0,07
Total:€94,44€114,27

Introduction

The new generation of VP500P PLUS is crafted for quality, performance and incredible value.

This entry-level solution is rated from 500W to 700W, saving energy through its high efficiency of up to 85% efficient and is 80 PLUS® 230V Standard certified.

Delivering up to 85% efficiency,
the VP P PLUS series utilizes active PFC, Japanese capacitors, and provides efficiency during max and low loads-living up to the performance standards that we are known for.

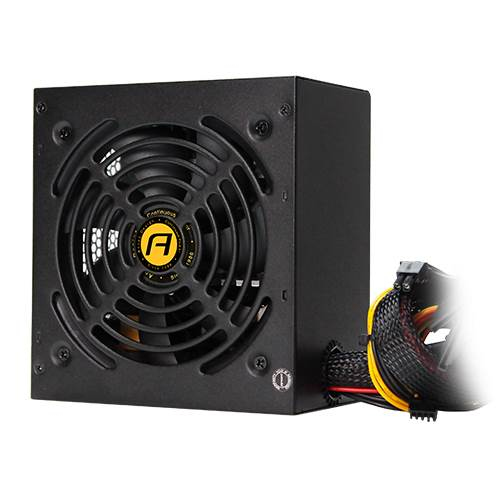

120 mm
Silent Fan

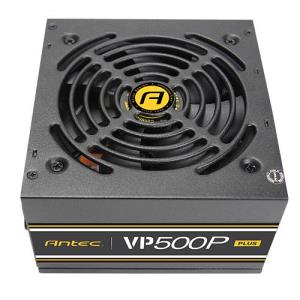

The 120 mm Silent Fan is ideal for quiet computing and is designed for longer life, guaranteeing hours of operation.
Features a Thermal Manager, an advanced low voltage fan control for optimal heat & noise management and will allow your PSU to stay at an optimal temperature.

Power

Total power

500 W

AC input voltage

100 - 240 V

AC input frequency

47 - 63 Hz

Input current

4 A

Power factor

0.9

Power Factor Correction (PFC) type

Active

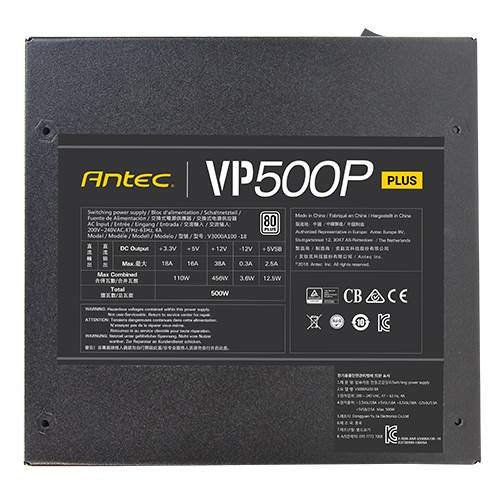

Combined power (+3.3V)

110 W

Combined power (+12V)

456 W

Combined power (+5V)

110 W

Combined power (-12V)

3.6 W

Combined power (+5Vsb)

12.5 W

Max output current (+3.3V)

18 A

Max output current (+12V)

38 A

Max output current (+5V)

16 A

Max output current (-12V)

0.3 A

Max output current (+5Vsb)

2.5 A

Efficiency

85%

Power protection features

Over power, Over voltage, Short circuit, Under voltage

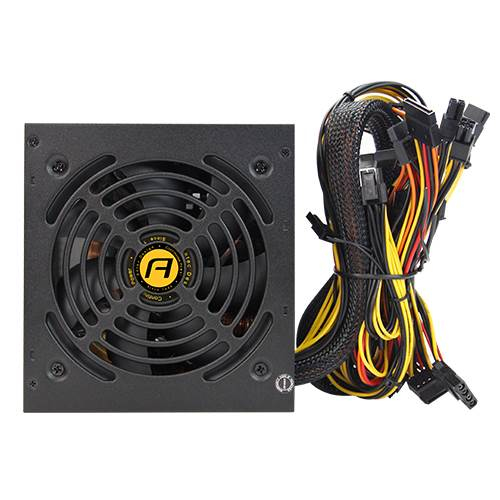

Ports & interfaces

Motherboard power connector

20+4 pin ATX

Motherboard power cable length

50 cm

Number of SATA power connectors

7

SATA power cable length

500,650,800 mm

Peripheral (Molex) power connectors (4-pin)

2

Peripheral (Molex) power cable length

650,800 mm

EPS power connector (8-pin)

Y

PCI Express power connectors (6+2 pin)

2

PCI Express power cable length

65 cm

CPU power connector (4+4 pin)

Y

CPU power cable length

60 cm

ATX power connector (20+4 pin)

Y

Floppy drive power connector

1

Floppy disk drive connector

Y

Floppy disk drive cable length

95 cm

PCI Express connector

Y

Performance

Purpose

PC/Server

Power supply unit (PSU) form factor

ATX

Design

Product colour

Black

Cooling type

Active

Fan diameter

12 cm

Number of fans

1 fan(s)

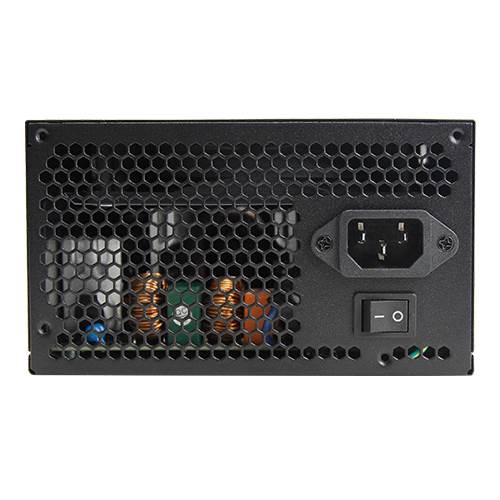

On/off switch

Y

Weight & dimensions

Width

150 mm

Depth

140 mm

Height

86 mm

Weight

1.71 kg

Packaging data

Package weight

2.1 kg

Other features

Harmonized System (HS) code

84733020
