EDIMAX

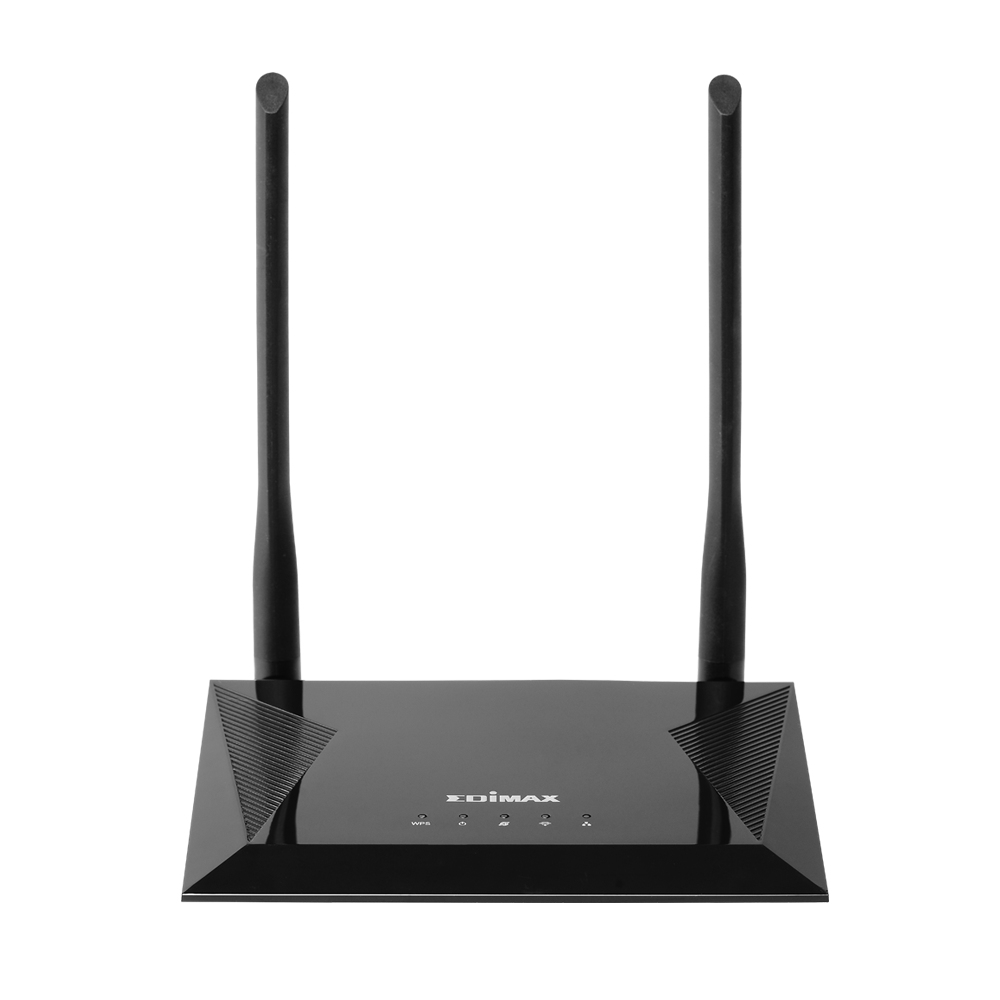

Edimax N300 wireless router Fast Ethernet Single-band (2.4 GHz) Black

Edimax N300 wireless router Fast Ethernet Single-band (2.4 GHz) Black

Part Number:
BR-6428NS V5
Language:
UK
 Without VATWith VAT
Base Price:€23,84€28,84
Recupel:+ €0,12+ €0,15
Total:€23,96€28,99

Introduction

Wi-Fi 4 You.
The Significant High-Gain, High-Performance N300 Router.

The BR-6428nS V5 adopts the most popular wireless standard: IEEE 802.11n, which is also identified as generation Wi-Fi 4 and provides significantly improved coverage with its high-gain antennas. Operating as a router, access point, range extender or WISP, the BR-6428nS V5's flexibility meets the demands of most networking applications. The smart Setup wizard makes installation as easy as a few clicks. Impressive performance makes the BR-6428nS V5 an excellent solution for home or small office environments..

4-in-1 Wi-Fi Router, Access Point, Range Extender, and WISP
The BR-6428nS V5 can work as 4 major modes for wireless networking, including router, access point, range extender, and WISP modes. No matter you want to use it simply over a router for Internet sharing, as an access point for transferring wired connection into wireless network, extending the signals to be a range extender, or sharing a wireless Internet connection with all your devices, just switch it for your network environment by using the smart setup wizard.

Easy Setup and Use
for smart, automatic and quick installation with no CD required.

BR-6428nS V5 makes it easy to do more with your digital devices. Or, use Push 'WPS' Connect to add devices to your Wi-Fi network with a push of a button. And the simple browser-based installation with no CD makes router installation easy using an iPad, tablet, smartphone, or computer.

High-Gain Antennas for Maximum Coverage
Employing two external high-gain fixed antennas, the BR-6428nS V5 can increase signal strength and enhances the range of your Wi-Fi network. It also helps strengthen signal penetration through walls and floors across your home or office.

Guest Network
The BR-6428nS supports a guest network to provide connectivity while isolating guests from your primary network. Makes it easier for your guest to get connected and keep your networking devices stay in greater security.

*Router mode only.

WAN connection

Ethernet WAN

Y

DSL WAN

N

SIM card slot

N

3G/4G USB modem compatibility

N

Wireless LAN features

Wi-Fi band

Single-band (2.4 GHz)

Top Wi-Fi standard

Wi-Fi 4 (802.11n)

WLAN data transfer rate (max)

300 Mbit/s

Wi-Fi standards

802.11b,802.11g,Wi-Fi 4 (802.11n)

Network

Ethernet LAN

Y

Ethernet LAN interface type

Fast Ethernet

Ethernet LAN data rates

10,100 Mbit/s

Cabling technology

10/100Base-T(X)

Networking standards

IEEE 802.11b,IEEE 802.11g,IEEE 802.11n

Port forwarding

Y

Dynamic DNS (DDNS)

Y

Receiver sensitivity

11g (11Mbps): -79 ±2dBm, 11g (54Mbps): -68±2dBm, 11n (20MHz, MCS7): -67±2dBm, 11n (40MHz, MCS7): -64±2dBm

Mobile network

3G

N

Mobile network generation

4G

4G

N

Ports & interfaces

Ethernet LAN (RJ-45) ports

5

USB port

N

Memory card slot(s)

N

DC-in jack

Y

Management features

Web-based management

Y

Reset button

Y

WPS push button

Y

Security

Security algorithms

WEP,WPA,WPA2,WPA2-PSK,WPS

Firewall

Y

Firewall security

SPI Firewall, IP and MAC Address Binding, Wireless MAC Filtering

Guest access

Y

Access Control List (ACL)

Y

Stateful Packet Inspection (SPI)

Y

Filtering

Y

MAC address filtering

Y

System event log

Y

DMZ support

Y

Protocols

DHCP client

Y

DHCP server

Y

Universal Plug and Play (UPnP)

Y

Supported network protocols

Dynamic IP, Static IP, PPPoE, IPv4

Design

Product colour

Black

LED indicators

Power

Product type

Tabletop router

Antenna

Antenna type

External

Antennas quantity

2

Transmit power

16 dBmW

Features

Internal memory

8 MB

Flash memory

2 MB

Firmware upgradeable

Y

Certification

CE, RoHS

Power

Power source type

DC

Output voltage

9 V

Output current

0.4 A

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 90%

Weight & dimensions

Width

153.8 mm

Depth

107 mm

Height

25 mm

Weight

150 g

Packaging data

Package type

Box

Number of products included

1 pc(s)

No options for this product
