Deleted Rally Bar - Graphite

Introduction

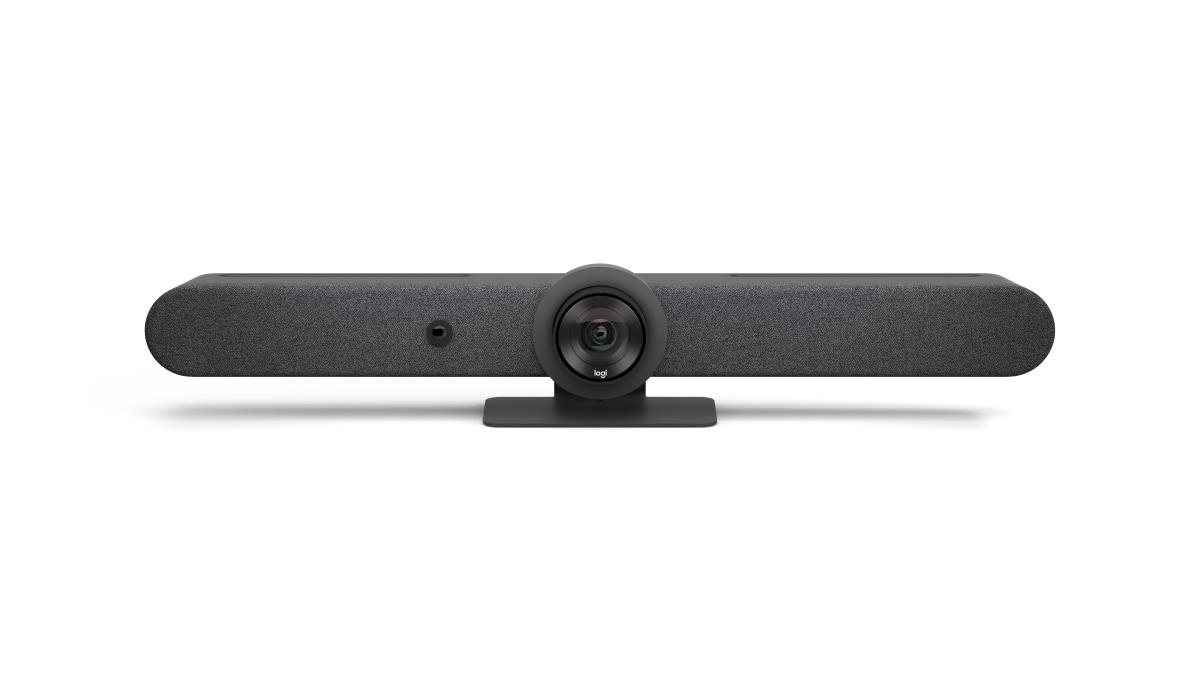

Rally Bar is Logitech’s premier, all-in-one video bar for midsize meeting rooms. With cinema-quality video and audio, AI-driven performance, and beautiful design, Rally Bar sets a new standard for video collaboration.

Rally Bar creates a natural, frictionless meeting experience with motorized PTZ and 15x optical + digital HD zoom. AI Viewfinder persistently views the room, ensuring all meeting participants are captured and framed to perfection.

Powerful low-distortion speakers and adaptive beamforming mics, optimized by RightSound™, deliver outstanding conversational accuracy. Out of the box, Rally Bar provides an expansive 15’ mic pickup range with the option to extend coverage for larger groups and settings.

Simple, versatile, and meticulously designed for scale, Rally Bar offers clutter-free cable management and multiple mounting options. Plug and play Rally Bar with virtually any PC or Mac, or run supported video conferencing applications on the device without a computer.

Performance

Product colour

Graphite

Product type

Group video conferencing system

Pan range

-25 - 25°

Tilt angle range

-15 - 15°

PTZ control

Y

Video

HD type

4K Ultra HD

Supported video modes

720p,900p,1440p,2160p

Maximum frame rate

30 fps

Audio

Built-in speaker(s)

Y

Output level

90/99 dB

Output voltage Total Harmonic Distortion (THD)

2%

Microphone pick-up range

4.5 m

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

Microphone in

Y

Interface module

Interface module HDMI ports quantity

3

Interface module HDMI input ports quantity

1

Interface module HDMI output ports quantity

2

Interface module Ethernet LAN (RJ-45) ports

1

Network

Ethernet LAN

Y

Ethernet LAN data rates

10,100,1000 Mbit/s

Wi-Fi

Y

Wi-Fi standards

802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)

Security algorithms

128-bit AES

Camera

Optical zoom

5x

Digital zoom

3x

Field of view (FOV) angle

90°

Horizontal field of view

82.1°

Remote control interface

Bluetooth

Microphone

Microphone sensitivity

-36 dB

Microphone frequency

90 - 16000 Hz

Sound pressure level (max)

90 dB

Number of microphones

6

Features

Telepresence

N

Logistics data

Master (outer) case gross weight

9.91 kg

Master (outer) case length

1004 mm

Master (outer) case width

220 mm

Master (outer) case height

231 mm

Battery

Battery capacity (Watt-hours)

0.675 Wh

Operational conditions

Heat dissipation

64 BTU/h

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 95%

Storage temperature (T-T)

-40 - 70 °C

Power

Power source type

AC

AC input voltage

100 - 240 V

Current

4.754 A

DC input voltage

19 V

Battery technology

Lithium-Ion (Li-Ion)

Battery capacity

220 mAh

Number of batteries supported

2

Weight & dimensions

Width

910 mm

Depth

160 mm

Height

164 mm

Weight

7.08 kg

Package width

207 mm

Package depth

989 mm

Package height

218 mm

Package weight

9.3 kg

Packaging content

Cables included

AC, DC, HDMI, USB Type-A to USB Type-C

Power cable length

2.5 m

HDMI cable length

2 m

Remote control included

Y
