Adderlink X2 Silver Extender Set

Introduction

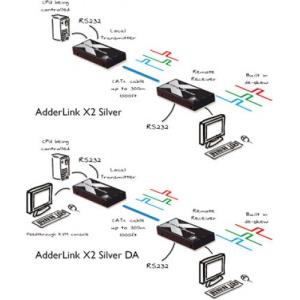

The ADDERLink X2-Silver, (part of the ADDERLink X Series range), extends very high quality video, keyboard, mouse and transparent, high speed RS232 up to 300m (1000ft) over Category 5 or higher UTP cable. The ADDERLink X2-Silver has been designed to provide industry-leading video clarity, compatibility and high rack densities.
Dual access versions provide local KVM access at the computer for local as well as remote control.
Video Performance
Industry leading resolutions of 1600x1200 are achievable at 200m (650ft) and 1280x1024 at 300m (1000ft).
Video Compensation
The ADDERLink X2 applies a high level of signal compensation that allows for a greatly increased range of very smooth and fine adjustments.
Emulated DDC
Unless an extender actively supports DDC some well-known high performance video cards cannot be used at high resolutions. The ADDERLink X2 fully supports DDC.
Rack Options
Both transmitter and receiver units can be used stand-alone or up to 16 units can be mounted into a 2U chassis.
Integrated DeSkew
The ADDERLink X2-Silver has integrated skew correction with a 300MHz bandwidth, meaning that it is more than powerful enough to counteract the negative effects of the skew.
Video Resolutions
1600x1200 at distances up to 200m (650ft)
1280x1024 at distances up to 300m (1000ft)
Extension Distance
Up to 300 metres/1000ft using CATx cable (x=5,5e,6,7)
Devices Supported
Supports PS/2 style keyboard, PS/2 style mouse, flat-screen and CRT style monitors with standard HD-15 video connectors. Transparent RS232 connection.

Technical details

Harmonized System (HS) code

84733080
