APC

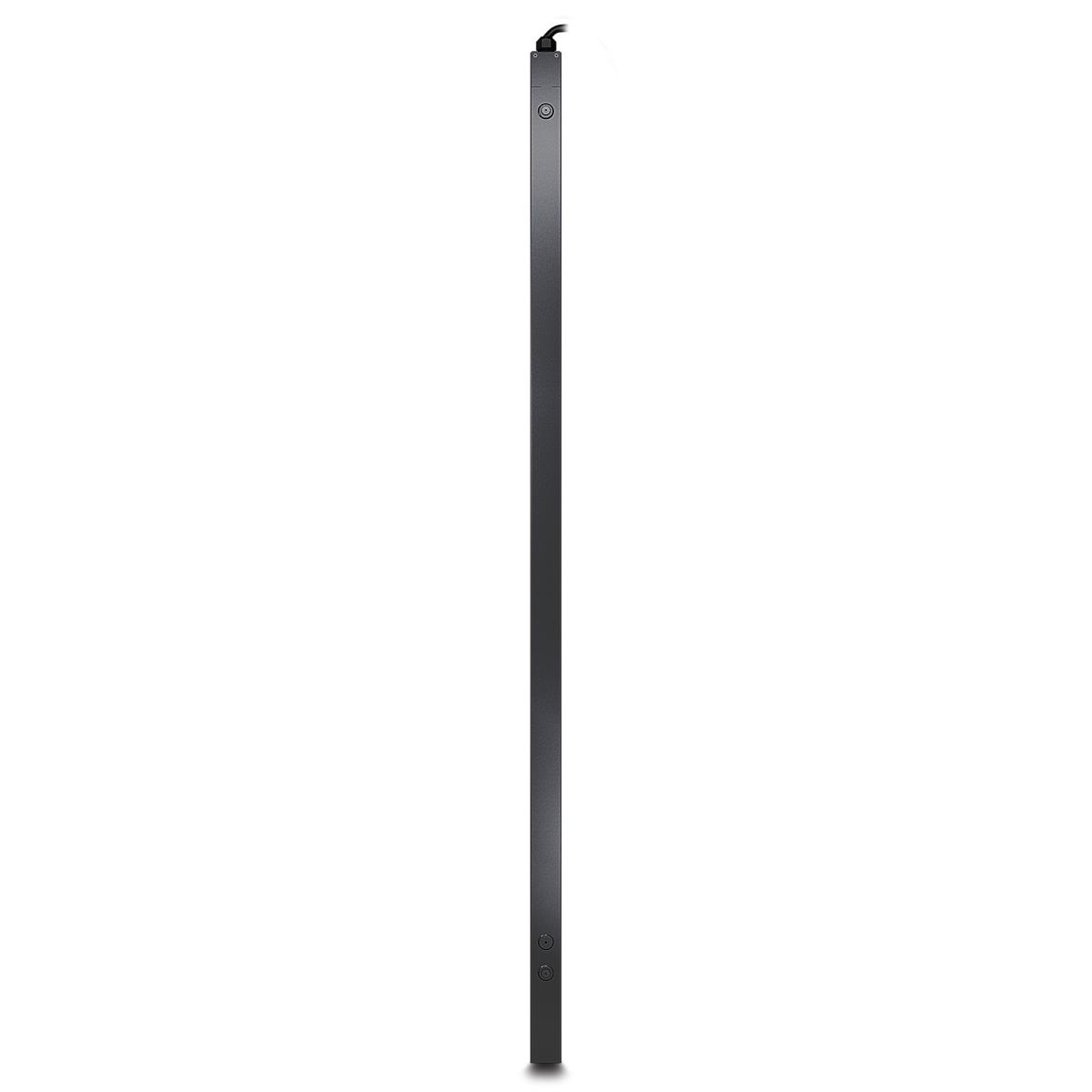

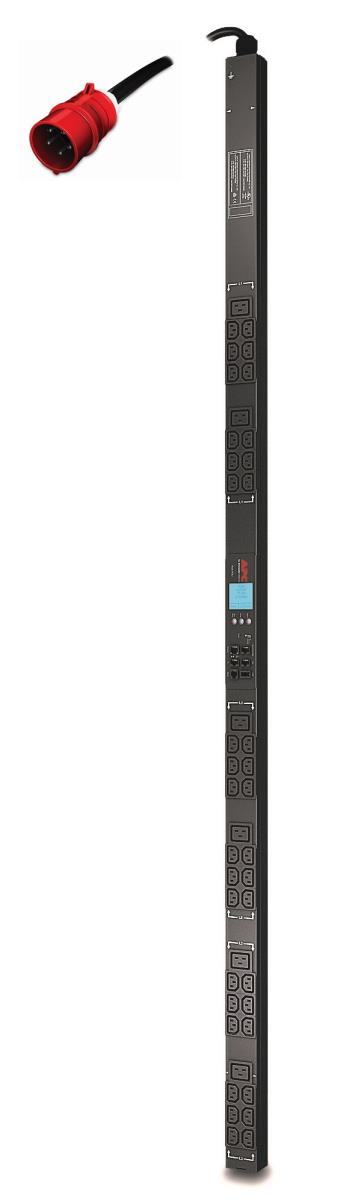

Rack PDU 2G Metered Zerou 11kw/230v (36) C13 And (6) C19

Rack PDU 2G Metered Zerou 11kw/230v (36) C13 And (6) C19

Part Number:
AP8881
Language:
UK
 Without VATWith VAT
Base Price:€1.364,35€1.650,86
Total:€1.364,35€1.650,86

Introduction

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Design

PDU types

Metered

Rack capacity

0U

Mounting

Vertical

Product colour

Black

Ports & interfaces

AC outlets quantity

42 AC outlet(s)

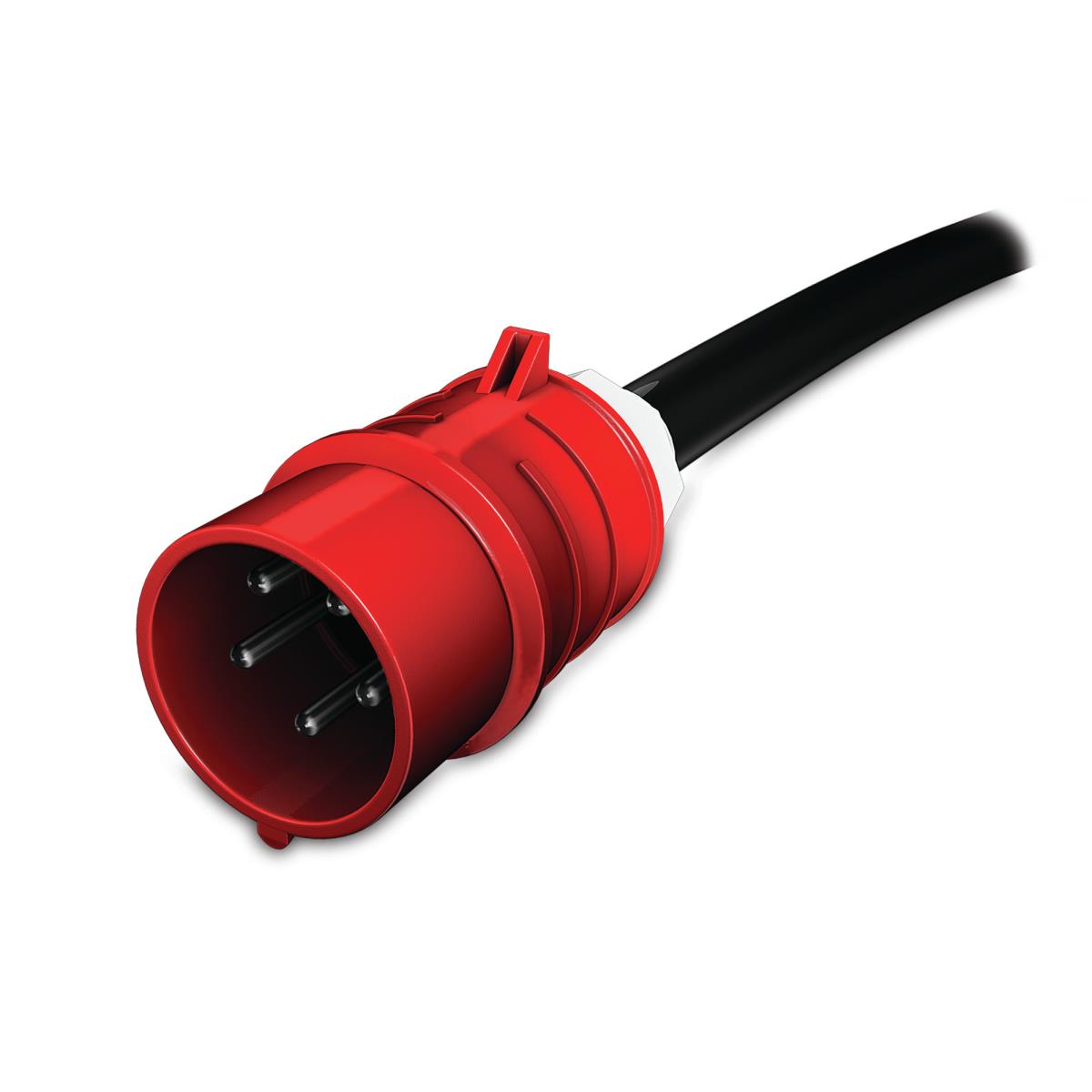

Power plug

IEC309

AC outlet types

C13 coupler, C19 coupler

Input connection type

IEC 309 16A 3P+N+PE, IEC 309 20A 3P+N+E

Output connections

36x IEC 320 C13 6x IEC 320 C19

Features

Cable length

1.83 m

Certification

CSA C22.2 No. 60950,IEC 60950,UL 60950-1,VDE RoHS, REACH

Management features

Monitoring

Current, Power, Voltage

Power

Nominal input voltage

400 V

AC input frequency

50 - 60 Hz

Maximum current

16 A

Nominal output voltage

230 V

Load capacity

11040 VA

Maximum input current per phase

16 A

Maximum total current draw per phase

16 A

Maximum power

11040 W

Weight & dimensions

Dimensions (WxDxH)

56 x 44 x 1791 mm

Weight

6.38 kg

Operational conditions

Operating temperature (T-T)

5 - 45 C

Storage temperature (T-T)

-25 - 65 C

Operating relative humidity (H-H)

5 - 95%

Storage relative humidity (H-H)

5 - 95%
