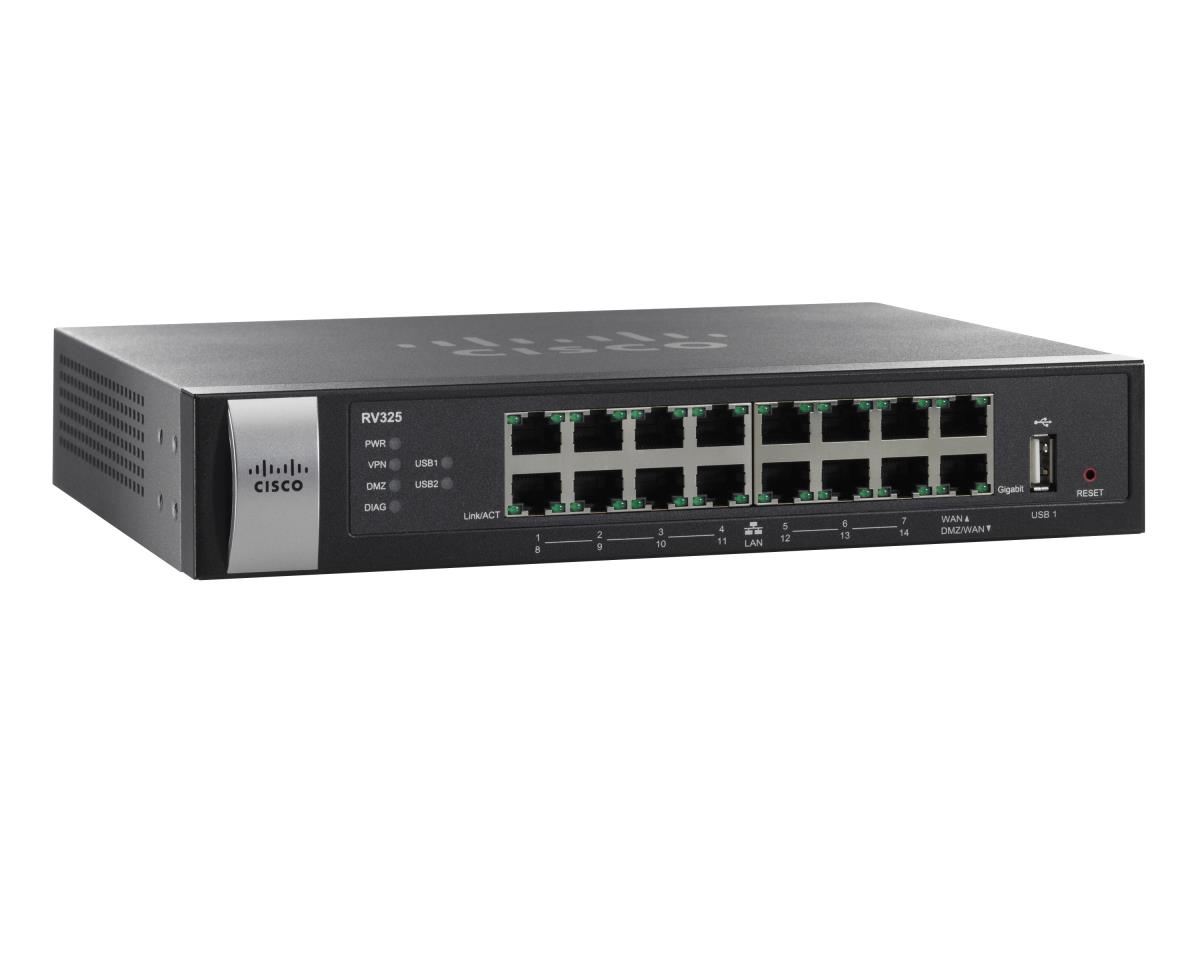

Cisco Rv325 Dual Wan Vpn Router

Introduction

Your business and your employees are exposed to phishing, key loggers, spyware, drive-by malware, and other online threats. With these new models with web filtering, you can keep your employees and users safe from unwanted content and malicious websites. This is accomplished without compromising the users’ online experience and can even help boost employee productivity and network performance by limiting Internet surfing to appropriate site categories and eliminating unwanted network traffic. Users are also automatically protected from malicious/compromised websites, regardless of site categorization.

In an ever-changing business environment, your small business network has to be powerful, flexible, accessible, and highly reliable, especially when growth is a high priority. Your network must also be able to adapt cost- effectively to these growth spurts. The Cisco RV320 and RV325 Dual Gigabit WAN VPN Routers are the choice for any network in which performance, security, reliability, and adaptability top the list of requirements. Both support two connections to one service provider, delivering high performance by using load balancing, or to two different providers to deliver business continuity. High-capacity virtual private networks (VPNs) connect multiple offices and enable dozens of employees to access the information they need from any geographic location just as securely as if they were working at your main office.

- Dual Gigabit Ethernet WAN ports for load balancing and business continuity
- Built-in 14-port Gigabit Ethernet switch
- Strong security with a proven stateful packet inspection (SPI) firewall and hardware encryption
- High-capacity, high-performance, SSL, IP Security (IPsec) VPN capabilities
- An intuitive, browser-based device manager and setup wizards

WAN connection

Ethernet WAN

Y

Network

Networking standards

IEEE 802.1Q,IEEE 802.3,IEEE 802.3u

Ethernet interface type

Gigabit Ethernet

Ethernet LAN

Y

Cabling technology

10/100/1000Base-T(X)

Ethernet LAN data rates

10,100,1000 Mbit/s

Management features

Web-based management

Y

Quality of Service (QoS) support

Y

Firmware upgradeable

Y

Ports & interfaces

Ethernet LAN (RJ-45) ports

16

Gigabit Ethernet (copper) ports quantity

14

Fast Ethernet (copper) ports quantity

2

USB ports quantity

2

USB version

2.0

DC-in jack

Y

Protocols

DMZ support

Y

Routing protocols

RIP-1,RIP-2

Management protocols

SNMPv1/v2c/v3, Bonjour

DHCP client

Y

DHCP server

Y

Supported network protocols

IPv4, IPv6, Static IP, PPPoE, PPTP, DNS, DynDNS

Security

Security algorithms

128-bit AES,192-bit AES,256-bit AES,3DES,DES,HTTPS

Firewall

Y

Firewall security

Stateful packet inspection (SPI) firewall

URL filtering

Y

Network address translation (NAT)

Y

System event log

Y

VPN tunnels quantity

25

VPN support

IPsec, L2TP, DPD, DNS

Design

Product colour

Black

Rack mounting

N

LED indicators

Activity, LAN, Link, Power, USB, WAN

On/off switch

Y

Power

Input current

2 A

Output voltage

12 V

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

0 - 70 °C

Operating relative humidity (H-H)

10 - 85%

Storage relative humidity (H-H)

5 - 90%

Weight & dimensions

Width

243 mm

Depth

45 mm

Height

177 mm

Packaging data

AC adapter included

Y

Manual

Y

Quick start guide

Y
