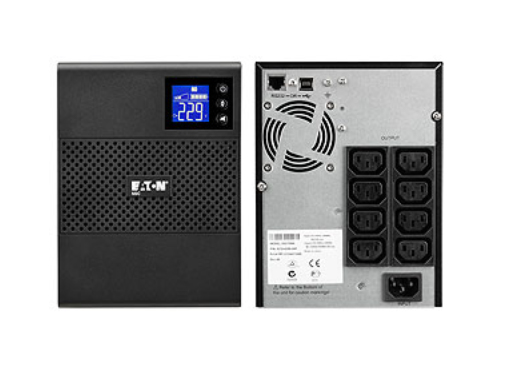

Eaton 5SC UPS 5SC1500i/ 1500VA Tower

Introduction

Eaton 5SC UPS provides line-interactive, affordable and reliable protection for small business servers. Complementing our range of industry leading UPSs, the 5SC includes an LCD interface for real-time status and measurements, and provides sinewave output for compatibility with today's most sensitive IT equipment.

Features

Output power capacity

1.5 kVA

Output power

1050 W

Waveform

Sine

Input operation voltage (min)

184 V

Input operation voltage (max)

276 V

Input frequency

50 Hz

Output operation voltage (min)

220 V

Output operation voltage (max)

240 V

Efficiency

97%

Noise level

40 dB

Power protection features

Overload

Audible alarm(s)

Y

Ports & interfaces

AC outlet types

C13 coupler

Power plug

C14 coupler

AC outlets quantity

8 AC outlet(s)

USB 2.0 ports quantity

1

RS-232 ports

1

Battery

Typical backup time at full load

5 min

Typical backup time at half load

13 min

Design

Form factor

Tower

Product colour

Black

Display type

LCD

LED indicators

Y

Safety

IEC 62040-1, CB Report (TUV)

Certification

CE/GS/C-Tick

Operational conditions

Operating temperature (T-T)

0 - 35 °C

Storage temperature (T-T)

-15 - 40 °C

Operating altitude

0 - 3000 m

Weight & dimensions

Width

150 mm

Depth

410 mm

Height

210 mm

Weight

15.2 kg

Other features

Nominal output voltage

230 V

Nominal input voltage

230 V
