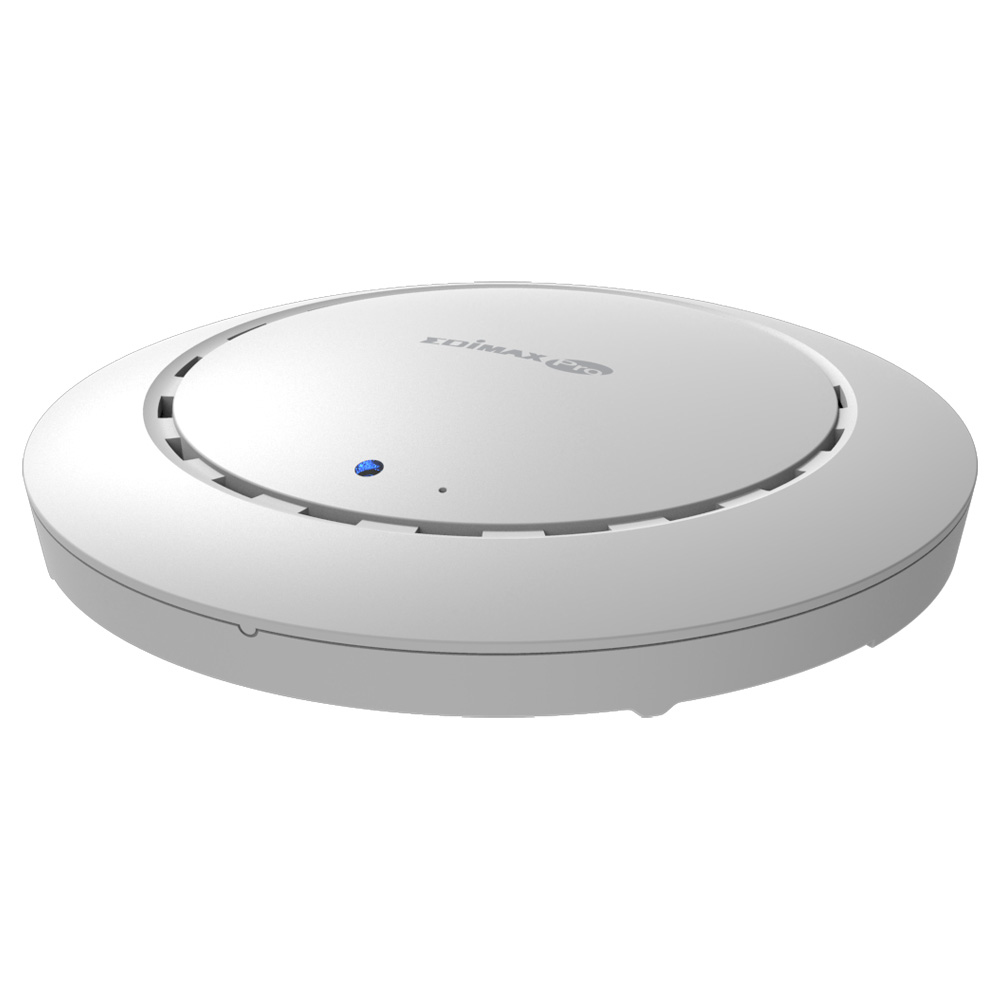

2 X 2 N Ceiling-mount Poe Access Point

Introduction

Affordable, Entry Level Wireless Access Point Designed For Small-to-Medium Sized Businesses

The CAP300 is a reliable and affordable entry level wireless access point designed to meet the needs of modern small to medium sized businesses, with IEEE802.11n wireless speeds up to 300Mbps. Industrial-grade performance and build quality combined with user-friendly operation, an extensive feature set and a practical, ceiling-mount design make an ideal product for day-to-day enterprise use.

For businesses that demand security, flexibility and speed - the Edimax Pro series has a wide range of potential applications from office environments to schools, campuses, hotels and hospitals. Multiple SSIDs can be configured for different departments or user groups and a built-in RADIUS server provides additional verification with a scalable AP array architecture for central management of multiple access points. Fast roaming for seamless transitions between access points, Power over Ethernet support (PoE) and an intuitive web-based management interface provides flexibility for deployment and extensive management options for company MIS departments and network administrators.

When performance and security are critical for your business, you need products that are engineered for your industry. The Edimax Pro series is designed to help your business and provide the connectivity that you rely on every day, with safety and effectiveness guaranteed.

- 802.11N High Speed
- Easy Installation
- Compact & Durable Housing
- Designed for High Density Usage
- Multiple SSIDs for Security Management
- Fast Roaming
- Wide Coverage & High Sensitivity
- Seamless Mobility
- Power over Ethernet
- Built-In RADIUS Server
- Business Environments
- Central Management

Features

Maximum data transfer rate

300 Mbit/s

Wi-Fi data rate (max)

300 Mbit/s

Ethernet LAN data rates

10,100,1000 Mbit/s

Frequency band

2.412 - 2.484 GHz

Bandwidth

2.4 GHz

Networking standards

IEEE 802.11b,IEEE 802.11e,IEEE 802.11g,IEEE 802.11n,IEEE 802.1Q,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u

Number of users

50 user(s)

VLAN support

Y

Quality of Service (QoS) support

Y

Receiver sensitivity

802.11b =-95dBm@1Mbps =-90dBm@11Mbps 802.11g =-91dBm@6Mbps =-75dBm@54Mbps 802.11n =-93dBm@MCS0 =-73dBm@MCS7 =-90dBm@MCS8 =-70dBm@MCS15

Security

Security algorithms

802.1x RADIUS,EAP-AKA,EAP-FAST,EAP-SIM,WEP,WPA,WPA2,WPS

MAC address filtering

Y

Remote Authentication Dial-In User Service (RADIUS)

Y

VPN support

IPsec, L2TP, PPTP

Protocols

Management protocols

HTTP / HTTPS, SNMP v1/v2c/v3, Telnet, SSH

Management features

Web-based management

Y

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

Power

Power over Ethernet (PoE)

Y

AC input voltage

12 V

Input current

1 A

Power consumption (max)

6.5 W

Design

Product colour

White

Reset button

Y

LED indicators

Y

Certification

CE / FCC

Internal

N

Antenna

Antenna type

Internal

Antenna gain level (max)

2.82 dBi

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Weight & dimensions

Width

176 mm

Depth

176 mm

Height

32 mm

Weight

287.3 g
