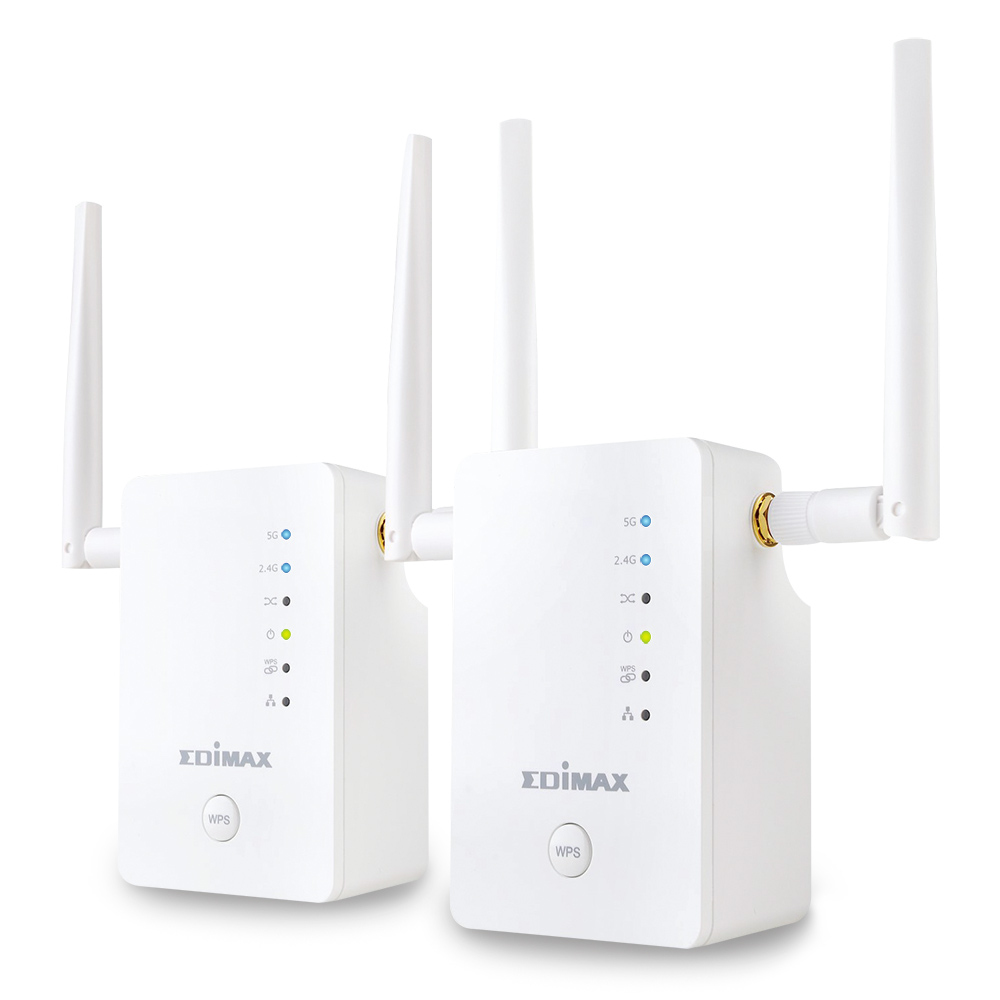

Gemini Re11 Ac1200 Dual-band Home Wi-Fi Access Point

Introduction

Smarter Wi-Fi with Seamless Roaming
Traditional Wi-Fi is setup with a router and extender, and a separate network (SSID) for each. But as you move around your home – especially upstairs or downstairs – your Wi-Fi device will usually still remain connected to the weaker Wi-Fi signal with lower performance. A Wi-Fi roaming network though, features single network (SSID) setup, automatically detects and switches your device to the best available Wi-Fi signal for a more natural, seamless experience and exceptional Wi-Fi wherever you roam.

Stronger Signal
Perfect for Connected Home
Edimax’s RE 11 roaming extenders are constantly analyzing Wi-Fi signals to detect the best source for your device. This ensures stronger, more reliable and better Wi-Fi connections for today’s connected homes.

Faster Speed
Ideal for Video Streaming
Get supercharged 802.11ac Wi-Fi in an instant. You don’t even need to replace your 11n router, simply plug-and-play your RE11 extender kit for hyper-fast Wi-Fi and better streaming.

Simple, Powerful Range Extender Perfect for Home Wi-Fi

Extend Your Coverage
Edimax RE11 Wi-Fi roaming extenders can be plugged into any outlet. The high-performance external antenna design is adjustable and flexible, so you can target your coverage to eliminate dead-zones and get the most from your roaming technology.

Plug & Play Setup
When use Gemini AC 1200 series, there is no configuration or any setting needed, what you need is only plug then push the WPS bottom, that’s all, delight you and your family with fast, reliable WiFi experience, it’s only within 1 minutes.

Performance

Type

Network repeater

Data transfer rate

1200 Mbit/s

WPS push button

Y

Antenna

Antennas quantity

2

Antenna gain level (max)

3 dBi

Network

Cabling technology

10/100/1000Base-T(X)

Networking standards

IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n

Wi-Fi

Y

Wi-Fi standards

802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n)

Wi-Fi data rate (max)

1200 Mbit/s

Wi-Fi band

Dual-band (2.4 GHz / 5 GHz)

Security algorithms

64-bit WEP,128-bit WEP,WEP,WPA-PSK,WPA2-PSK

SSID Broadcast

Y

Web-based management

Y

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

Design

Product colour

White

LED indicators

LAN, Power, Signal strength, WLAN, WPS

On/off switch

Y

Certification

FCC, CE

Power

AC input voltage

100-240 V

AC input frequency

50 - 60 Hz

Input current

0.16 A

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 90%

Weight & dimensions

Weight

130 g

Packaging content

Cables included

LAN (RJ-45)

Manual

Y

Quick start guide

Y

Other features

Dimensions (WxDxH)

59 x 40 x 91 mm

Operating temperature (T-T)

32 - 104 °F
