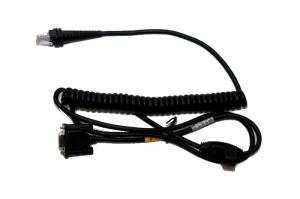

Barcode Scanner Granit 1280i - Wired - 1 D Imager - Red - Rs232 Kit With Vibrator

Introduction

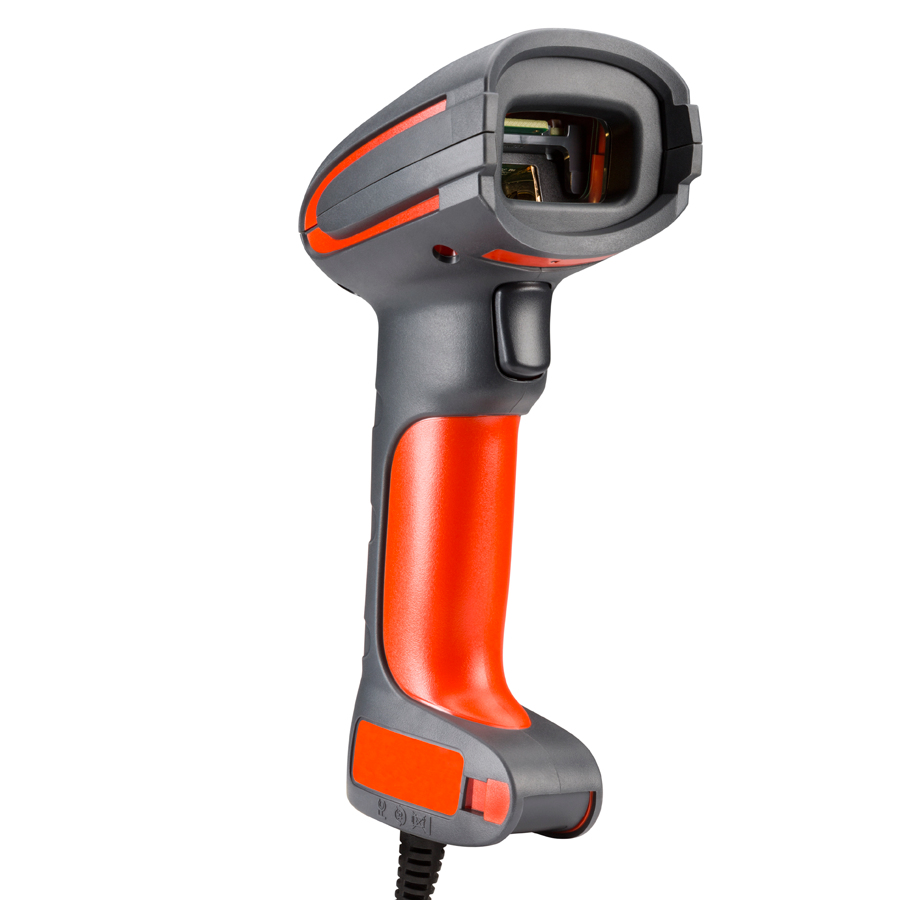

The GranitT 1280i industrial-grade laser scanner goes the distance, reading barcodes out to 54' (16.5m), or as close as 3.5" (8.9cm). Built to read virtually all linear barcodes across a wide depth-of-field, the 1280i supports maximum worker productivity with its extended reading range, intuitive and configurable user feedback, and true industrial-strength ruggedness.

Scanning

Type

Handheld bar code reader

Scanner type

1D

2D (matrix & stacked) barcodes supported

Not supported

Linear (1D) barcodes supported

Codabar,Code 11,Code 128,Code 32,Code 39,Code 93,EAN-13,EAN-8,GS1-128 (UCC/EAN-128),MSI,Plessey,Trioptic,U.P.C.

Sensor type

Laser

Tilt reading angle

-10 - 10°

Pitch reading angle

-65 - 65°

Yaw reading angle

-65 - 65°

Ports & interfaces

Connectivity technology

Wired

Standard interfaces

RS-232

Performance

International Protection (IP) code

IP65

Product colour

Black, Orange

Power

Power source type

DC

Power consumption (typical)

1.80 W

Power consumption (standby)

0.75 W

Weight & dimensions

Width

75 mm

Depth

133 mm

Height

195 mm

Weight

335 g

Operational conditions

Operating temperature (T-T)

-30 - 50 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

0 - 95%
