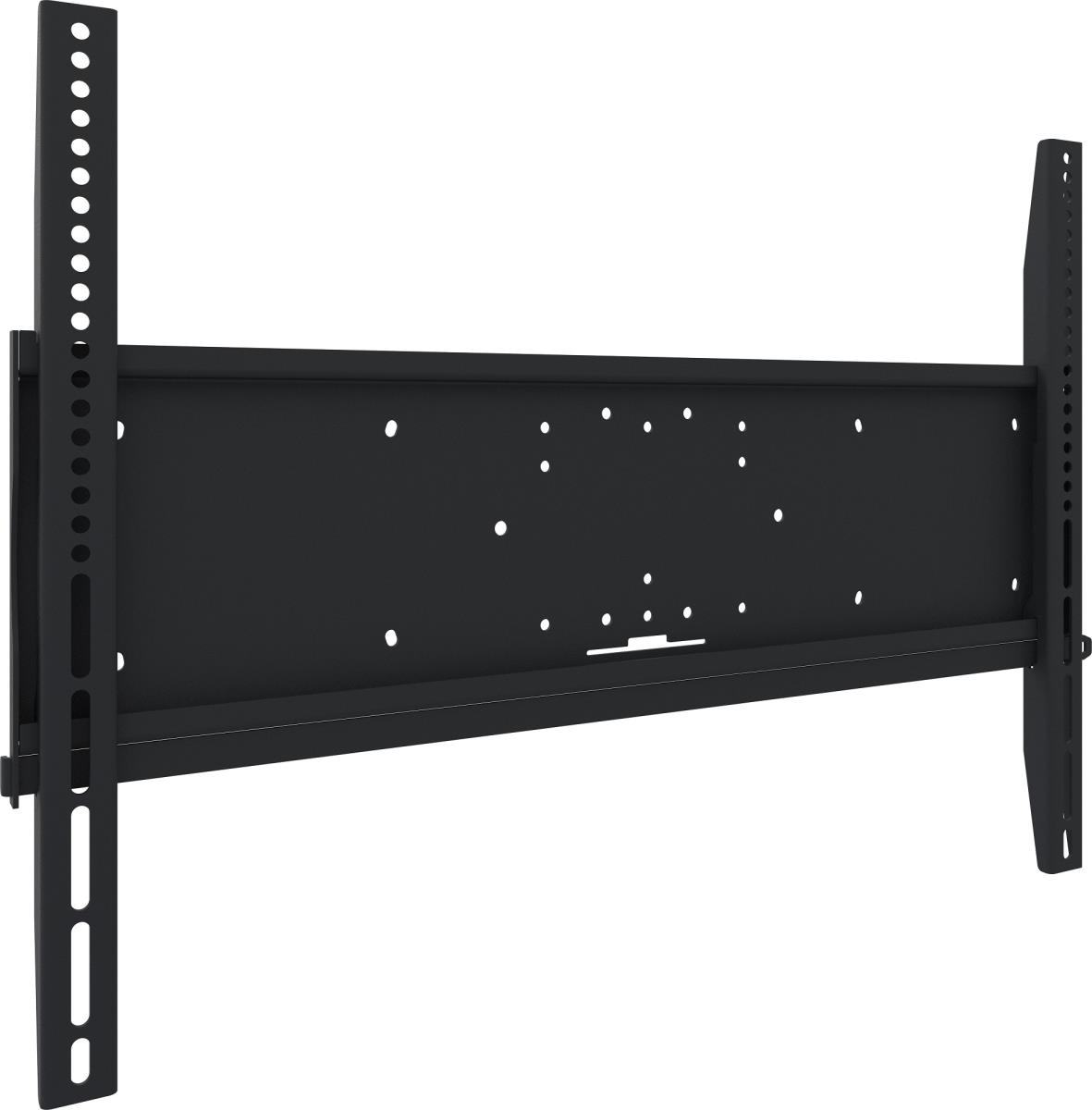

Universal Wall Mount Max. L (MD 052B2010)

Introduction

All universal wall mounts are VESA compatible. Besides wall mounting, our wall mounts can be used for ceiling mounting in combination with a tube set, and directly fastened to the stands thanks to its 170 x 140 mm mounting pattern. The mounts include fastening material to secure the mount to the display. Furthermore they include a safety bar or fixation, offering you protection from theft; a padlock is to be added separately.

Mounting

Maximum weight capacity

125 kg

Minimum VESA mount

75 x 75 mm

Maximum VESA mount

800 x 600 mm

Panel mounting interface

75 x 75,100 x 100,200 x 100,200 x 200,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300,600 x 400,600 x 600,800 x 400,800 x 600

Number of displays supported

1

Mounting type

Wall

Design

Product colour

Black

Weight & dimensions

Width

895 mm

Depth

630 mm

Height

38 mm

Weight

9 kg
