USB 2.0 Cat.5 Extender 50m

Introduction

Extend a USB 2.0 port up to 50m using low cost CAT5/5e/6 network cable (not included)_x000D_
Power over Cable requires a single power supply to be connected to the transmitter only_x000D_
Supports USB 2.0 High Speed and USB 1.1 Full Speed / Low Speed_x000D_
Plug & Play installation_x000D_
2 year warranty_x000D_
_x000D_

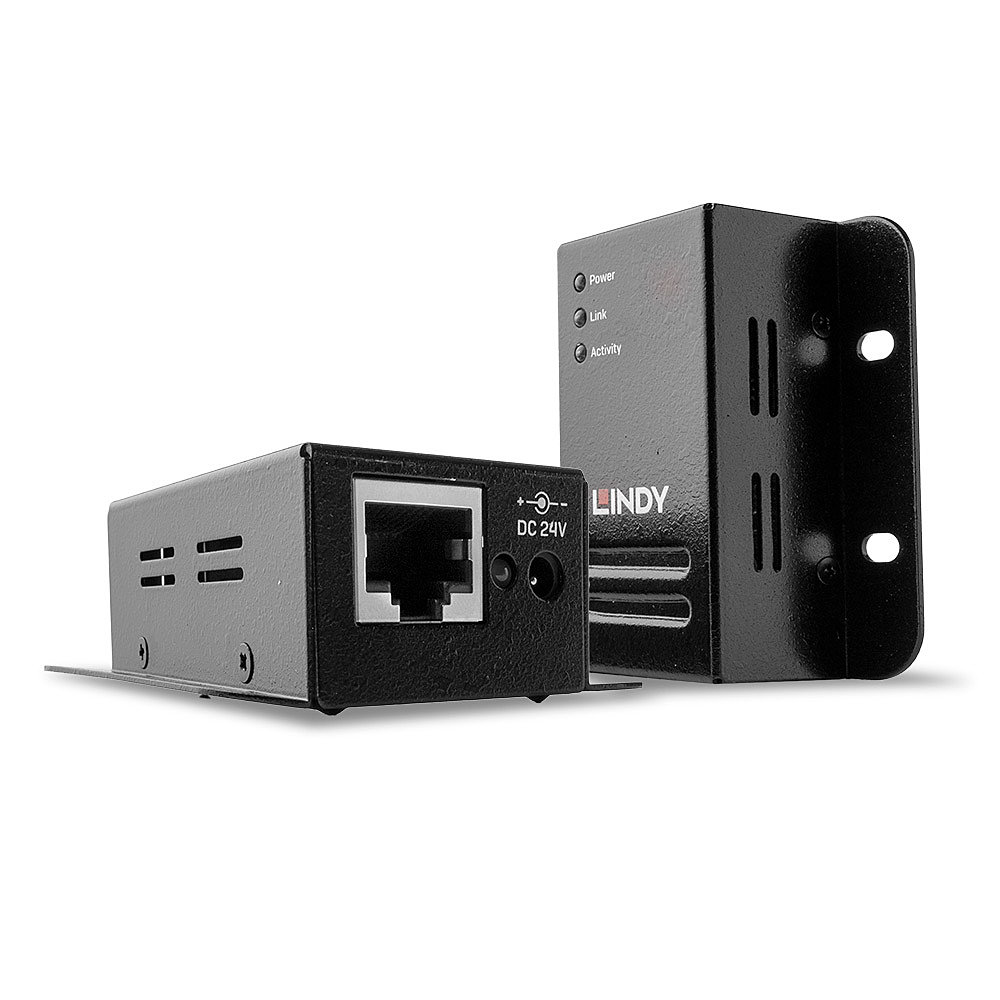

The Lindy USB 2.0 Cat.6 Extender can be used to extend the distance between a USB peripheral device and the host computer by up to 50m. A standard, low cost Cat.5/5e/6 network cable (not included) is used to bridge the connection between the transmitter and the receiver unit. For best performance and compatibility, we recommend the use of solid core patched cables._x000D_
_x000D_
The Extender features Power over Cable, which requires a single power supply only to be connected to the transmitter unit. This handy feature allows the receiver unit and connected devices to be located more freely as no power supply is required. With  robust metal housing and integrated mounting brackets this Extender is the ideal solution for industrial environments._x000D_

Performance

Type

Network transmitter & receiver

Maximum transfer distance

50 m

Data transfer rate

480 Mbit/s

Cable types supported

Cat5,Cat5e,Cat6

Chipset

NS1021

Plug and Play

Y

Ports & interfaces

RJ-45 ports quantity (transmitter)

1

RJ-45 ports quantity (receiver)

1

USB 2.0 ports quantity

2

DC-in jack

Y

Design

Product colour

Black

Housing material

Metal

LED indicators

Y

Certification

CE, UKCA, FCC, RoHS, REACH

Power

Input current

0.25 A

Output voltage

24 V

Output current

0.5 A

Power over Ethernet (PoE)

Y

Power note

3.5/1.35mm DC

Included power plug types

AU,EU,UK,US

Operational conditions

Operating temperature (T-T)

0 - 70 °C

Storage temperature (T-T)

-20 - 80 °C

Operating relative humidity (H-H)

0 - 90%

Storage relative humidity (H-H)

0 - 90%

Weight & dimensions

Weight

300 g

Transmitter width

6 cm

Transmitter depth

6.7 cm

Transmitter height

2.3 cm

Receiver width

6 cm

Receiver depth

6.7 cm

Receiver height

2.3 cm

Packaging content

Cables included

USB Type-A to USB Type-B

Manual

Y

Packaging data

Package type

Box

Package width

185 mm

Package depth

140 mm

Package height

55 mm

Package weight

400 g
