Cap Lite 54 Mbit/s White Power Over Ethernet (poe)

Introduction

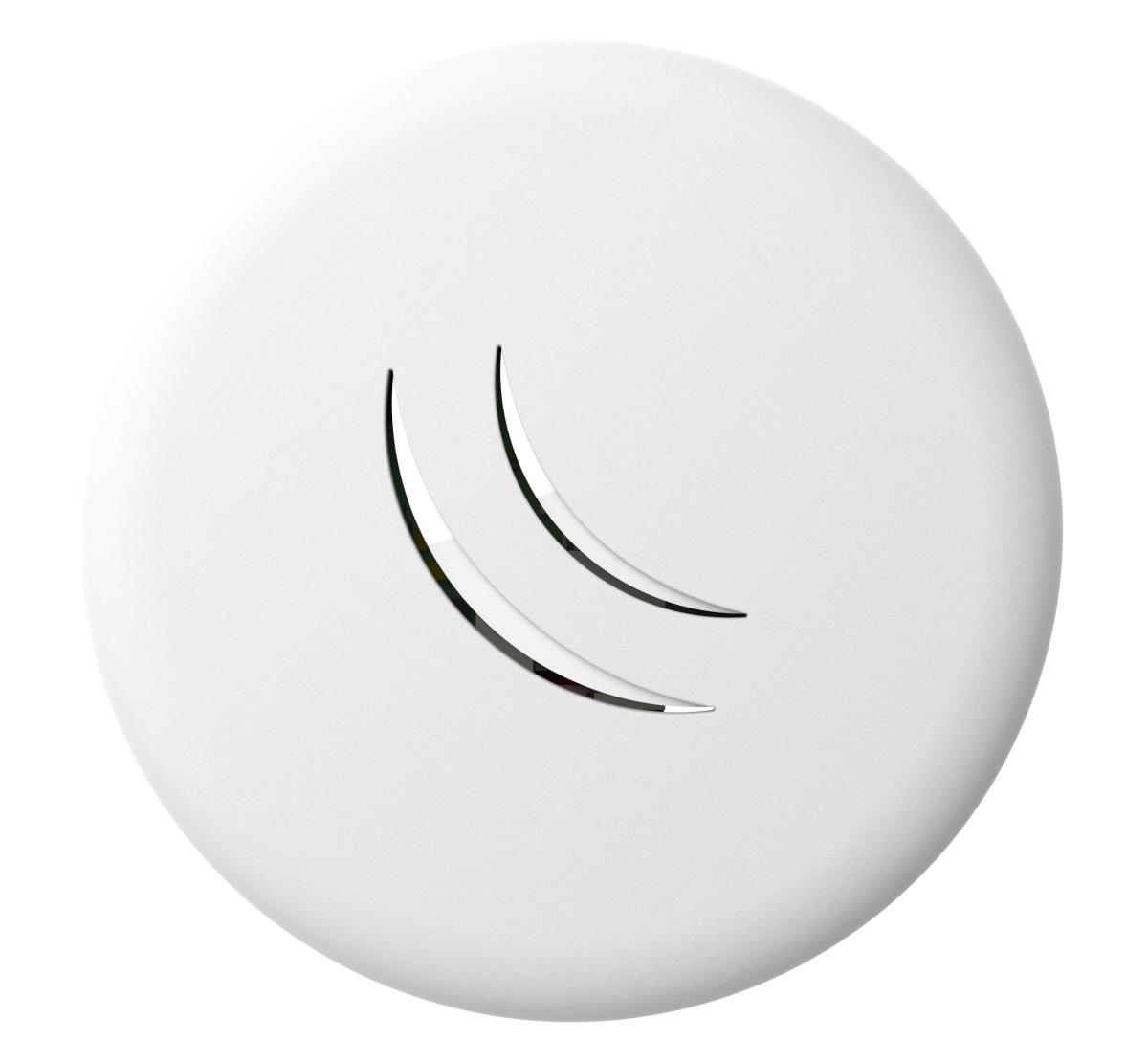

The cAP lite is a tiny access point device, perfect for public locations and hospitality businesses like hotels, airports, shopping malls etc. Included with the product are two different casings, which can easily be swapped out, or, if you really like to fit the design with the environment, we are providing 3D printer friendly design files.

The cAP lite supports 802.11b/g/n and can be powered by power over ethernet. It’s a perfect companion for the MikroTik CAPsMAN (controlled AP system manager), allowing you to control all your AP devices from one central location. The cAP lite can also be used as a stand alone access point with the full potential of RouterOS.

Features

2.4 GHz

Y

5 GHz

N

Maximum data transfer rate

54 Mbit/s

Ethernet LAN data rates

10,100 Mbit/s

Networking standards

IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3af,IEEE 802.3at

Receiver sensitivity

-96, -89, -93, -74, -71

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

USB connector type

Micro-USB

DC-in jack

Y

Power

Power over Ethernet (PoE)

Y

AC input voltage

10 - 60 V

Output voltage

24 V

Power consumption (max)

4 W

Design

Placement

Ceiling, Wall

Product colour

White

Reset button

Y

Internal

N

Antenna

Antenna type

Internal

Antenna gain level (max)

1.5 dBi

Performance

Built-in processor

Y

Flash memory

16 MB

Internal memory

64 MB

Operating system installed

RouterOS

Operational conditions

Operating temperature (T-T)

-40 - 70 °C

Weight & dimensions

Width

52 mm

Depth

20 mm

Height

88 mm
