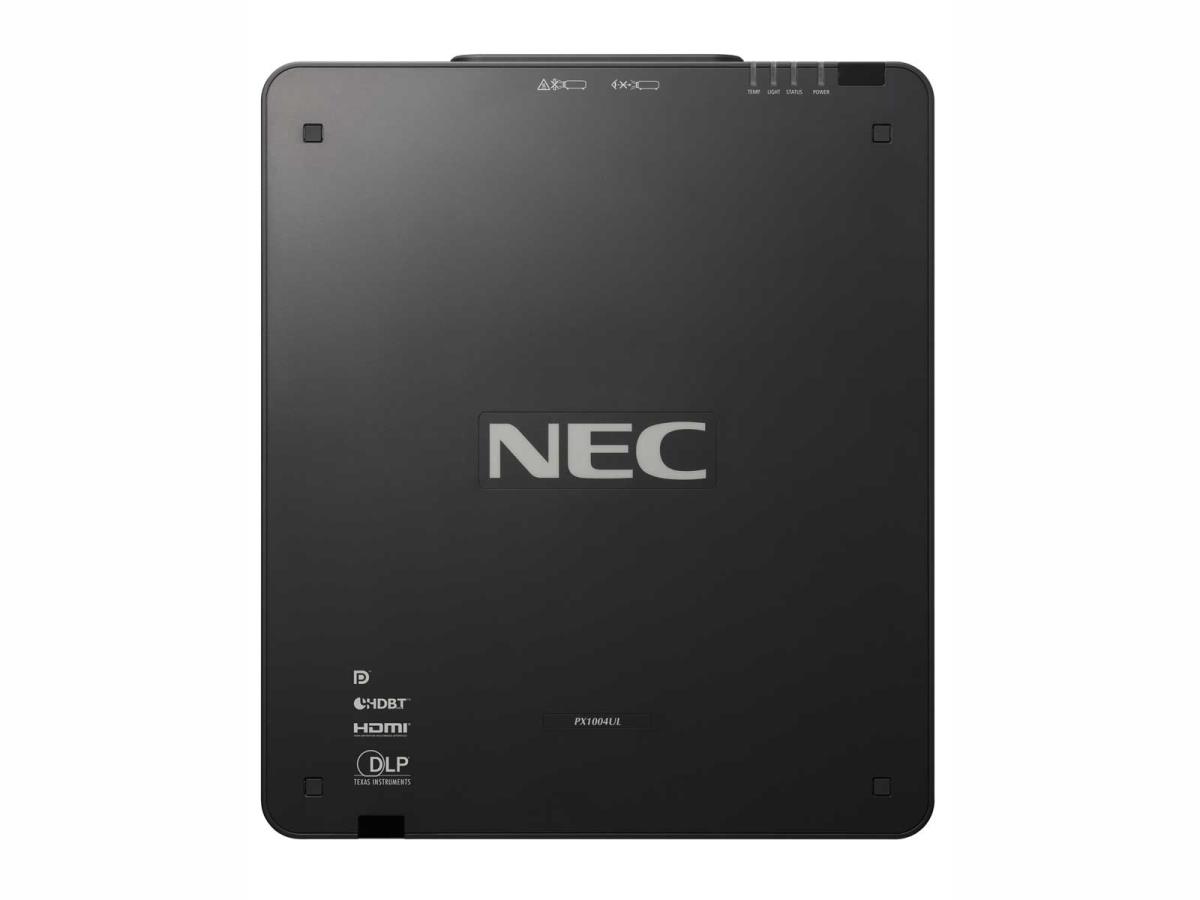

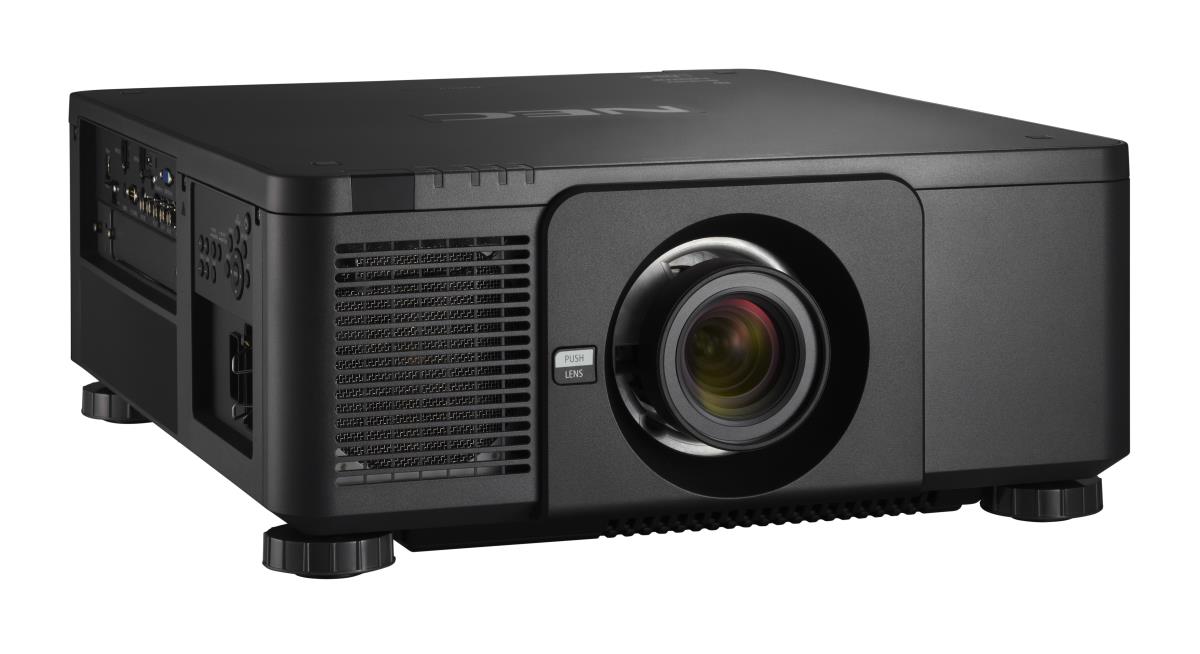

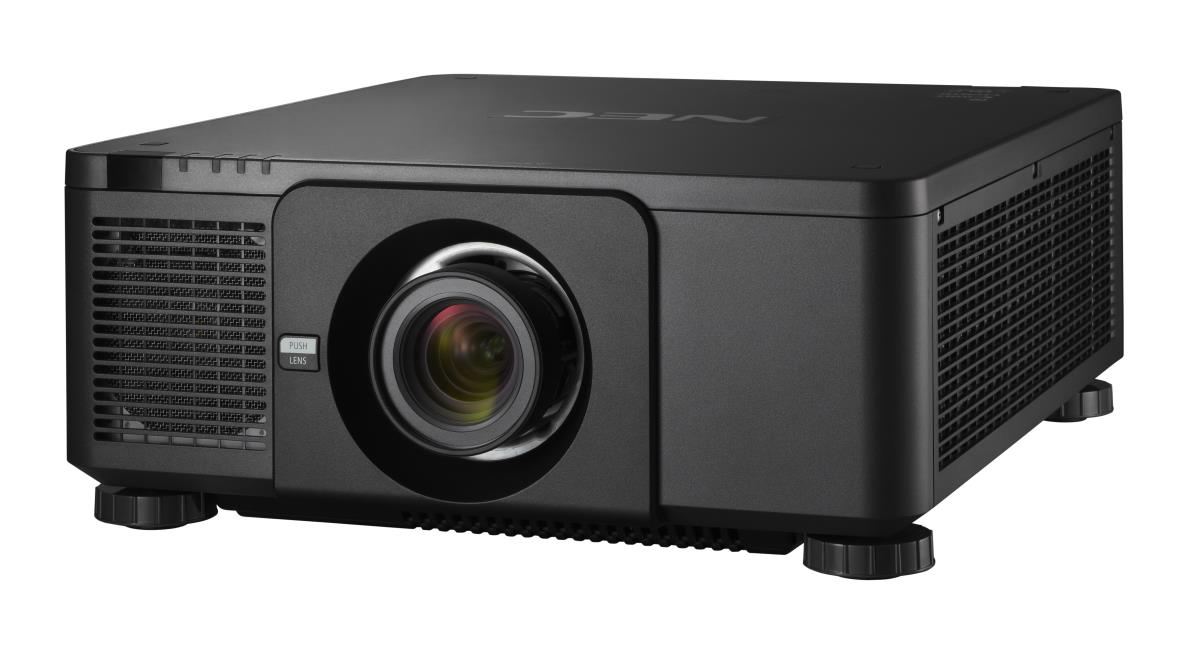

Projector Px1004ul Wuxga 10000lm Black

Introduction

The PX1004UL - simply "install & forget". First grade high end blue laser diode light source, combined with an unique quality Phosphor wheel technology and no filter replacement required, results in an up to 20,000 hours hassle free operation. These features, bundled with a low overall power consumption, provide exceptional reliability and an attractive total cost of ownership addressing long lasting Signage installations or Museums.

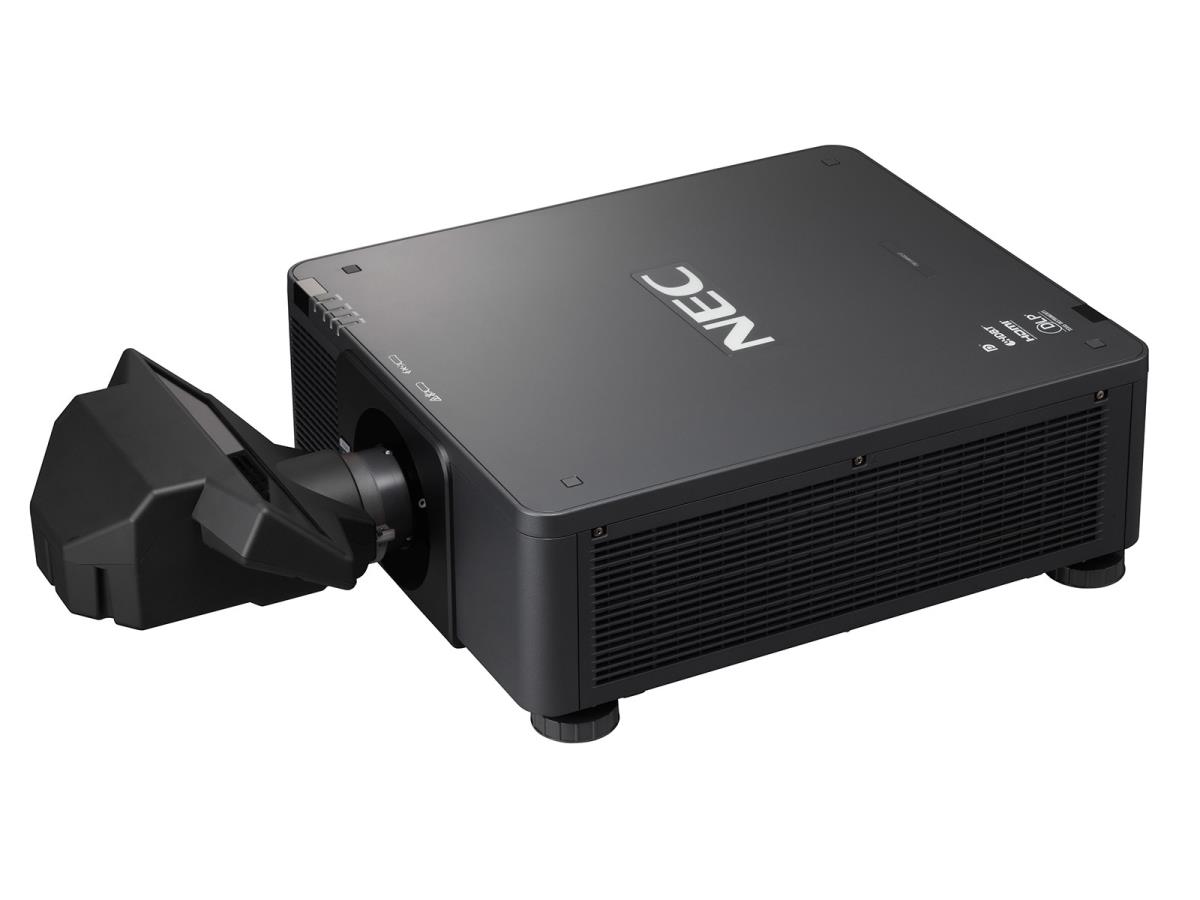

Superior cinema picture quality, especially on large screens is provided by 4k signal processing performance. Enhanced by an optional new ultra-short throw lens, this projector is also perfectly suited for Rental/Staging, Higher Education and large Corporate installations.
All in all a perfect custom-tailored solution, saving you valuable time and money for a secure investment into a brighter future.
Benefits

- Resource-saving - up to 20,000 h maintenance-free operation thanks to Laser Light Source technology, filter less dust shielded design & integrated liquid cooling system.
- Hassle-free Installation - wide zoom bayonet lens portfolio & support of third party lenses (ask your local trusted NEC partner) enables customised installations and easy replacement of current installation projectors.
- Outstanding Picture Quality - whole new visualisation experience with high brightness, up to 4K input signal and unique picture & colour processing technology based on the latest NEC scaler chip.
- Easy Way to Large Viewing - use the OPS slot for built-in players, HDMI-out signal loop-through, built-in signal splitter and edge blending capability to provide large presentation pictures.
- Maximum Flexibility - 360 degree installation in any direction, unique geometric adjustment, Picture in Picture and 3D support offer unrivalled installation capabilities for any application.
- Cost Saving Device Management - save effort whilst administrating all connected NEC devices from a centralised location by using the NaViSet Administrator 2 software tool.

Projector

Screen size compatibility

1270 - 7620 mm (50 - 300")

Projection distance

0.86 - 118 m

Projector brightness

10000 ANSI lumens

Projection technology

DLP

Projector native resolution

WUXGA (1920x1200)

Contrast ratio (typical)

10000:1

Native aspect ratio

16:10

Keystone correction, horizontal

-40 - 40°

Keystone correction, vertical

-40 - 40°

Light source

Service life of light source

20000 h

Lens system

Focus

Auto

Focal length range

25.7 - 33.7 mm

Aperture range (F-F)

1.64 - 1.86

Zoom capability

Y

Zoom type

Auto

Horizontal lens shift range

-15 - 15°

Vertical lens shift range

0.5 - -0.3°

Video

Analog signal format system

NTSC,NTSC 4.43,PAL,PAL 60,PAL M,PAL N,SECAM

Full HD

Y

3D

Y

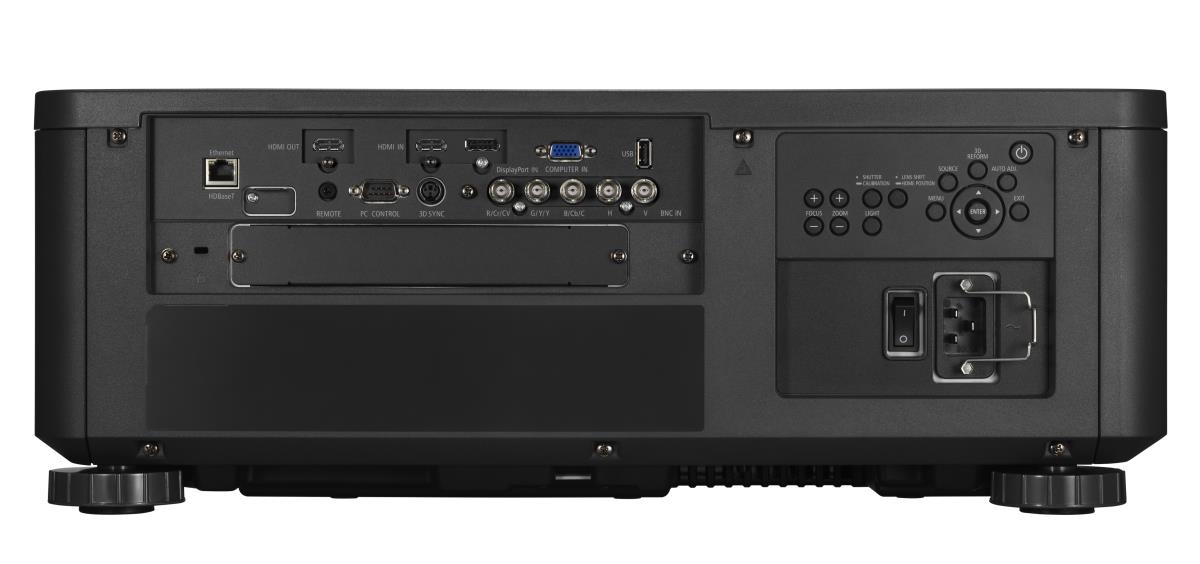

Ports & interfaces

DisplayPorts quantity

1

HDBaseT port

Y

USB 2.0 ports quantity

1

Audio (L/R) in

1

Serial interface type

RS-232

VGA (D-Sub) ports quantity

1

HDMI ports quantity

2

DVI port

N

BNC input ports

5

Network

Ethernet LAN

Y

Ethernet LAN (RJ-45) ports

1

Wi-Fi

N

Features

Noise level (economic mode)

35 dB

HDCP

Y

On Screen Display (OSD)

Y

Noise level

40 dB

Password protection

Y

Design

Product type

Large venue projector

Product colour

Black

Placement

Desktop, Ceiling

Display

Built-in display

N

Power

Power source

AC

Power consumption (typical)

1165 W

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Operational conditions

Operating temperature (T-T)

5 - 40 °C

Storage temperature (T-T)

-10 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Storage relative humidity (H-H)

0 - 90%

Certificates

Safety

CE; ErP; TUEV Type Approved

Weight & dimensions

Width

500 mm

Depth

577 mm

Height

211 mm

Weight

28 kg

Packaging content

Remote control included

Y

Remote control type

IR

Cables included

AC

Technical details

Sustainability certificates

RoHS

Other features

RS-232 ports

1
