Tv/monitor Wall Mount (full Motion) For 32in-75in Screens - Black

Introduction

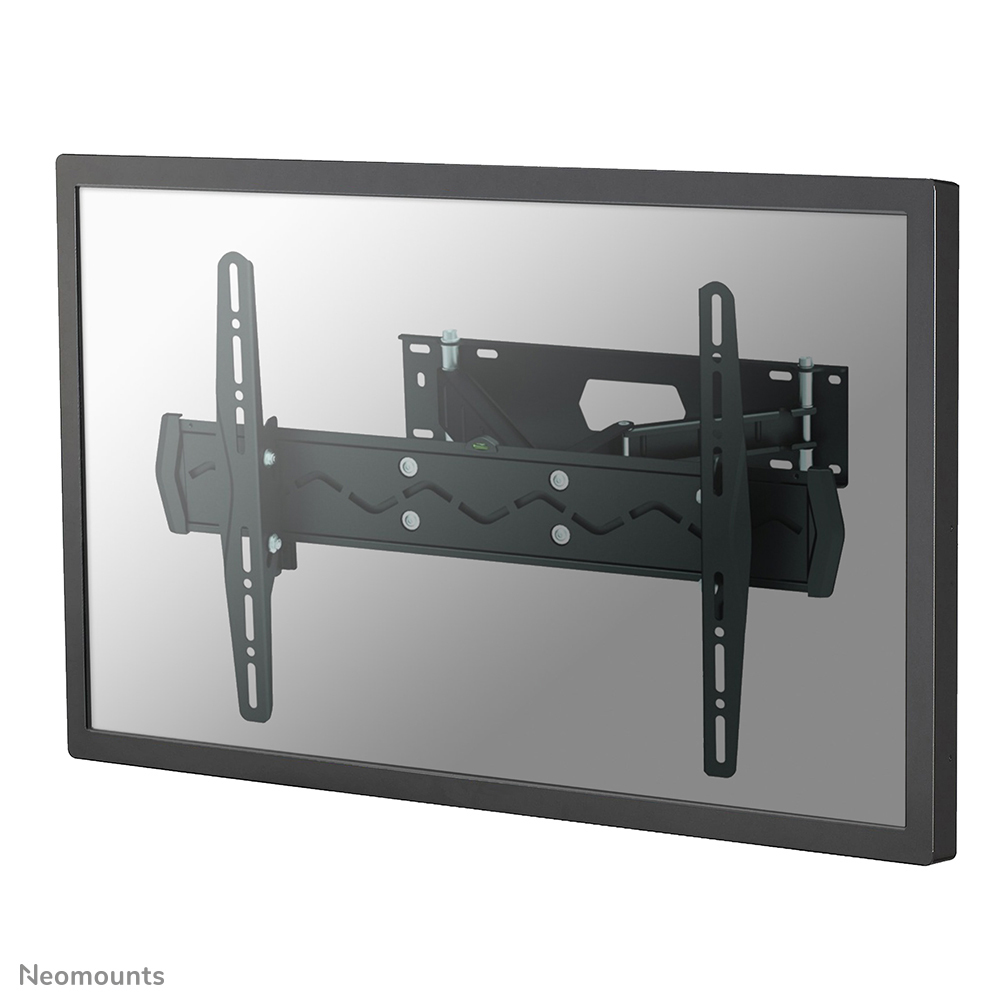

The Neomounts by Newstar wall mount, model LED-W560 is a full swing tilt- and swivel wall mount for flat screens up to 75" (191 cm). This mount is a great choice when you want the ultimate viewing flexibility with your flat screen TV. Effortless pull the display out from the wall, position it in almost any direction, turn it around corners and then smoothly return it to the wall when finished.

Neomounts by Newstars' tilt (20°) and swivel (110°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily depth adjustable from 9 to 38 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep living room, bedroom or home cinema installation nice and tidy.

Neomounts by Newstar LED-W560 has three pivot points and is suitable for screens up to 75" (191 cm). The weight capacity of this product is 50 kg each screen. The wall mount is suitable for screens that meet VESA hole pattern 75x75 to 600x400mm. Different hole patterns can be covered using Neomounts by Newstar VESA adapter plates.

Create a clean design ambiance for your flat screen TV in the living room, bedroom or home cinema.

All installation material is included with the product.

Mounting

Minimum screen size

81.3 cm (32")

Maximum weight capacity

50 kg

Maximum screen size

190.5 cm (75")

Minimum VESA mount

75 x 75 mm

Maximum VESA mount

600 x 400 mm

Number of displays supported

1

Mounting type

Wall

Ergonomics

Tilt angle range

0 - 20°

Swivel angle

110°

Angle of rotation

6°

Distance to the wall (max)

38 cm

Distance to the wall (min)

9 cm

Design

Product colour

Black

Technical details

Package net weight

6.88 kg

Packaging data

Package width

165 mm

Package depth

62 mm

Package height

745 mm

Logistics data

Master (outer) case width

760 mm

Master (outer) case length

180 mm

Master (outer) case height

206 mm

Master (outer) case gross weight

22.5 kg

Master (outer) case net weight

20.6 kg

Products per master (outer) case

3 pc(s)

Harmonized System (HS) code

HS83025000

Products per pallet (EU)

108 pc(s)

Other features

Country of origin

China
