STARTECH.COM
KVM Switch - 2 Port DisplayPort  - 4k60hz - USB 3.0 Hub

KVM Switch - 2 Port DisplayPort - 4k60hz - USB 3.0 Hub

Part Number:
SV231DPU34K
Language:
IN
 Without VATWith VAT
Base Price:€450,10€544,63
Recupel:+ €0,12+ €0,15
Total:€450,22€544,77

Introduction

KVM with USB | TAA Compliant | USB 3.0 Hub | DisplayPort 1.2 | Digital & Analog Audio

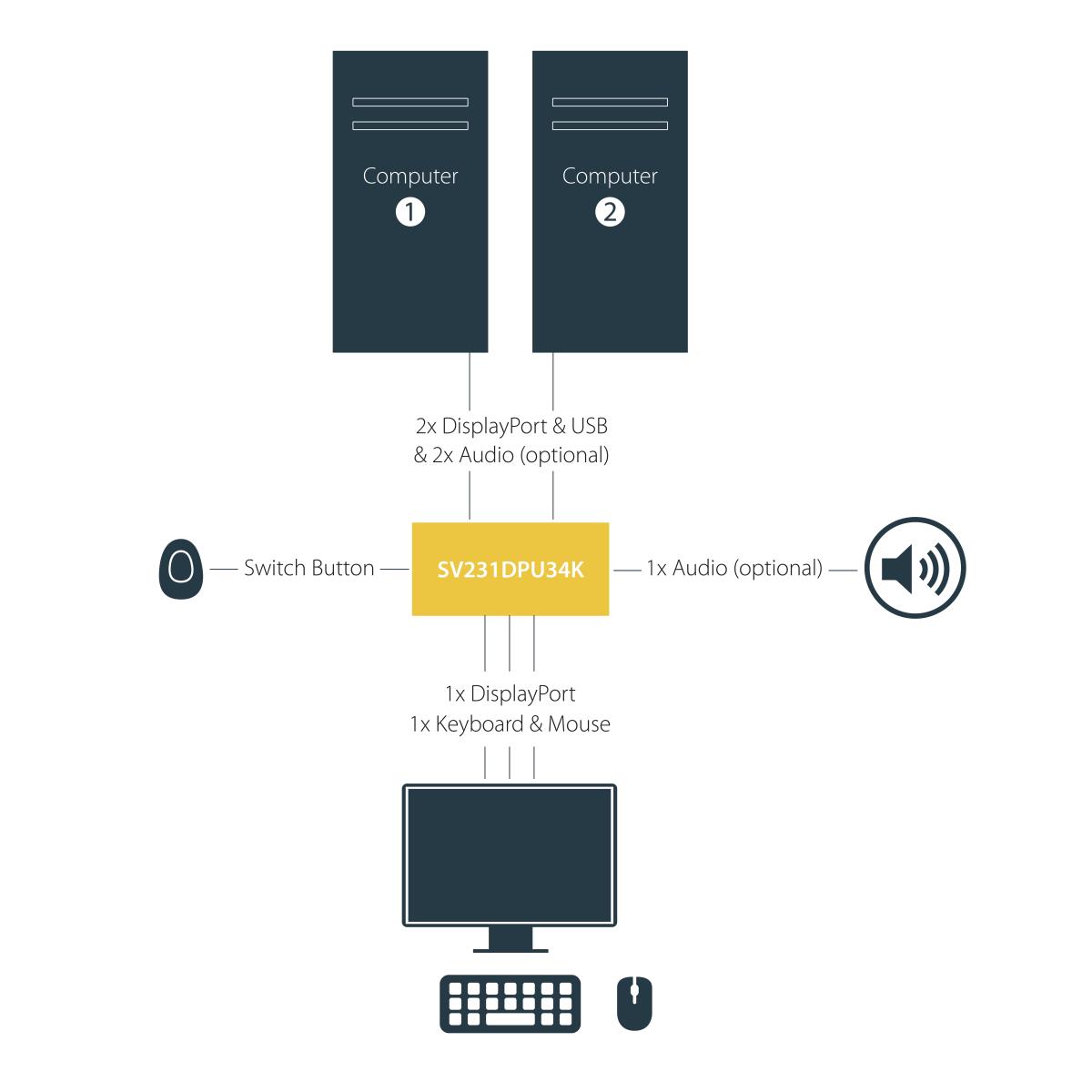

This 2-port KVM switch combines 4K (60Hz) digital display capabilities with control of two connected computers.

4K60 Picture and Full Audio Support

The DisplayPort KVM switch supports resolutions up to 4K at 60Hz. It drives one large monitor at the full 4K resolution or, using an MST adapter, can drive various DisplayPort multi-display setups totaling 4K if you need to maximize viewing space. With support for digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.

Integrated USB Hub

The integrated USB 3.0 hub shares two peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected to your host computer, eliminating the cost of duplicate devices such as printers and scanners.

Windows, Mac & Linux Compatible

While supporting Windows, this DP KVM switch is also compatible with Mac and Linux operating systems.

Easy to Operate

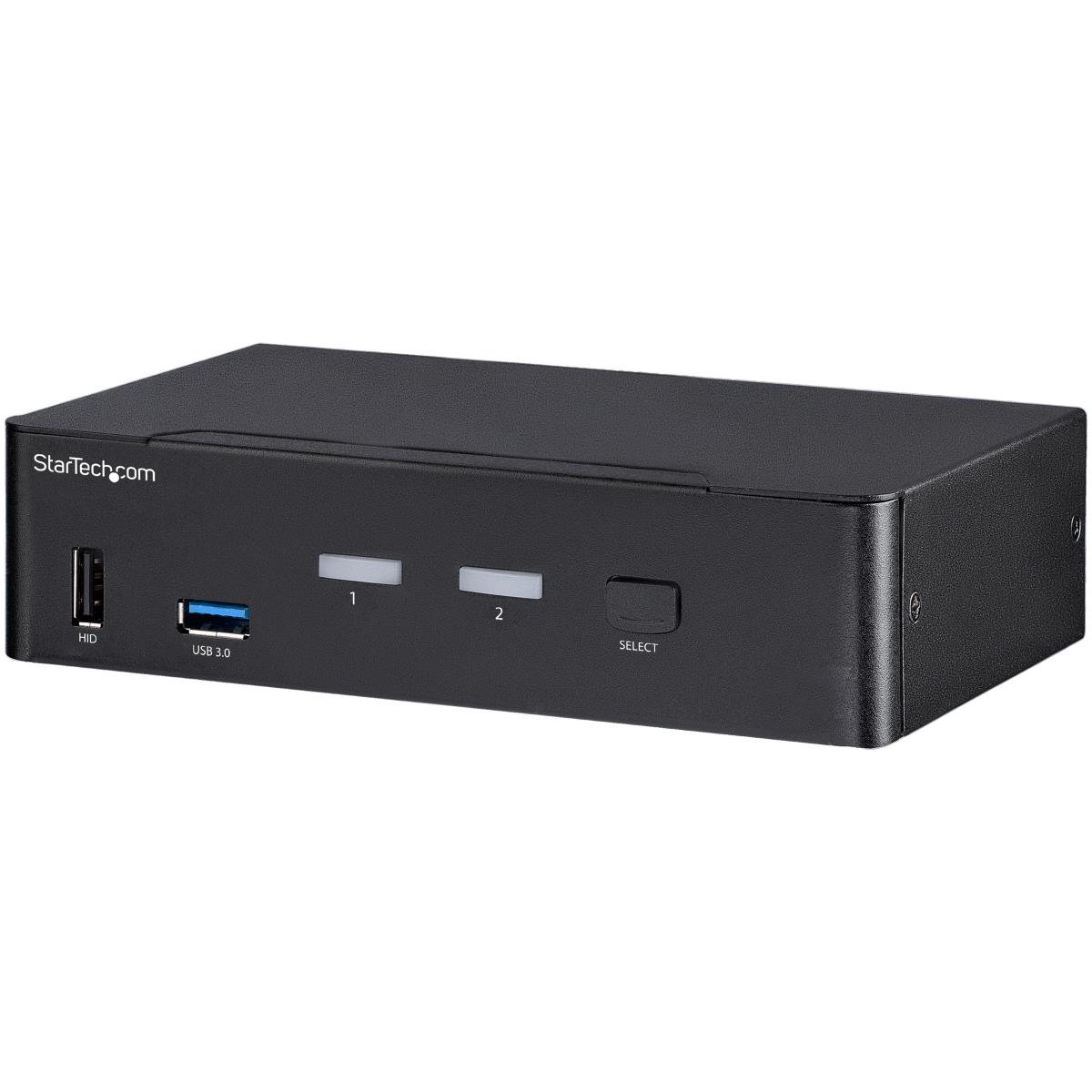

The front-panel pushbuttons make it easy to switch between systems and activate the auto scan feature. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.

StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice, and monitors. This 2-port DisplayPort KVM switch is backed by a 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- IMPROVE EFFICIENCY: 2 Port DisplayPort KVM Switch with hotkey and manual switching to access 2 computers with DP video and USB 3.0 hub; works with major brands including Dell, HP, and Lenovo
- 4K VIDEO QUALITY: DisplayPort KVM switch supports up to 4K at 60Hz on one large monitor
- Supports MST Passthrough for multiple displays

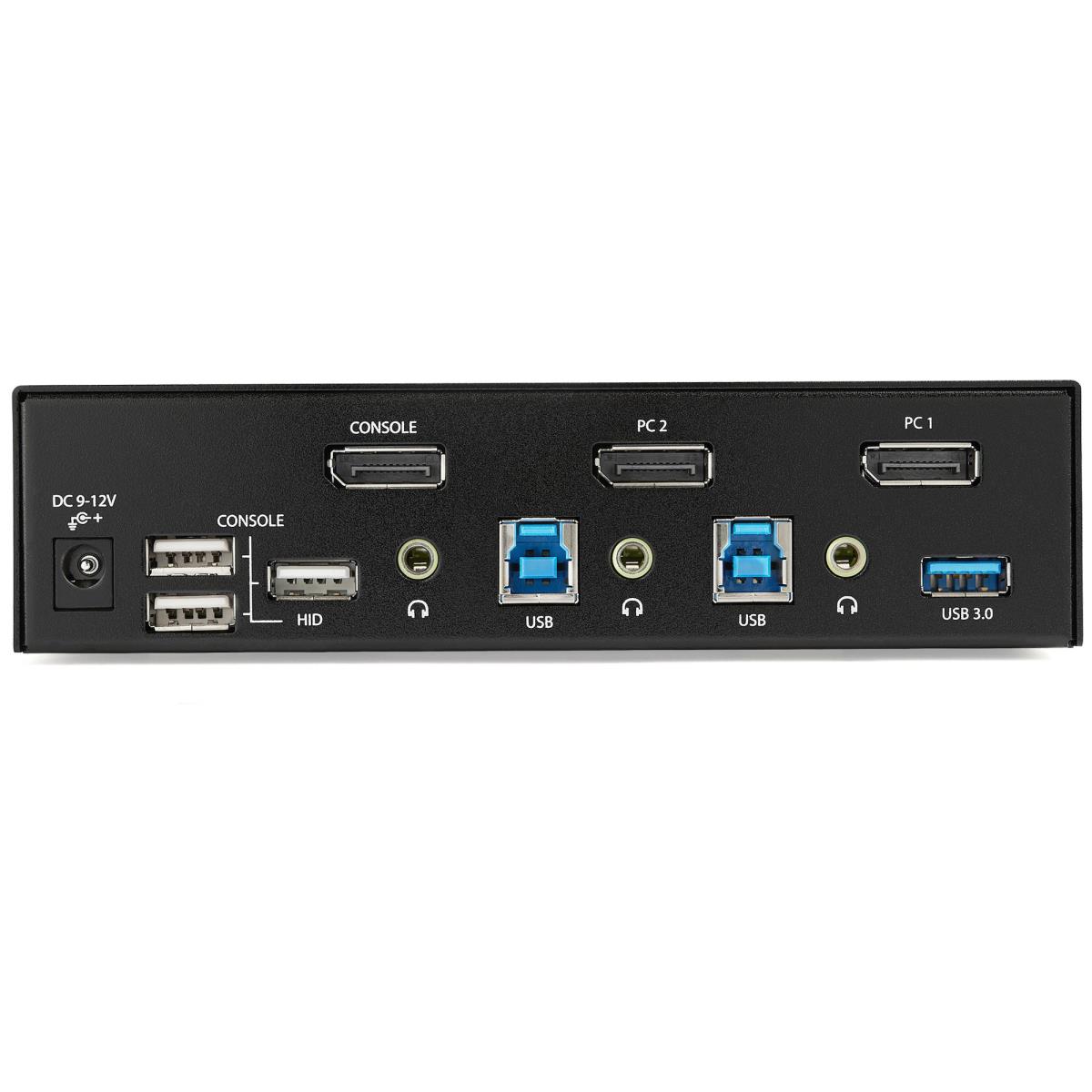

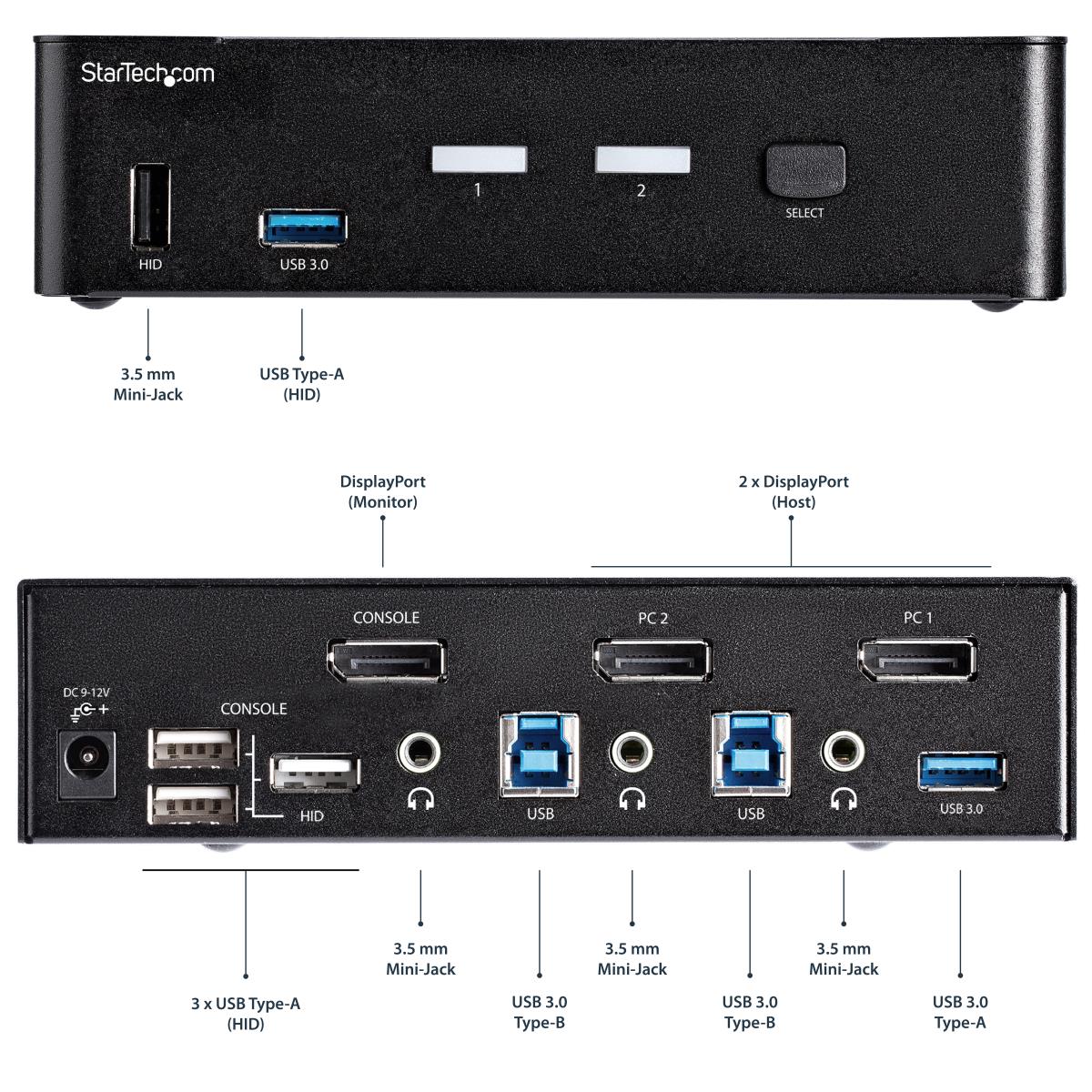

Ports & interfaces

Number of computers controlled

2

Keyboard port type

USB

Mouse port type

USB

Video port type

DisplayPort

HDCP

Y

DisplayPorts quantity

3

DisplayPort version

1.2

USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity

2

Console ports

3.5mm headphone, DisplayPort, USB A

Console USB ports quantity

6

USB connector type

USB Type-A, USB Type-B

Audio connections

Y

Headphone outputs

3

DC-in jack

Y

Performance

HD type

4K Ultra HD

Maximum resolution

3840 x 2160 pixels

Daisy chain

N

Number of users

1 user(s)

Audio channels

2.0

Design

Product colour

Black

Housing material

Steel

LED indicators

Y

Hot keys

Y

Mean time between failures (MTBF)

60000 h

Certification

CE, FCC, TAA, REACH

Display

Built-in display

N

On Screen Display (OSD)

N

Power

AC input voltage

100 - 240 V

Input current

0.6 A

Output voltage

12 V

Output current

1.5 A

Power consumption (typical)

18 W

External power adapter

Y

Power plug type

Type M

Compatible power plug types

AU, EU, JP, UK, US

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-10 - 60 °C

Operating relative humidity (H-H)

0 - 80%

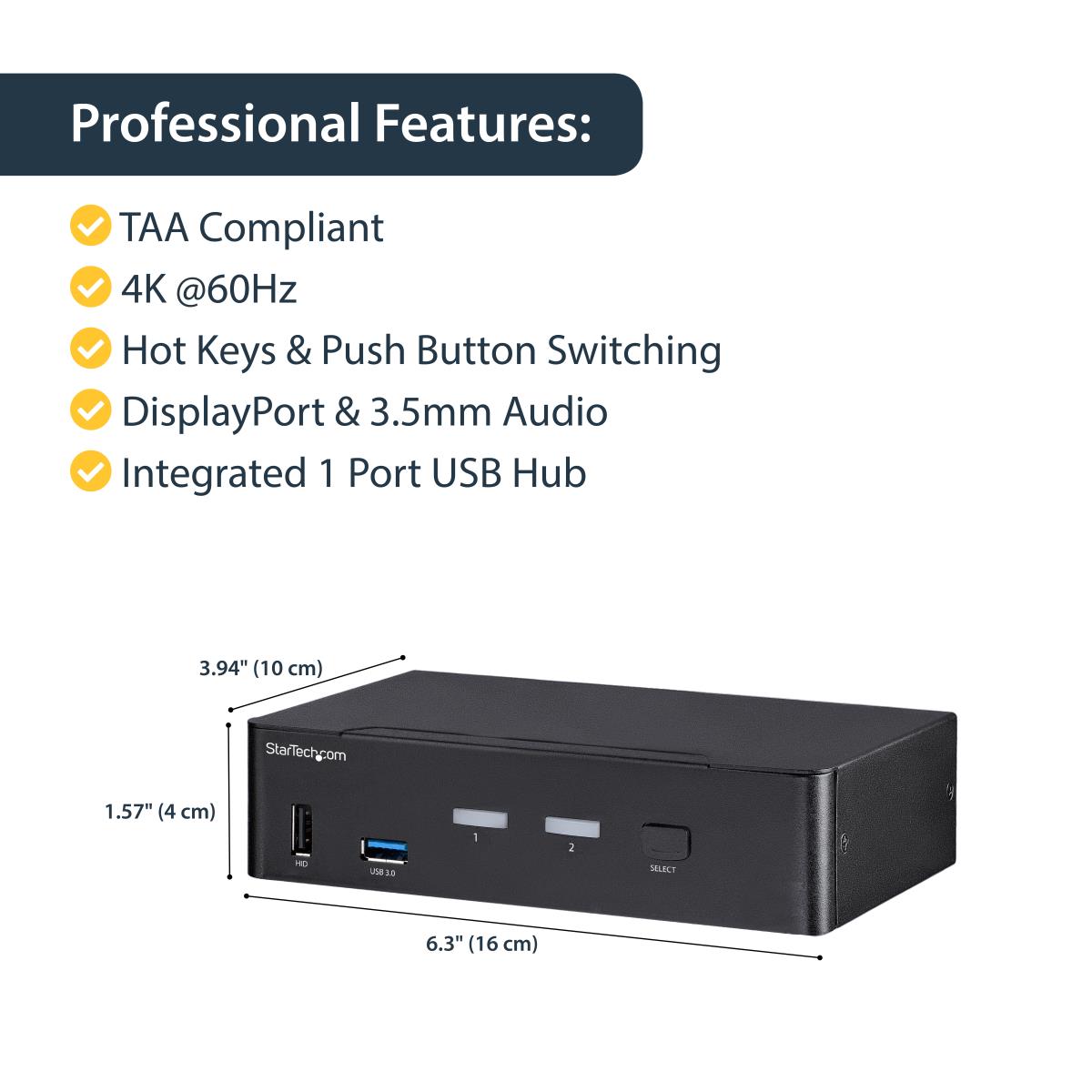

Weight & dimensions

Width

160 mm

Depth

100 mm

Height

40 mm

Weight

1.1 kg

Packaging data

Package width

189 mm

Package depth

238 mm

Package height

91 mm

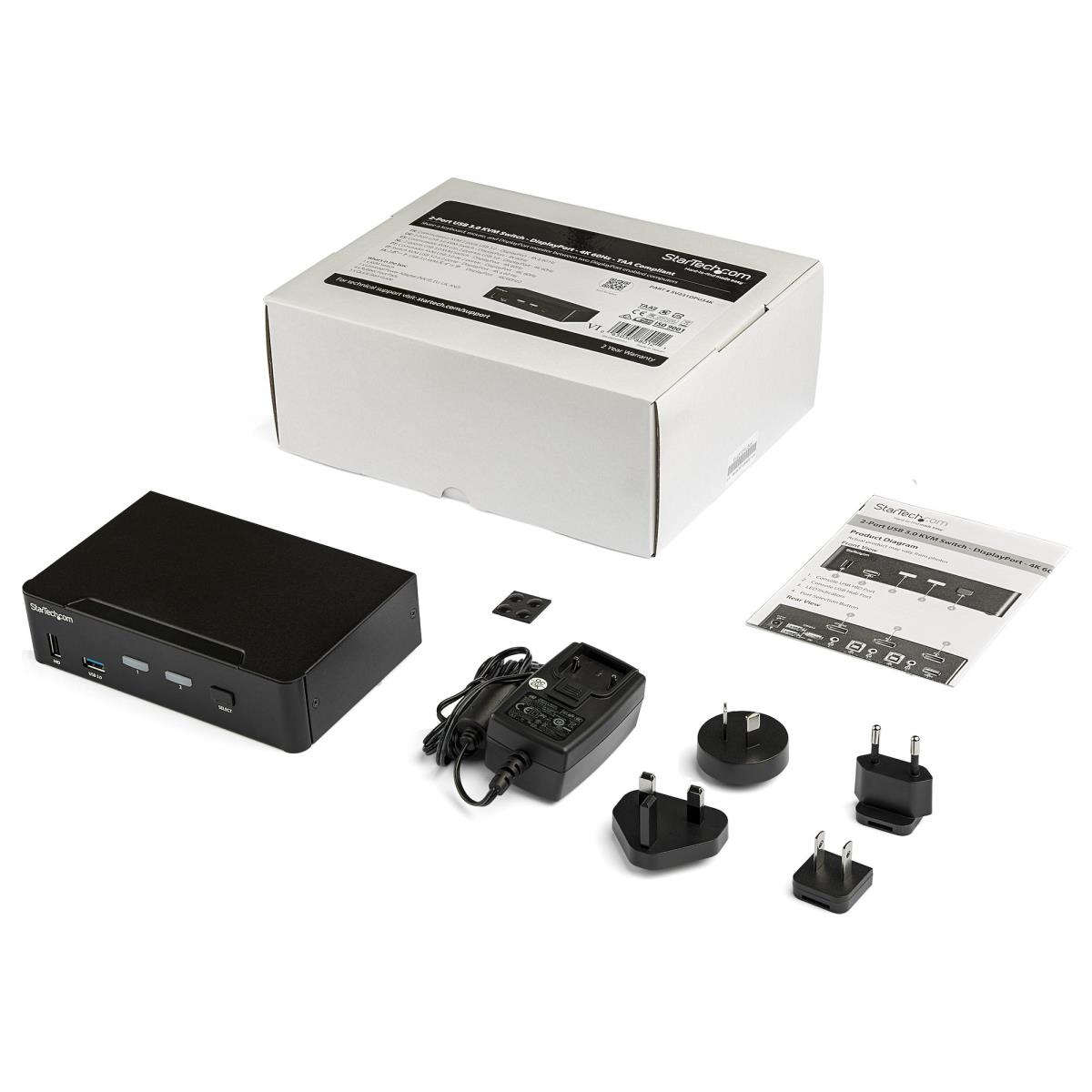

Packaging content

Quick installation guide

Y

AC adapter included

Y

Rubber feet

Y

Logistics data

Master (outer) case width

318 mm

Master (outer) case length

389 mm

Master (outer) case height

285 mm

Products per master (outer) case

6 pc(s)

Other features

IP control

N

Technical details

Sustainability certificates

RoHS
